    4.3 Inch Resistive Wide Temperature LCD SPI MCU Sunlight Readable

    Ask Lasest Price
    Brand Name : HOTHMI
    Model Number : TFT-H043A22WQIST8R40
    Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram
    Supply Ability : 99999
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    4.3 Inch Resistive Wide Temperature LCD SPI MCU Sunlight Readable

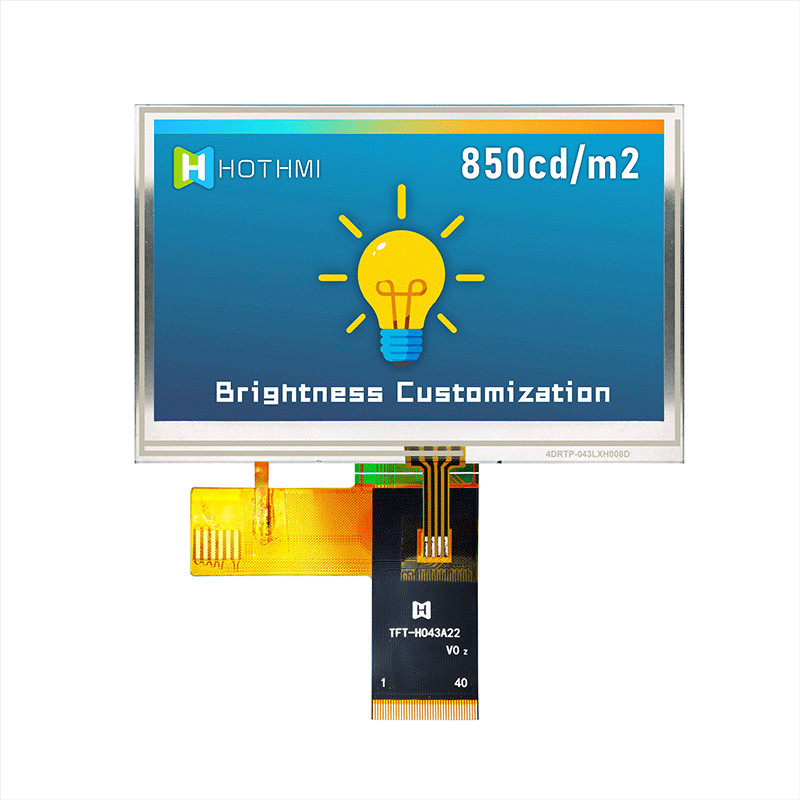

    4.3 Inch 480x272 Sunlight Readable Resistive TFT Display SPI-MCU/TFT-H043A22WQIST8R40

    TFT-H043A22WQIST8R40 | 4.3 inch Sunlight Readable LCD | 480x272 Pixels | Resistive Touch Screen


    This 480x272 resolution LCD TFT is a sunlight readable display with 8-bit or 16-bit parallel interface. This LCD display is equipped with a powerful backlight for visibility in bright lighting conditions, including direct sunlight. The LCD monitor also has a built-in T.B.D controller, FFC ZIF I/O connection, is RoHS compliant and has a 4-wire resistive touch screen.


    General Feature


    Item

    Standard Value

    Unit

    Display Size

    4.3

    Inch

    Number of Pixels

    480x272

    dots

    Active Area

    95.04x53.86mm

    mm

    Outline Dimension

    105.46x67.11x4.60mm

    mm

    Viewing Direction

    FULL O'clock

    -

    Interface

    Supports SPI/Dual SPI/Quard SPI and MCU 8-bit and 16-bit interfaces

    -

    Driver IC

    T.B.D-

    Driver Condition

    VCI=3.3V(Typ)

    V

    Backlight

    White LED/12 PCS/6 PCS serial 2 ways parallel

    -

    Touch Panel

    WHITOUT TOUCH

    CTP Driver IC

    --

    Driver Condition

    VDD=3.3V

    V

    TFT Operation AT

    -30 ~ +80

    TFT Storage AT

    -30 ~ +85


    TFT Pin Description


    Pin NO.

    Symbol

    Description

    1YU/INT

    Res touch control pins, not connected when not in use

    2XL/RTN

    Res touch control pins, not connected when not in use

    3YD/SDA

    Res touch control pins, not connected when not in use

    4XR/SCL

    Res touch control pins, not connected when not in use

    5CTP-VDD

    CTP Power supply

    6VCI

    Power supply

    7NC

    No connection

    8LEDK

    LED cathode

    9NC

    No connection

    10LEDA

    LED anode

    11NC

    No connection

    12

    SPI4W

    Standard SPI 3/4-wire Select.

    SPI4W="VCI", 4-wire SPI.SPI4W="GND", 3-wire SPI

    13NC

    No connection

    14IM1

    Interface selection, set by IM [1 ~ 0] pins

    15NC

    No connection

    16IM0

    Interface selection, set by IM [1 ~ 0] pins

    17 ~ 24DB[0 ~ 7]

    Parallel Interface Data Bus

    25 ~ 32DB[8 ~15]

    Parallel Interface Data Bus

    33RESX

    Global reset. Active low, Internal pull high

    34

    WR

    Write enable in the MCU parallel interface

    Clock input in SPI interface, pull high internally

    35

    SDA

    Serial communication data input and output, internal pull low.

    36CS

    Chip select, internal pull high


    37


    RD

    Read the enable input in the MCU parallel interface and pull it high internally.


    38


    D/CX

    Data or Command flag,Internal pull high.

    DCX = “VCI” is data;DCX = “GND” is command

    39 ~ 40GND

    Power supply ground


    All Products


    Reliability TestingCustomers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration.
    Glass CleanlinessCustomers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material.
    Bezel AppearanceBezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface.
    PCB AppearancePCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs.

    Search keyword: tft 4.3, tft 4.3", 4.3 tft lcd, 4.3" tft lcd, 4.3 inch tft lcd, tft lcd 4.3, 4.3 tft display, 4.3" tft display, 4.3 inch tft display, tft display 4.3, tft display 4.3"

    4.3 Inch Resistive Wide Temperature LCD SPI MCU Sunlight Readable4.3 Inch Resistive Wide Temperature LCD SPI MCU Sunlight Readable4.3 Inch Resistive Wide Temperature LCD SPI MCU Sunlight Readable4.3 Inch Resistive Wide Temperature LCD SPI MCU Sunlight Readable4.3 Inch Resistive Wide Temperature LCD SPI MCU Sunlight Readable4.3 Inch Resistive Wide Temperature LCD SPI MCU Sunlight Readable4.3 Inch Resistive Wide Temperature LCD SPI MCU Sunlight Readable4.3 Inch Resistive Wide Temperature LCD SPI MCU Sunlight Readable4.3 Inch Resistive Wide Temperature LCD SPI MCU Sunlight Readable


    TFT Custom Solutions

    4.3 Inch Resistive Wide Temperature LCD SPI MCU Sunlight Readable

    Cable Customization

    Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.


    4.3 Inch Resistive Wide Temperature LCD SPI MCU Sunlight Readable

    Touchscreen Add-on

    Enhance your user experience with capacitive or resistive touch screen technology. We’ll adjust the glass thickness or shape of the touch panel so it’s a perfect fit for your design.


    4.3 Inch Resistive Wide Temperature LCD SPI MCU Sunlight Readable

    Interface Customization

    Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HI, USB, SPI, VGA and more into your display to achieve your design goals.


    4.3 Inch Resistive Wide Temperature LCD SPI MCU Sunlight Readable

    Cover Glass

    Equip your display with a custom cut cover glass to improve durability. Choose from a variety of cover glass thicknesses and get optical bonding to protect against moisture and debris.
