4.3 Inch 480x272 MCU Wide Temperature LCD IPS Display Module

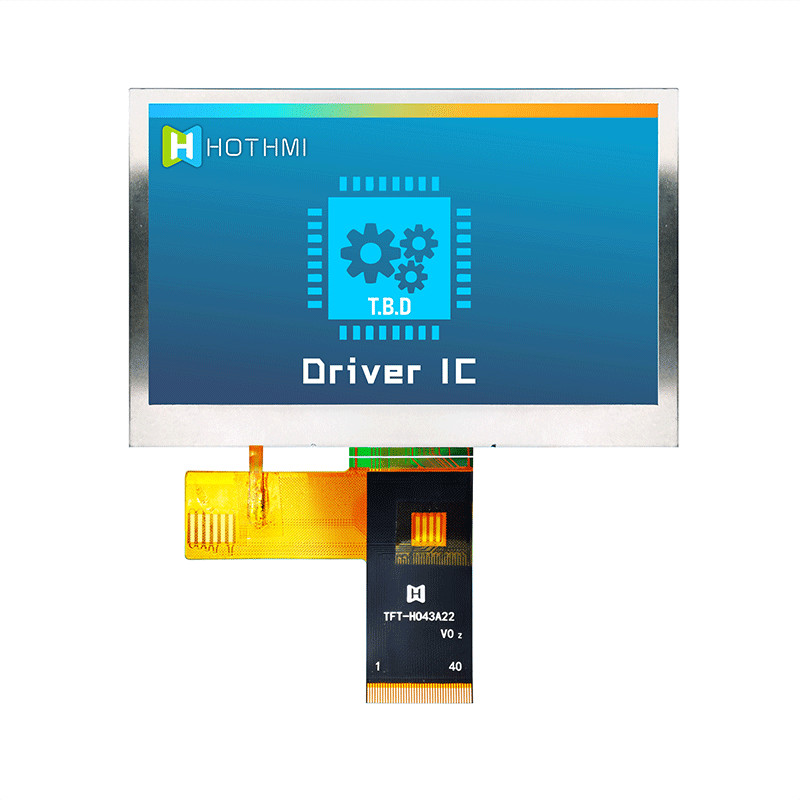

4.3 Inch 480x272 Sunlight Readable SPI-MCU TFT Display Module/TFT-H043A22WQISTKN40

TFT-H043A22WQISTKN40 | 4.3 inch sunlight readable LCD | 480x272 pixels | SPI+MCU interface | FFC connection | optional touch screen

This 480x272 resolution LCD TFT is equipped with a powerful backlight for visibility in bright lighting conditions including direct sunlight. The sunlight-readable display has a 3/4-wire SPI interface and provides a complete best view. This 3.3V LCD has a built-in T.B.D controller, FFC connection, RoHS Compliant, and optional touch screen.

General Feature

Item	Standard Value	Unit
Display Size	4.3	Inch
Number of Pixels	480(H)3(RGB) 272(V)	dots
Active Area	95.04(H)* 53.86(V)	mm
Outline Dimension	105.46(H) * 67.11(V) * 3.00(D)<TFT>	mm
Viewing Direction	FULL O'clock	-
Interface	Supports SPI/Dual SPI/Quard SPI and MCU 8-bit and 16-bit interfaces	-
Driver IC	T.B.D	-
Driver Condition	VCI=3.3V(Typ)	V
Backlight	White LED/12 PCS/6 PCS serial 2 ways parallel	-
Touch Panel	WHITOUT TOUCH
CTP Driver IC	-	-
Driver Condition	VDD=3.3V	V
TFT Operation AT	-30 ～ +80	℃
TFT Storage AT	-30 ～ +85	℃

TFT Pin Description

Pin NO.	Symbol	Description
1	YU/INT	Res touch control pins, not connected when not in use
2	XL/RTN	Res touch control pins, not connected when not in use
3	YD/SDA	Res touch control pins, not connected when not in use
4	XR/SCL	Res touch control pins, not connected when not in use
5	CTP-VDD	CTP Power supply
6	VCI	Power supply
7	NC	No connection
8	LEDK	LED cathode
9	NC	No connection
10	LEDA	LED anode
11	NC	No connection
12	SPI4W	Standard SPI 3/4-wire Select. SPI4W="VCI", 4-wire SPI.SPI4W="GND", 3-wire SPI
13	NC	No connection
14	IM1	Interface selection, set by IM [1 ～ 0] pins
15	NC	No connection

16	IM0	Interface selection, set by IM [1 ～ 0] pins
17 ～ 24	DB[0 ～ 7]	Parallel Interface Data Bus
25 ～ 32	DB[8 ～15]	Parallel Interface Data Bus
33	RESX	Global reset. Active low, Internal pull high
34	WR	Write enable in the MCU parallel interface Clock input in SPI interface, pull high internally
35	SDA	Serial communication data input and output, internal pull low.
36	CS	Chip select, internal pull high
37	RD	Read the enable input in the MCU parallel interface and pull it high internally.
38	D/CX	Data or Command flag,Internal pull high. DCX = “VCI” is data；DCX = “GND” is command
39 ～ 40	GND	Power supply ground
