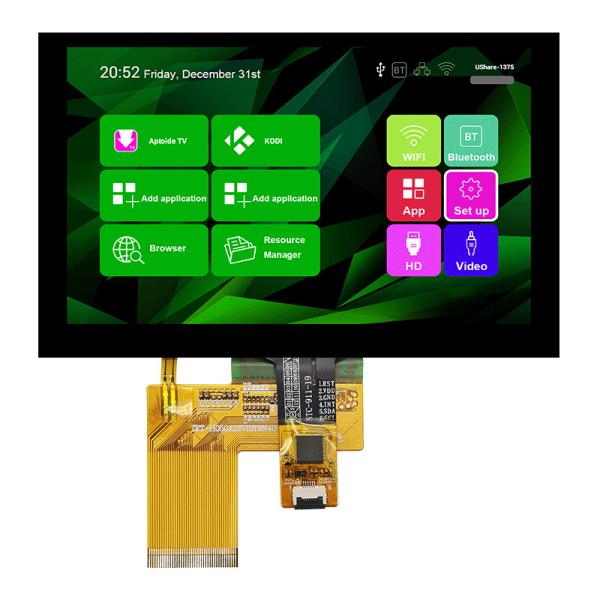

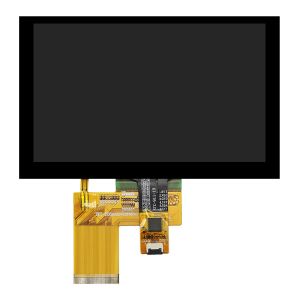

5 Inch CTP Touch Screen TFT LCD Module IC GT911/800x480 Dots/TFT-H050A1SVIST4C40

Product parameters
Display Content - 800x480
Dimensions (mm) - 120.7x75.8x3.0
Viewport Window Size - 5.0 inch
Display Size - 5.0 inch
Effective size (mm) - 108.0x64.8
Perspective - Full Perspective
Connection method PIN number - 40PIN0.5 connected
Working temperature - (-30~80℃)
Supply Voltage - 3.3V

Describe
HOTLCD display 5 inch standard high resolution TFT model. The size is between our standard 4.3" and standard 5.7" TFT modules, but the H050A1 has better resolution. The resolution of the H050A1 is 800x480. The H050A1 monitor is ideal for customers designing new projects that require higher resolution or a competitive price. The 5-inch capacitive touch screen TFT LCD H050A1SVIST4C40 has an external dimension of 120.7 x 75.8 mm and an AA dimension of 108 x 64.8 mm. The H050A1SVIST4C40 module can operate from –30°C to +80°C; its storage temperature range is -30°C to +80°C. Product application - printers, copiers, smart home, vehicle instrumentation.

Search keyword: tft 5, tft 5", 5 tft lcd, 5" tft lcd, 5 inch tft lcd, tft lcd 5, 5 tft display, 5" tft display, 5 inch tft display, tft display 5, tft display 5", 5.0 tft lcd,5"tft

TFT-H050A1SVIST4C40.pdf
