    Custom STN 8X2 Character LCD Display Yellow Green 16PIN Standard COB

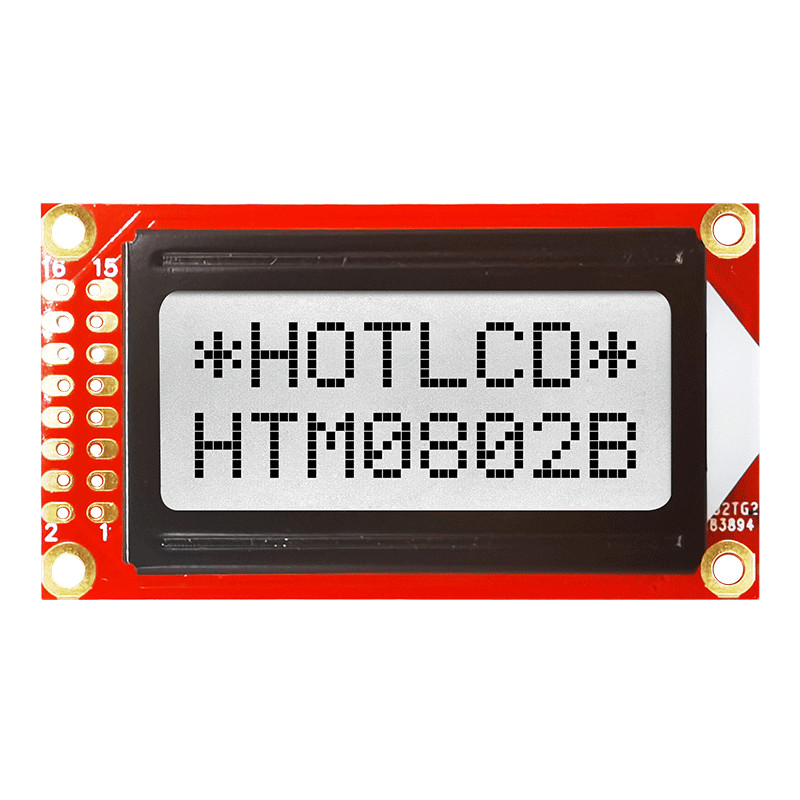

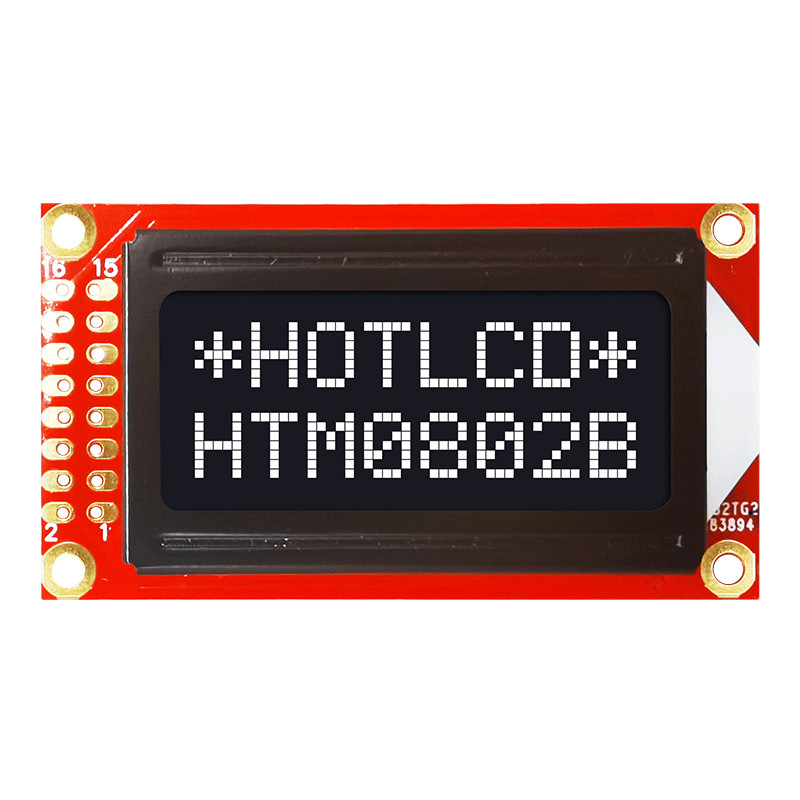

    8X2 Character LCD | STN+ Yellow/Green Display with Yellow/HTM0802B


    Quick detail


    Product Type - Standard COB Character LCM
    Display content - 8X2 characters
    Dimensions (mm) - 58.0X32.0X10.3
    Viewport window size (mm) - 38.0X16.0
    Display size (mm) - 27.81X11.5
    Dot Spacing mm - 0.6X0.7
    Product Application - Instrumentation
    Viewing Angle - 6H
    Backlight Type or Brightness - Yellow Green
    Connection method PIN number - 16PIN
    Interface - MCU/8bit
    Working temperature - (-10~60℃)
    Supply Voltage - 5.0v


    Interface Pin function


    Pin No.Pin NameFunction
    1VSS-Power Supply
    2VDD-Positive Power Supply
    3V0-LCD Contrast Reference Supply

    4


    RS1-

    0.Instruction register busy flag address Counter(for read)

    1.Data register


    5

    -

    R/W

    Select read or write 1: Write

    1. Read

    6E-Starts data read/write
    7D B 0

    Data Bus Lines-8pin

    8D B 1
    9D B 2
    10D B 3
    11D B 4
    12D B 5
    13D B 6
    14D B 7
    15B LA+Backlight Positive
    16BLK--Backlight Negative
