    4.3 Inch Custom Display Solutions 800x480 Resistive Touch Panel

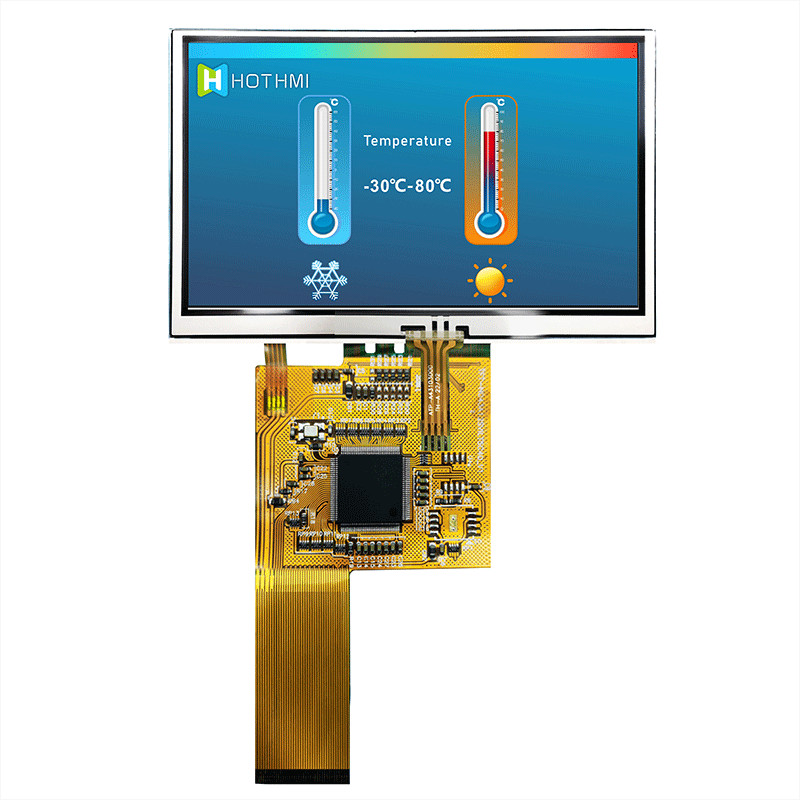

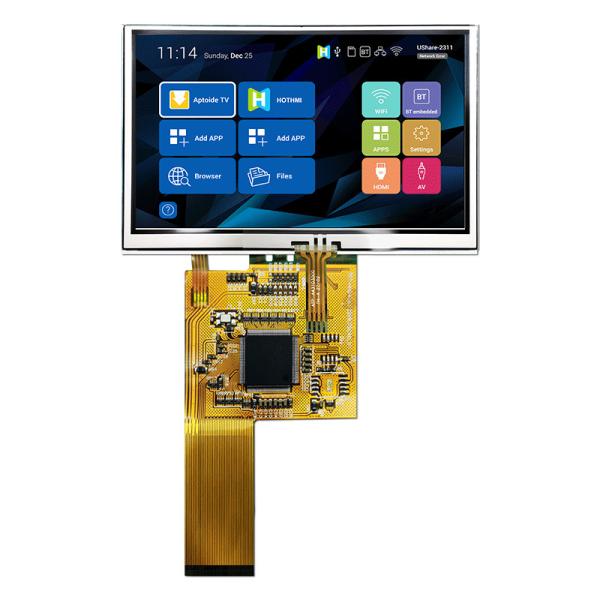

    4.3 Inch TFT LCD Display/Resistive Touch Panel/800x480 Dots/TFT-H043A12SVILT4R40


    Product parameters


    Display Size - 4.3"
    Product Application - Instrumentation
    Perspective - Full Perspective
    Backlight type or brightness - 400cd/m2
    Connection method PIN number - FPC-40PIN
    Interface - MCU 8/16 Bit
    Operating temperature - (-20~70℃)
    Supply Voltage - 3.3V
    Driver IC Model - ST7262


    General Feature:


    ItemStandard ValueUnit
    Display Size4.3Inch
    Number of Pixels800(H)*3(RGB)* 480(V)dots
    Active Area95.040(H)* 53.856(V)mm
    Outline Dimension

    105.42(H) * 67.07(V) * 4.20(D) <TFT+RTP>

    mm
    Viewing DirectionFull O'clock-
    TFT InterfaceMCU 8 bit/SPI/I2C-
    TFT Driver ICST7262+HT7381-
    TFT Driver ConditionVCI=3.3V(Typ)V
    Backlight-1White LED/10 PCS/5 LEDs in series, 2 in parallel-
    Touch PanelWith RTP-
    CTP Driver IC-
    CTP Driver ConditionVDD=3.3V(Typ)V
    Operation Temperature-30 ~ 80
    Storage Temperature-30 ~ 85

    TFT Pin Description


    Pin NO.SymbolDescription
    1~2LEDKLED Cathode
    3~4LEDALED Anode
    5~6GNDGround
    7~8VCIDigital Power
    9~11PSM[2~0]MCU interface settings.

    12


    RESX

    Reset input signal

    When RESX = 0 and maintain the length of 256 clock cycles, chip will generate a reset action.


    13


    CS

    Chip select signal.

    If the MCU interface is set to the serial mode, this pin can be set to GPIB [0], internal pull-up resistor.


    14


    RD

    Read control signals.

    In parallel mode of 8080, this pin is RD# signal, RD#=0, which means MCU reads data or status read cycle to the chip.

    In the 6800 parallel mode, this pin is the EN signal, EN=1, indicating that the MCU's control of the chip is in the enable cycle.

    If the MCU interface is set to serial mode, this pin can be set to GPIB[1] with an internal pull-up resistor.


    15


    WR

    write control signal

    In 8080 parallel port mode, this pin is the WR# signal, WR#

    = 0, representing the MCU A command write or data write cycle is performed on the chip.

    In 6800 parallel port mode, this pin is RW# signal, RW# = 1, representing MCU Data read or status read cycle is performed on the chip. RW# = 0, representing The MCU performs a command write or data write cycle to the chip.

    If the MCU interface is set to serial mode, this pin can be set to GPIB[2],There are internal pull-up resistors.


    16


    RS/A0

    command or data select signal

    A0 = 0, which means that the MCU reads the status of the chip or the command write cycle.

    A0 = 1, which means the MCU reads or writes data to the chip.


    17


    WAIT

    waiting for output signal

    When the MCU reads and writes the chip, if the chip is busy, it turns WAIT into a low level to notify the MCU to enter the waiting period.


    18~25


    DB[0~7]

    • MCU data bus
    • If set to serial port mode, these data buses will be used as serial port signals. Please refer to Table 3-2 "MCU serial port signal" description.
    26~33NCNot Connect

    34


    INT

    Interrupt output signal

    When the set interrupt condition occurs, this pin becomes a low level, which is used to generate an interrupt output to inform the MCU.

    35NCNot Connect
    36GNDGround
    37RTP_XRResistive TP function pin,If not used, let this pin open.
    38RTP_YDResistive TP function pin,If not used, let this pin open.
    39RTP_XLResistive TP function pin,If not used, let this pin open.
    40RTP_YUResistive TP function pin,If not used, let this pin open.
