7.8 Inch High Brightness ST7703 TFT LCD Display/400x1280 Dots/TFT-H078A1ZAIST7N40

Product parameters

Display Size - 7.8 inch
Effective Size (mm) - 190.08x59.40
Perspective - Full Perspective

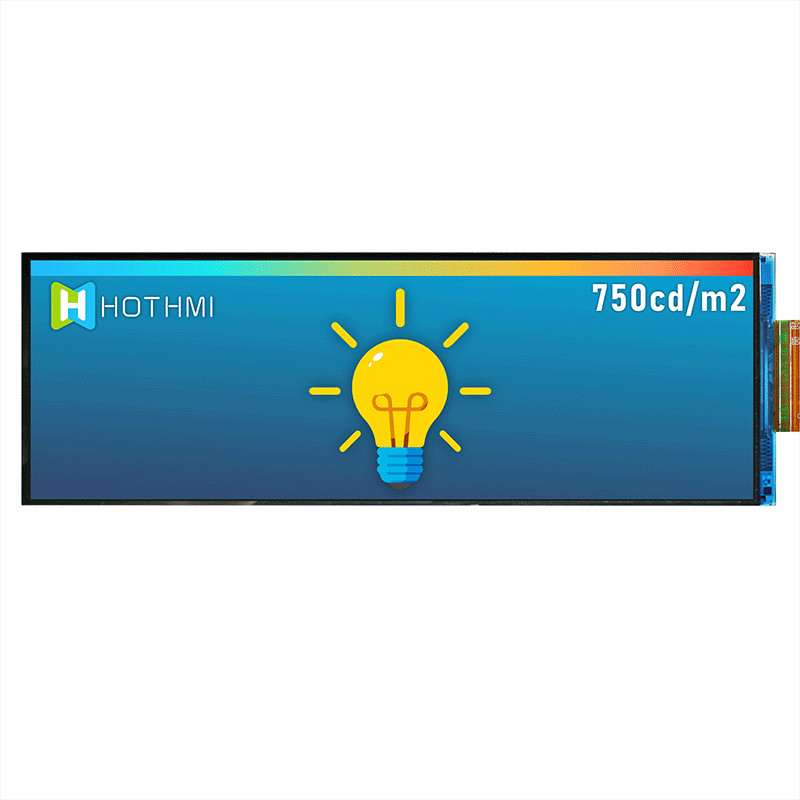

Backlight type or brightness - 700cd/m2
Connection method PIN number - 40PIN
Interface - MIPI

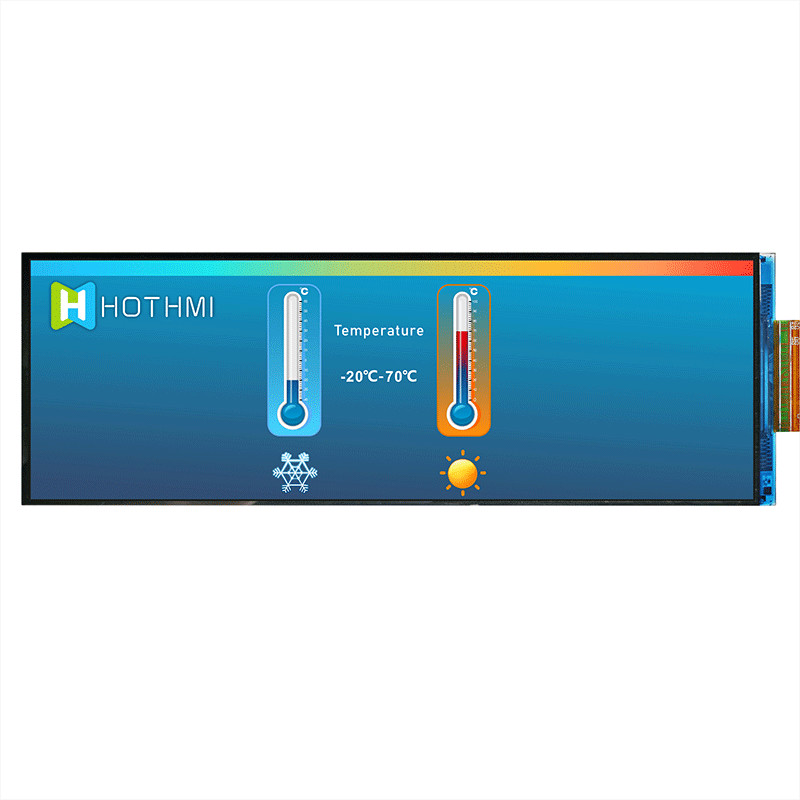

Operating temperature - (-20~70℃)
Supply Voltage - 3.3V

General Feature

TFT Pin Description

Product Description

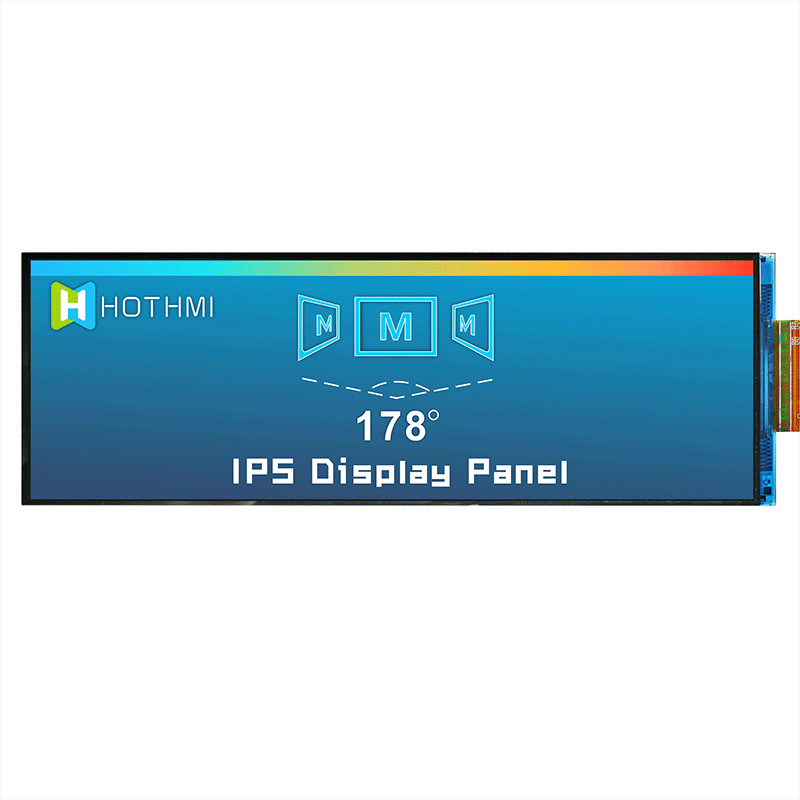

TFT-H078A1ZAISTN40 is a 7.84-inch TFT LCD module with IPS panel technology. This TFT-LCD has a resolution of 400 x 1280 pixels. The TFT-H078A1ZAISTN40 module has built-in ST7703 driver IC, supports MIPI interface, the contrast ratio is 700 (typical value), and the module brightness is 700 nits (typical value). H078A1 adopts IPS panel technology, the viewing angle is wider than TN glass, the left: 80 / right: 80 / top: 80 / bottom: 80 degrees, the color is vivid, and the high-quality picture is saturated and natural. The driving voltage of the H078A1 module is 3.3V, normal black/transmissive LCD, matte glass, and the screen aspect ratio is 16:9. The operating temperature of this module is -20°C to +70°C, and the storage temperature is -30°C to +80°C. If the customer's product application needs to use high-brightness TFT, the TFT-H078A1ZAISTN40 module can be selected, and its module brightness is 700 nits (typ.).

Search keyword: tft 7.8, tft 7.8", 7.8 tft lcd, 7.8" tft lcd, 7.8 inch tft lcd, tft lcd 7.8, 7.8 tft display, 7.8" tft display, 7.8 inch tft display, tft display 7.8, tft display 7.8"

TFT-H078A1ZAIST7N40.pdf
