    800x480 LVDS 4.3 Inch TFT Display Sunlight Readable TFT-H043A13SVIST6N40

    Ask Lasest Price
    Brand Name : HOTHMI
    Model Number : TFT-H043A13SVIST6N40
    Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram
    Supply Ability : 99999
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    800x480 LVDS 4.3 Inch TFT Display Sunlight Readable TFT-H043A13SVIST6N40

    4.3-Inch Sunlight-Readable LVDS TFT Display/800x480 Pixels/TFT-H043A13SVIST6N40

    Product parameters

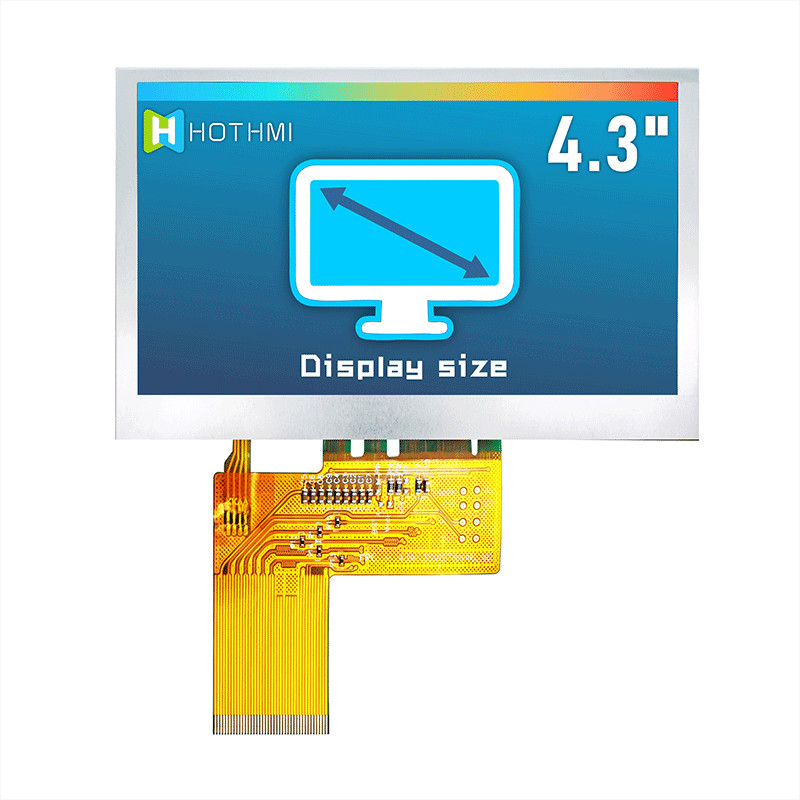

    Display Size - 4.3 inches
    Perspective - Full Perspective

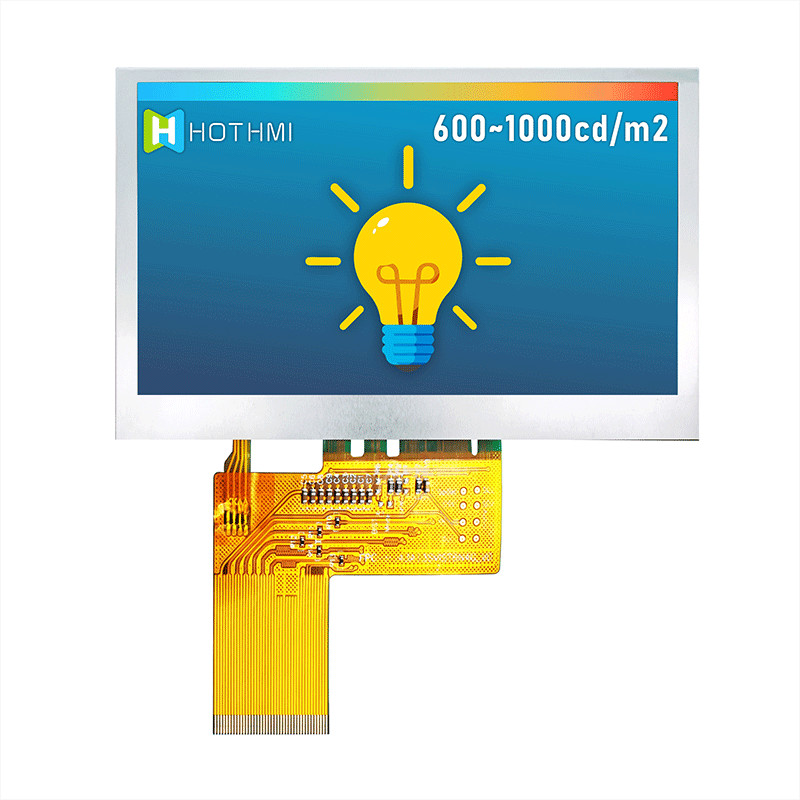

    Backlight brightness - 600~1000cd/m2
    Connection method PIN number - FPC-40PIN
    Interface method - LVDS
    Special Instructions - LVDS 3L/4L
    Working temperature - -20~70℃

    General Feature

    Item

    Standard Value

    Unit

    Display Size4.3Inch

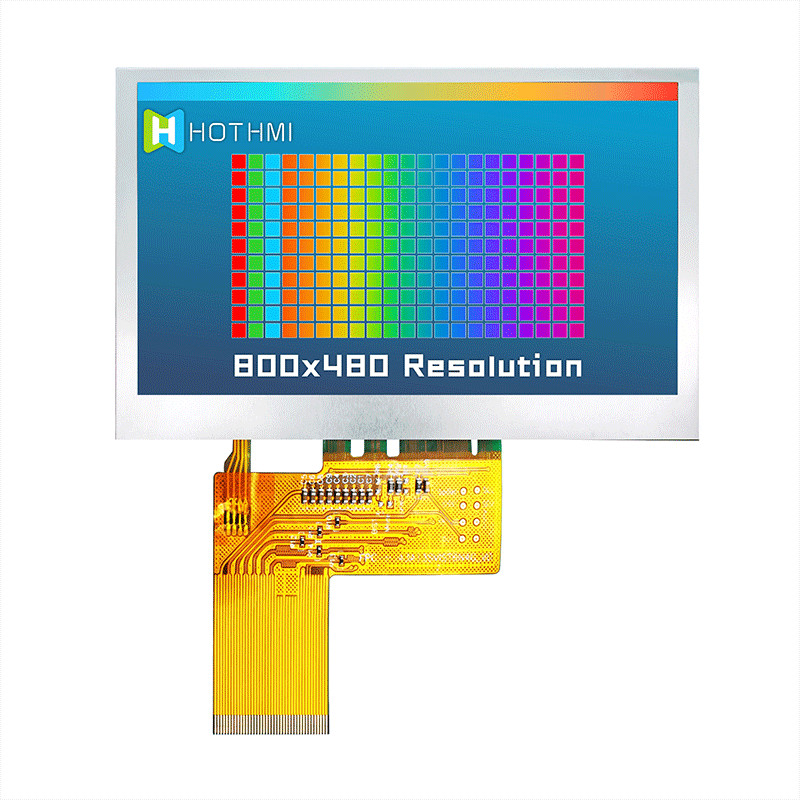

    Number of Pixels800(H)x3(RGB)*480(V)dots
    Active Area95.04(H) * 53.856(V)mm
    Outline Dimension

    105.50(H) * 67.20(V) * 2.95(D) <600 cd/m2>

    105.50(H) * 67.15(V) * 3.05(D) <1000 cd/m2>

    mm
    Viewing DirectionFull O’Clock-
    Interface

    18/24 bit LVDS

    (Default 24 bit)

    -
    Driver ICST7262-
    Driver ConditionVCI=3.3VV
    Backlight-1

    White LED/10 PCS/5 PCS serial 2 ways parallel

    -
    Backlight-2

    White LED/10 PCS/5 PCS serial 2 ways parallel

    -
    Touch PanelWhitout TP Whit RTP¨ Whit CTP-
    CTP Driver IC- - --
    CTP Driver Condition- - -V
    Operation Temperature-40 ~ 80

    Storage Temperature-40 ~ 80


    TFT Pin Description

    Pin NO.SymbolDescription
    1NCOpen Pin
    2,3VCIAnalog Power(3.1 ~ 3.6 V,3.3V Type)
    4NCOpen Pin
    5RESXGlobal reset pin. Active low to enter reset state.
    6STBYBStandby mode,Normally operation pull high.
    7GNDGround
    8D0NLVDS data input pins
    9D0PLVDS data input pins
    10GNDGround
    11D1NLVDS data input pins
    12D1PLVDS data input pins
    13GNDGround
    14D2NLVDS data input pins
    15D2PLVDS data input pins
    16GNDGround
    17DCKNLVDS clock input pins.
    18DCKPLVDS clock input pins.
    19GNDGround
    20D3NLVDS data input pins
    21D3PLVDS data input pins
    22GNDGround
    23,24NCOpen Pin
    25GNDGround
    26 ~ 29NCOpen Pin
    30GNDGround
    31,32LEDKBacklight cathode
    33L/RHorizontal scan direction control pin.
    34U/DVertical scan direction control pin.
    35 ~ 38NCOpen Pin
    39,40LEDABacklight anode

    Search keyword: tft 4.3, tft 4.3", 4.3 tft lcd, 4.3" tft lcd, 4.3 inch tft lcd, tft lcd 4.3, 4.3 tft display, 4.3" tft display, 4.3 inch tft display, tft display 4.3, tft display 4.3"

    800x480 LVDS 4.3 Inch TFT Display Sunlight Readable TFT-H043A13SVIST6N40800x480 LVDS 4.3 Inch TFT Display Sunlight Readable TFT-H043A13SVIST6N40800x480 LVDS 4.3 Inch TFT Display Sunlight Readable TFT-H043A13SVIST6N40800x480 LVDS 4.3 Inch TFT Display Sunlight Readable TFT-H043A13SVIST6N40800x480 LVDS 4.3 Inch TFT Display Sunlight Readable TFT-H043A13SVIST6N40800x480 LVDS 4.3 Inch TFT Display Sunlight Readable TFT-H043A13SVIST6N40800x480 LVDS 4.3 Inch TFT Display Sunlight Readable TFT-H043A13SVIST6N40800x480 LVDS 4.3 Inch TFT Display Sunlight Readable TFT-H043A13SVIST6N40800x480 LVDS 4.3 Inch TFT Display Sunlight Readable TFT-H043A13SVIST6N40
    800x480 LVDS 4.3 Inch TFT Display Sunlight Readable TFT-H043A13SVIST6N40

    TFT-H043A13SVIST6N40.pdf
