    SPI 2.4 Inch Sunlight Readable TFT Resistive Touchscreen 240x320

    Ask Lasest Price
    Brand Name : HOTHMI
    Model Number : TFT-H024A5QVIST8R18
    Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram
    Supply Ability : 99999
    Delivery Time : 25 days
    • Product Details
    • Company Profile

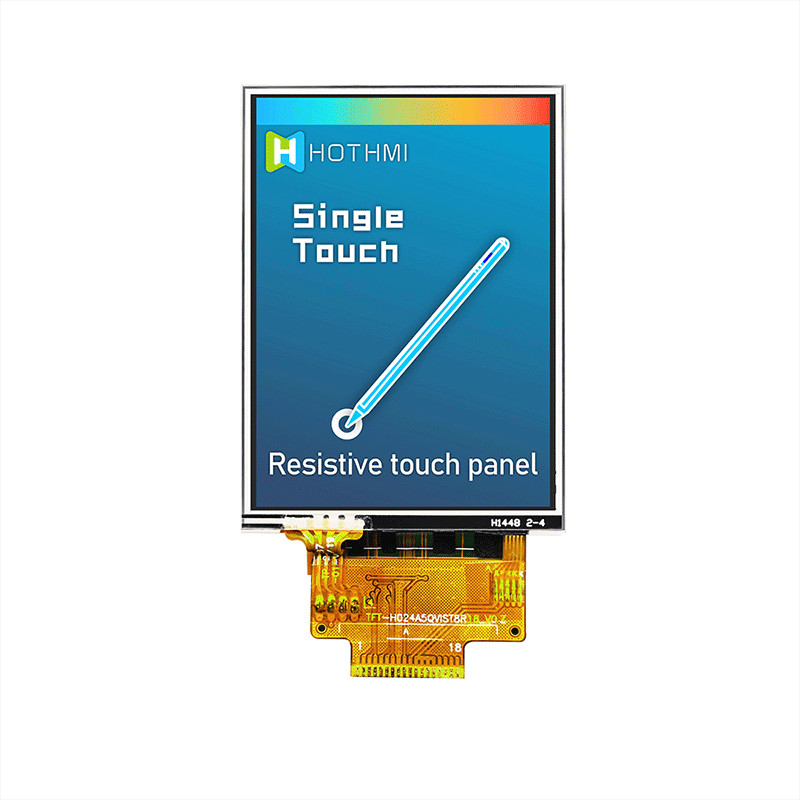

    SPI 2.4 Inch Sunlight Readable TFT Resistive Touchscreen 240x320

    2.4 inch resistive TFT color screen | 240x320 resolution | SPI interface | full viewing angle | high brightness TFT-H024A5QVTST8R18


    Product parameters


    Display Size - 2.4"
    Perspective: full perspective
    Backlight brightness: 800
    Connection method PIN number: 18PIN welding
    Interface: SPI
    Special instructions: with resistive touch screen
    Working temperature: -30~80℃
    Supply voltage: 3.3V

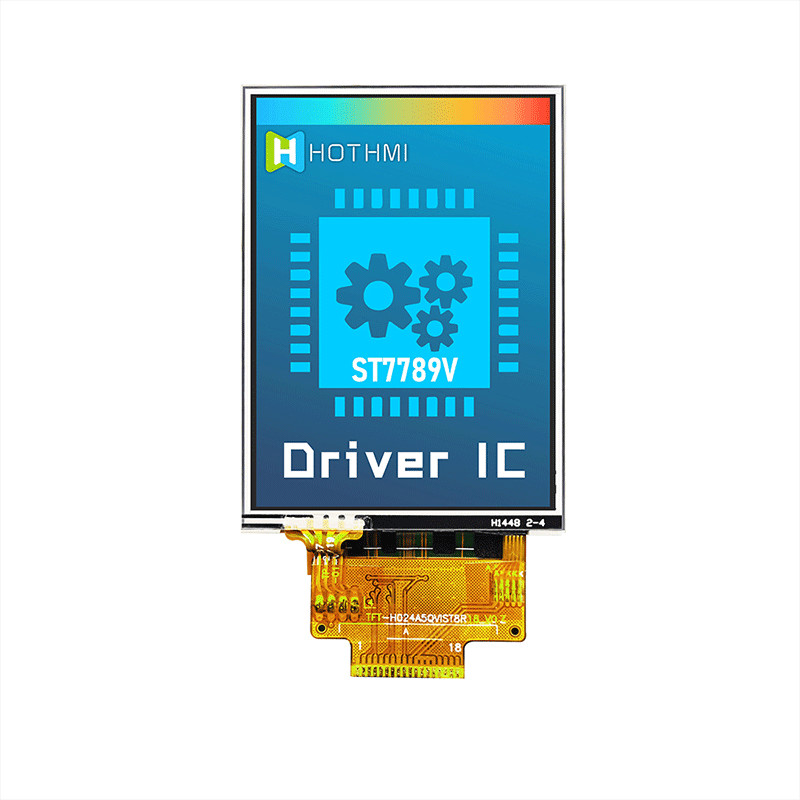

    Driver chip model: ST7789V

    General Feature:


    ItemStandard ValueUnit
    Display Size2.4”--
    Number of Pixels240(H)x3(RGB)x320(V)--
    Active Area36.72x48.96mm
    LCM Outline Dimension42.52x59.86x3.4mm
    Viewing DirectionFULL O’Clock-
    LCM Interface

    SPI-4L

    -

    LCM Driver ICST7789V-
    LCM Driver VoltageIOVCC=1.8V,VCI=2.8VV
    BacklightWhite LED-
    Touch PanelResistive touch-
    CTP Driver ICT.B.D-
    CTP Driver VoltageT.B.DV
    CTP I/O Digital VoltageT.B.DV
    Operation Temperature-20~70
    Storage Temperature-30~80

    TFT-H024A5QVIST8R18 | 2.4" Standard LCD | 240x320 Pixels | Resistive Touchscreen
    This 240x320 resolution LCD TFT is a standard display with 8-bit/16-bit Parallel interface, offering 262K colors and a full optimal view. This Liquid Crystal Display has a built-in ST7789Vi controller, FFC ZIF I/O connection, is RoHS compliant and has a 4-wire resistive touchscreen.


    SPI 2.4 Inch Sunlight Readable TFT Resistive Touchscreen 240x320SPI 2.4 Inch Sunlight Readable TFT Resistive Touchscreen 240x320SPI 2.4 Inch Sunlight Readable TFT Resistive Touchscreen 240x320SPI 2.4 Inch Sunlight Readable TFT Resistive Touchscreen 240x320SPI 2.4 Inch Sunlight Readable TFT Resistive Touchscreen 240x320SPI 2.4 Inch Sunlight Readable TFT Resistive Touchscreen 240x320SPI 2.4 Inch Sunlight Readable TFT Resistive Touchscreen 240x320SPI 2.4 Inch Sunlight Readable TFT Resistive Touchscreen 240x320SPI 2.4 Inch Sunlight Readable TFT Resistive Touchscreen 240x320

    SPI 2.4 Inch Sunlight Readable TFT Resistive Touchscreen 240x320

    TFT-H024A5QVIST8R18.pdf
