    2.4 Inch TFT Sunlight Readable , 240x320 Sun Readable Display TFT-H024A7QVIST8N45

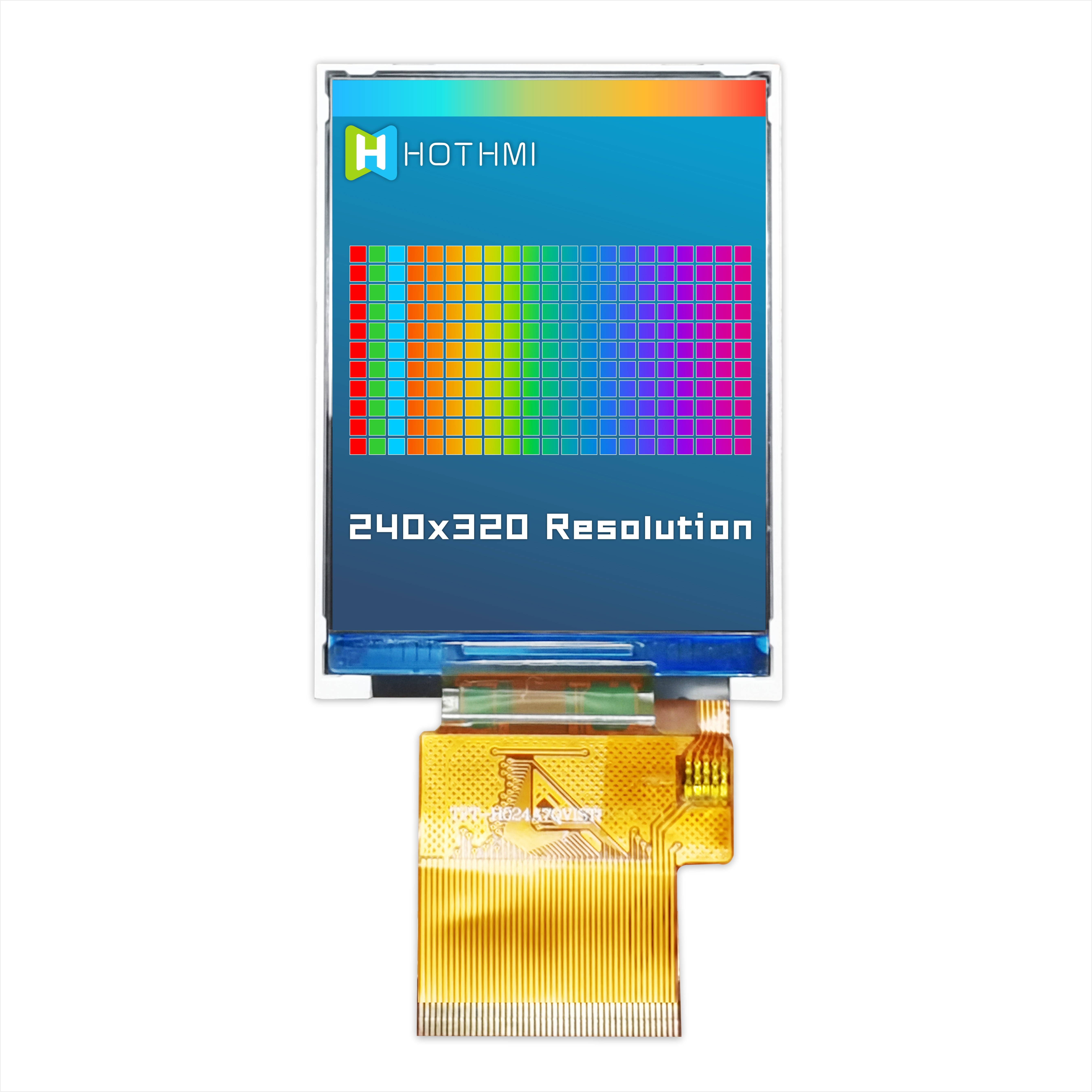

    2.4 Inch Sunlight Readable TFT Without Touchscreen/240x320 Pixels/TFT-H024A7QVIST8N45


    Product parameters


    Display Size - 2.4"
    Perspective - Full Perspective
    Backlight brightness - 800cd/m2
    Connection method PIN number - 45PIN
    Interface - MCU|RGB|SPI
    Special Instructions - Fully Compatible Interface
    Operating temperature - (-20~70℃)
    Supply Voltage - 3.0V
    Driver chip model - ST7789V


    General Feature:


    ItemStandard ValueUnit
    Display Size2.4”--
    Number of Pixels240(H)x3(RGB)x320(V)--
    Active Area36.72(H) x48.96(V)mm
    LCM Outline Dimension42.32(H) ×59.91× 2.40(V)mm
    Viewing DirectionFULL O’Clock-

    LCM Interface

    -Parallel 8080-series MCU Interface (8/9/16/18-bit)

    -6/16/18 RGB Interface(VSYNC, HSYNC, DOTCLK, ENABLE, DB[17:0])

    -Serial Peripheral Interface(3SPI/4SPI )


    -

    LCM Driver ICST7789V-
    LCM Driver VoltageIOVCC=1.8V,VCI=2.8V (Max 3.3V)V
    BacklightWhite LED-
    Touch PanelWhitout Touch Panel-
    CTP Driver ICT.B.D-
    CTP Driver VoltageT.B.DV
    CTP I/O Digital VoltageT.B.DV
    Operation Temperature-20~70
    Storage Temperature-30~80

    Pin Description


    Pin NO.SymbolDescription
    1VCIAnalog Power(2.65 ~ 3.3 V)
    2GNDGround
    3LED_ALED Anode
    4LED_KLED Cathode
    5-8IM0-IM3The MCU interface mode select
    9TETearing effect signal is used to synchronize MCU to frame memory writing.If not used, please let this pin open.
    10VSDVertical synchronizing input signal for RGB interface. If not used, please fix this pin at GND.
    11HSDHorizontal synchronizing input signal for RGB interface. If not used, please fix this pin at GND.
    12PCLK

    Dot clock signal for RGB interface.

    If not used, please fix this pin at GND.

    13DEN

    Data enable signal for RGB interface.

    If not used, please fix this pin at GND.

    14-31DB17-DB0Data Bus.If not used, please fix this pin at GND.
    32RS/SPI_CLK

    ♦Display data/command selection pin in parallel IF.

    ♦This pin is used to be serial interface clock.

    33RD

    Read enable in 8080 MCU parallel IF.

    If not used, please fix this pin at GND.


    34


    WR/SPI_D/C

    ♦Write enable in MCU parallel interface

    ♦Display data/command selection pin in 4-line serial IF.

    ♦Second Data lane in 2 data lane serial IF.

    35NCNo Connect
    36CS/SPI_CSChip select input pin (“Low” enable).
    37SPI_SDISPI input/output PIN or input, definition by IM3. If not used, please fix this pin at GND.
    38SPI_SDOSPI interface output pin.If not used, let this pin open.
    39RESETLCM Reset Pin.
    40NCNo Connect
    41GNDGround
    42NCNo Connect
    43NCNo Connect
    44NCNo Connect
    45NCNo Connect

    TFT-H024A7QVIST8N45 | 2.4" Sunlight Readable LCD | 240x320 Pixels | Hot-bar Soldering Connection | No Touchscreen
    This 240x320 resolution LCD TFT is equipped with a powerful backlight, providing visibility in bright lighting conditions including the direct sun. The sunlight readable display comes with 8-bit Parallel interface and offers a FULL optimal view. This 2.8V Liquid Crystal Display has a built-in ST7789V controller, hot-bar soldering connection, is RoHS compliant and does not come with a touchscreen.
