2.8" Sunlight Readable 240x320 TFT LCD Display/240x320 Dots/TFT-H028A1QVIST6N40

Product parameters

Display Size - 2.8"
Perspective - Full Perspective
Backlight brightness - 600cd/m2
Connection method PIN number - 40PIN
Interface - MCU+SPI
Special instructions - MCU 8/16 parallel port, SPI 3L/4L serial port
Working temperature - (-20~70℃)
Supply Voltage - 2.8V
Driver chip model - ST7789V

Product Description

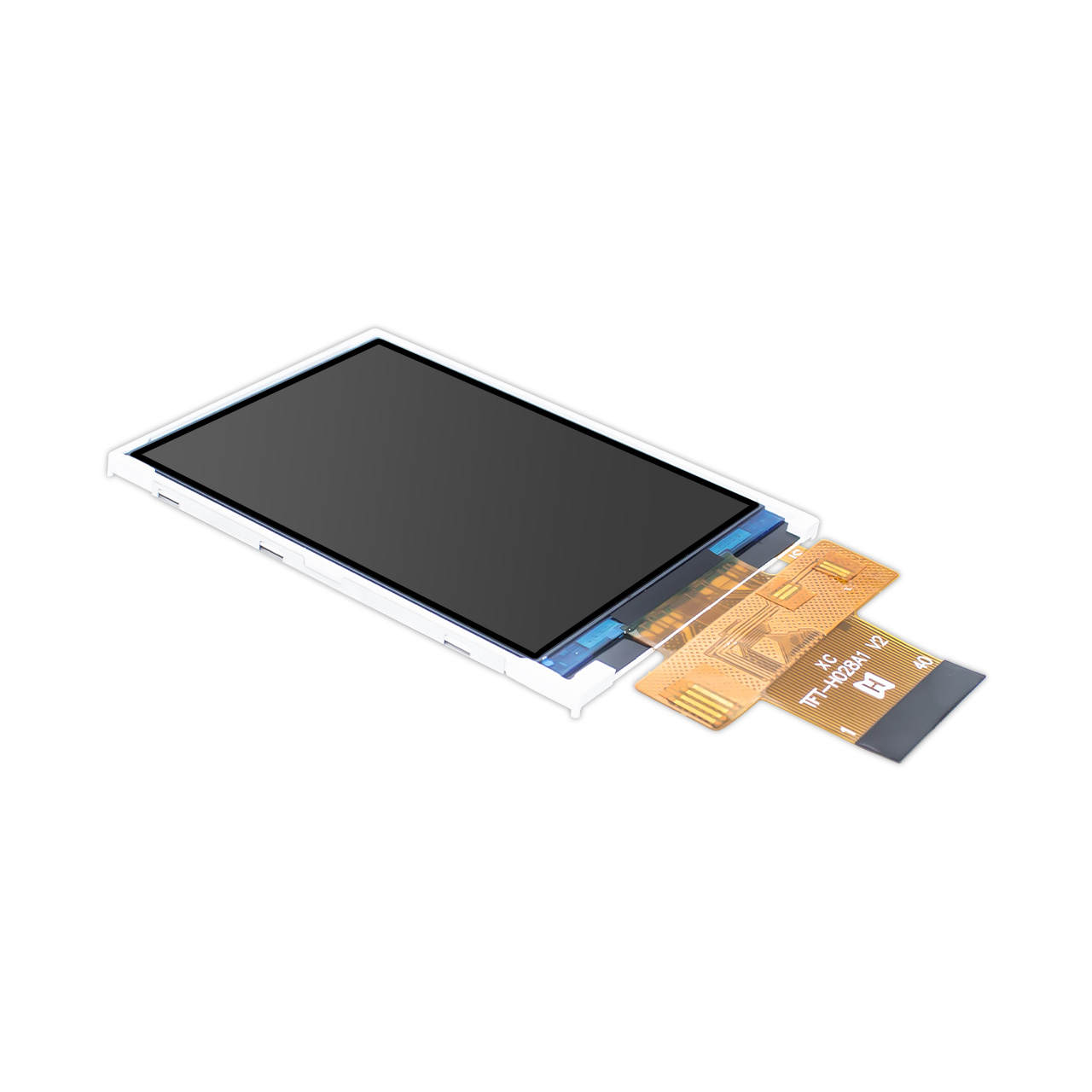

Product Description TFT-H028A1QVIST6N40 is a 2.8-inch full-color TFT LCD module with a resolution of 240x320 pixels and an aspect ratio of 2:3. The TFT module adopts ST7789V driver IC and supports MCU interface. The TFT module with IPS panel has the advantage of wide viewing angle (left 80 degrees/right 80 degrees/up 80 degrees/down 80 degrees), the typical contrast ratio is 800:1, and the module brightness is up to 600 nits (typical value). The working temperature range of the module is -20℃~+70℃, and the storage temperature range is -30℃~+80℃.

TFT-H028A1QVIST6N40.pdf
