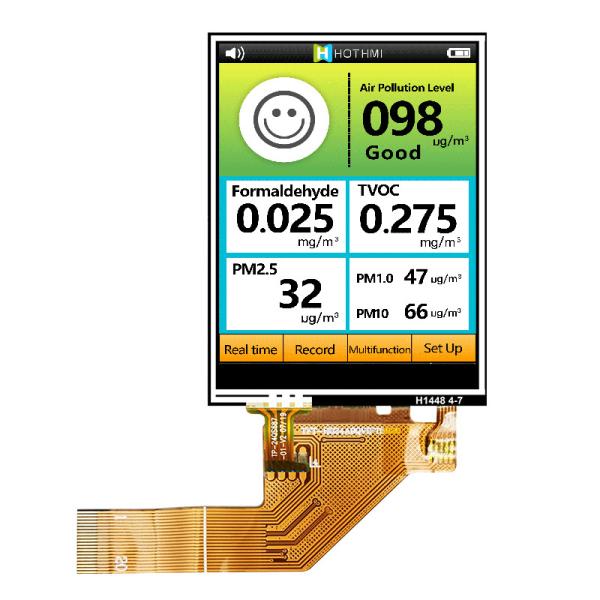

2.4 Inch MIPI Resistive TFT Display 240x320 TFT-H024A9QVIFT5R20

    Buy cheap 2.4 Inch MIPI Resistive TFT Display 240x320 TFT-H024A9QVIFT5R20 from wholesalers

    Buy cheap 2.4 Inch MIPI Resistive TFT Display 240x320 TFT-H024A9QVIFT5R20 from wholesalers
    • Buy cheap 2.4 Inch MIPI Resistive TFT Display 240x320 TFT-H024A9QVIFT5R20 from wholesalers
    • Buy cheap 2.4 Inch MIPI Resistive TFT Display 240x320 TFT-H024A9QVIFT5R20 from wholesalers
    • Buy cheap 2.4 Inch MIPI Resistive TFT Display 240x320 TFT-H024A9QVIFT5R20 from wholesalers
    • Buy cheap 2.4 Inch MIPI Resistive TFT Display 240x320 TFT-H024A9QVIFT5R20 from wholesalers

    2.4 Inch MIPI Resistive TFT Display 240x320 TFT-H024A9QVIFT5R20

    Ask Lasest Price
    Brand Name : HOTHMI
    Model Number : TFT-H024A9QVIFT5R20
    Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram
    Supply Ability : 99999
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    2.4 Inch MIPI Resistive TFT Display 240x320 TFT-H024A9QVIFT5R20

    2.4 inch Standard Resistive TFT Display/240x320 Pixels/TFT-H024A9QVIFT5R20


    Product parameters


    Product Type - TFT

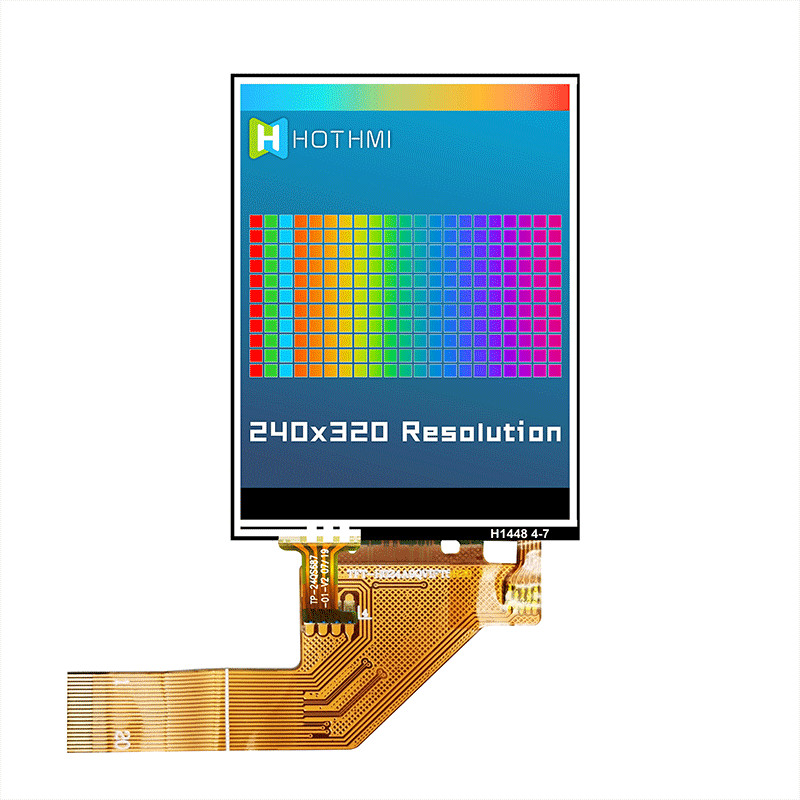

    Display Content - 240x320
    Display Size - 2.4"
    Perspective - Full Perspective
    Backlight brightness - 500cd/m2
    Connection method PIN number - FPC-20PIN

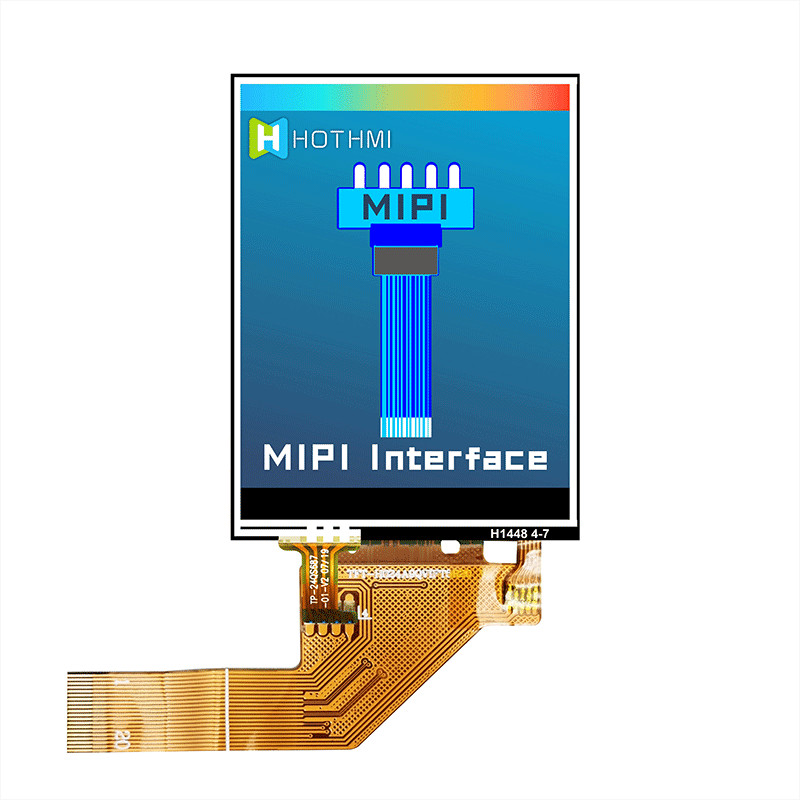

    Interface method - MIPI
    Supply Voltage - 3.2v

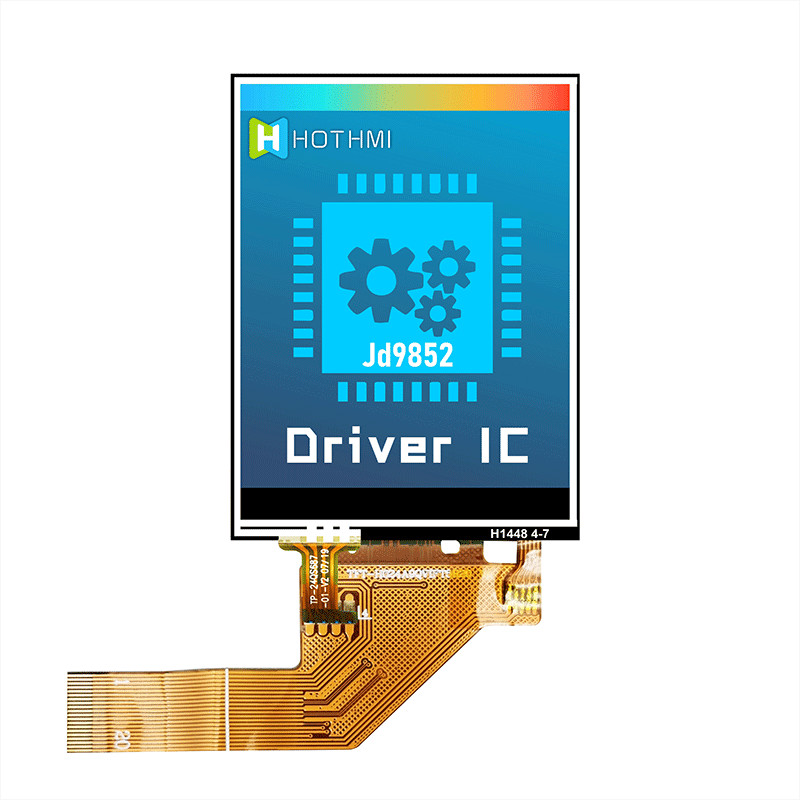

    Driver chip model - JD9852


    ItemStandard ValueUnit
    Display Size2.4”--
    Number of Pixels240(H)x3(RGB)x320(V)--
    Active Area36.72(H) *48.96(V)mm
    Outline Dimension42.52(H) ×59.86(V)× 3.40(D) <TFT+RTP>mm
    Viewing DirectionFull O’Clock-
    InterfaceMIPI-1L (Video mode)-
    Driver ICJD9852-
    Driver ConditionVCI=2.8V,IOVCC=1.8VV
    BacklightWhite LED-
    Touch PanelResistive Touch Panel-
    CTP Driver IC- - -
    CTP Driver ConditionVDD=3.3V
    Operation Temperature-20~70
    Storage Temperature-30~80

    3.1 Pin Description

    Pin NO.SymbolDescription
    1GNDGround
    2RTP_XRResistive touch control signal
    3RTP_YDResistive touch control signal
    4RTP_XLResistive touch control signal
    5RTP_YUResistive touch control signal
    6NCNo Connect
    7GNDGround
    8D0NMIPI-DSI Data differential signal input pins.
    9D0PMIPI-DSI Data differential signal input pins.
    10GNDGround
    11DCKNMIPI-DSI CLOCK differential signal input pins.
    12DCKPMIPI-DSI CLOCK differential signal input pins.
    13GNDGround
    14RESXGlobal reset pin. Active low to enter reset state.
    15IOVCCLogic Power(1.75 ~ 3.3 V,1.8V Type)
    16VCIAnalog Power(2.6 ~ 3.3 V,2.8V Type)
    17GNDGround
    18LED_ALED Anode
    19LED_KLED Cathode
    20GNDGround

    TFT-H024A9QVIFT5R20 | 2.4" Standard LCD | 240x320 Pixels | Resistive Touchscreen
    This 240x320 resolution LCD TFT is a standard display with 8-bit/16-bit Parallel interface, offering 262K colors and a full optimal view. This Liquid Crystal Display has a built-in JD9852 controller, FFC ZIF I/O connection, is RoHS compliant and has a resistive touchscreen.


    2.4 Inch MIPI Resistive TFT Display 240x320 TFT-H024A9QVIFT5R202.4 Inch MIPI Resistive TFT Display 240x320 TFT-H024A9QVIFT5R202.4 Inch MIPI Resistive TFT Display 240x320 TFT-H024A9QVIFT5R202.4 Inch MIPI Resistive TFT Display 240x320 TFT-H024A9QVIFT5R202.4 Inch MIPI Resistive TFT Display 240x320 TFT-H024A9QVIFT5R202.4 Inch MIPI Resistive TFT Display 240x320 TFT-H024A9QVIFT5R202.4 Inch MIPI Resistive TFT Display 240x320 TFT-H024A9QVIFT5R202.4 Inch MIPI Resistive TFT Display 240x320 TFT-H024A9QVIFT5R202.4 Inch MIPI Resistive TFT Display 240x320 TFT-H024A9QVIFT5R20

    2.4 Inch MIPI Resistive TFT Display 240x320 TFT-H024A9QVIFT5R20


    TFT-H024A9QVIFT5R20.pdf
