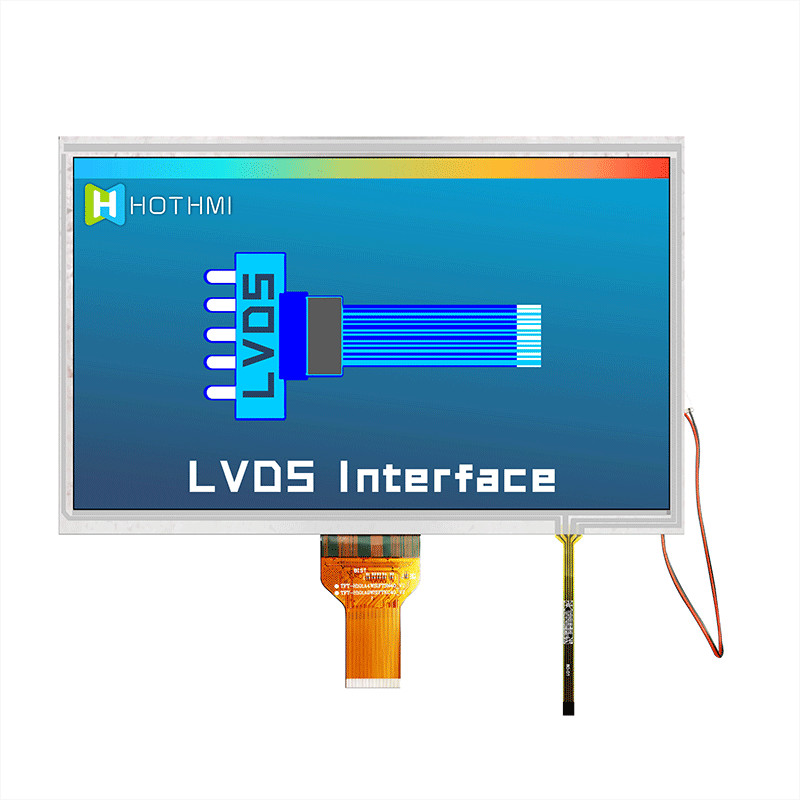

    10.1 Inch LVDS IPS Sunlight Readable LCD Display With Resistive Touch Panel H101A9WSIFTKR40

    10.1 Inch Sunlight Readable Resistive TFT Display/1024x600/EK79001+EK73215/H101A9WSIFTKR40

    DESCRIPTION


    H101A9WSIFTKR40 is a landscape mode 10.1 inch IPS TFT LCD module with Resistive Touch Panel; made of resolution 1024x600 pixels. H101A9WSIFTKR40 model is built in with EK79001HN and EK73215BCGA driver ICs, it supports LVDS interface, contrast ratio 800:1 (typical value), brightness 1000 nits (typical value), aspect ratio 16:9, anti-glare surface glass, normally black, transmissive LCD type. This 10.1" IPS TFT has a wider viewing angle than TN TFT, it's view angle is Left:85 / Right:85 / Up:85 / Down:85 degree (typical value).

    The power supply voltage (VDD) of H101A9WSIFTKR40 is from 3.0V to 3.6V, typical value 3.3V. It can be operating at temperatures from -20℃ to +70℃ and storage temperatures from -30℃ to +80℃.


    General Feature


    ItemStandard ValueUnit
    Display Size10.1Inch
    Number of Pixels1024(H)x*3(RGB)x 600(V)dots
    Active Area222.72(H)x 125.28(V)mm
    Outline Dimension

    235.00(H) * 143.00(V) * 6.90(D)) <TFT+RTP>

    mm
    Viewing DirectionFULL O'clock-
    TFT InterfaceLVDS-
    TFT Driver ICEK79001+EK73215-
    TFT Driver ConditionVCI=3.3V(Typ)V
    BacklightWhite LED/42 PCS/6 LEDs serial 7 ways parallel-
    Touch PanelWithout TP With RTP With CTP-
    CTP Driver IC-
    CTP Driver ConditionVDD=3.3V(Typ)V
    Operation Temperature-20 ~ 70

    Storage Temperature-30 ~ 80


    TFT Pin Description


    Pin NO.SymbolDescription
    1VCOMTFT Common Electrode Voltage
    2~3VCIDigital Power
    4NCNo Connect
    5RESX

    Global reset pin. Active low to enter reset state. Usually pulled high.

    For stability, an RC delay circuit needs to be connected

    externally. (RESX delay VCI greater than 1ms)


    6


    STBYB

    Standby mode, normally pull high. STBYB = "VCI", normal operation STBYB = “GND”, Standby mode
    7GNDGround
    8D0NLVDS negative differential data
    9D0PLVDS positive differential data
    10GNDGround
    11D1NLVDS negative differential data
    12D1PLVDS positive differential data
    13GNDGround
    14D2NLVDS negative differential data
    15D2PLVDS positive differential data
    16GNDGround
    17DCKNLVDS negative differential clock
    18DCKPLVDS positive differential clock
    19GNDGround
    20D3NLVDS negative differential data
    21D3PLVDS positive differential data
    22GNDGround
    23~24NCNo Connect
    25GNDGround
    26~27NCNo Connect
    28HSDData channel selection STBYB = "VCI", 6 bit STBYB = “GND”, 8 bit
    29AVDDAnalog Power
    30GNDGround
    31~32LEDKLED Cathode,Not connected here

    33


    L/R

    Horizontal scan direction control pin L/R= "VCI", From left to right(Default) L/R= “GND”, From right to left

    34


    U/D

    Vertical scan direction control pin U/D= "VCI", From down to up.

    U/D= “GND”, From up to down.(Default)

    35VGLTFT Gate OFF Voltage
    36~37NCNo Connect
    38VGHTFT Gate ON Voltage
    39~40LEDALED Anode,Not connected here

    RTP Pin Description


    Pin NO.SymbolDescription
    1XLX-axis measuring foot
    2YDY-axis measuring foot
    3XRX-axis measuring foot
    4YUY-axis measuring foot
