    MIPI-4L Interface 7.0 Inch 1200x1920 IPS TFT LCD Display HX8279

    Ask Lasest Price
    Brand Name : HOTHMI
    Model Number : TFT-H070D12ZFIHX2N4
    Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram
    Supply Ability : 99999
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    MIPI-4L Interface 7.0 Inch 1200x1920 IPS TFT LCD Display HX8279

    7.0 Inch 1200x1920 IPS TFT Display HX8279/TFT Module/TFT-H070D12ZFIHX2N4

    TFT-H070D12ZFIHX3N40 | 7.0" IPS LCD | No Touchscreen | TFT Module

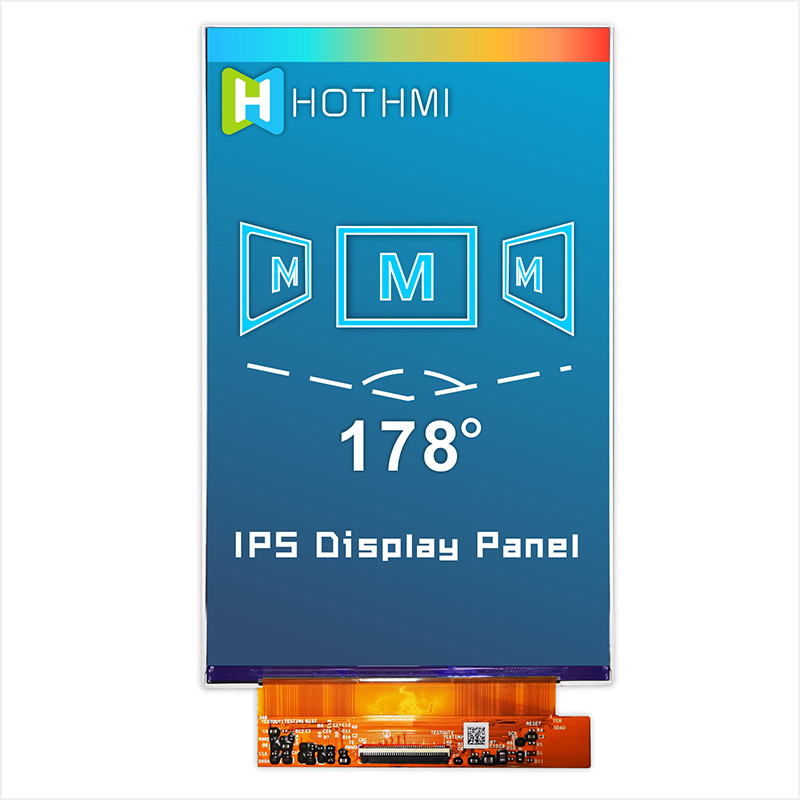

    This 7.0 inch TFT LCD display has a 1200x1920 resolution screen with IPS technology, better color reproduction, better image consistency, and better optical characteristics at any angle. For extra protection, this 24-bit true color TFT . This 7.0" display is RoHS compliant with MIPI-4L interface, and does not include a touchscreen. This 7.0" IPS display has been designed with the same mechanical footprint and pinout and includes the same HX8279 driver IC as the TN display, making this a compatible replacement option for the TN models.


    General Feature


    Item

    Standard Value

    Unit

    Display Size7.0Inch
    Number of Pixels1200(H)*3(RGB)* 1920(V)dots
    Active Area94.50(H)* 151.20(V)mm
    Outline Dimension99.75(H) * 161.60(V) * 2.20(D)mm
    Viewing DirectionFULL O'clock-
    InterfaceMIPI 4L-
    Driver ICHX8279-
    Driver ConditionIOVCC=1.8V,VSN=-5.5V,VSP=5.5V(Typ)V
    Backlight-1

    White LED/20 PCS/5 PCS serial 4 ways parallel

    -
    Touch PanelWhitout TP
    CTP Driver IC- - --
    CTP Driver Condition- - -V

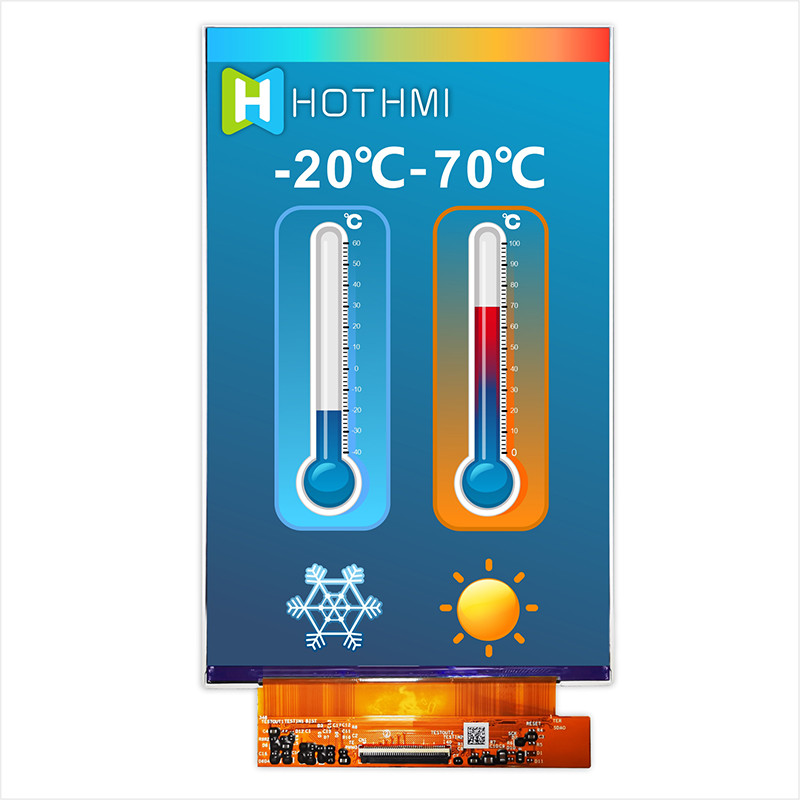

    Operation Temperature-20 ~ 70

    Storage Temperature-30 ~ 80


    TFT Pin Description

    Pin NO.SymbolDescription
    1NC

    Not connected

    2 ~ 3IOVCC

    1.8V power supply

    4GNDGround
    5RESXReset pin.
    6NC

    Not connected

    7GNDGround
    8D0N

    MIPI Negative data signal (-)

    9D0P

    MIPI Positive data signal (+)

    10GNDGround
    11D1N

    MIPI Negative data signal (-)

    12D1P

    MIPI Positive data signal (+)

    13GNDGround
    14DCKN

    MIPI Negative clock signal (-)

    15DCKP

    MIPI Positive clock signal (+)

    16GNDGround
    17D2N

    MIPI Negative data signal (-)

    18D2P

    MIPI Positive data signal (+)

    19GNDGround
    20D3N

    MIPI Negative data signal (-)

    21D3P

    MIPI Positive data signal (+)

    22GNDGround
    23 ~ 24NC

    Not connected

    25GNDGround
    26NC

    Not connected

    27PWMO

    PWM control signal for LED driver

    28 ~ 29NC

    Not connected

    30GNDGround
    31 ~ 32LEDK

    LED cathode

    33NC

    Not connected

    34 ~ 35VSN

    Analog supply negative voltage

    36NC

    Not connected

    37 ~ 38VSP

    Analog supply positive voltage

    39 ~ 40LEDALED anode

    All Products


    Bezel AppearanceBezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface.
    PCB AppearancePCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs.
    SolderingSoldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity.
    ConsistencyOur manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units.
    Product IntegrityQuality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions.
    Glass ColorWhile normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and
