5.5 Inch 720x1280 Dots High Brightness TFT Display/IC ILI9881/TFT-H055A1HDIIL3N30

Product parameters

Display Size - 5.5 inch
Product Application - Handheld Devices
Perspective - Full Perspective
Connection method PIN number - 30Pin

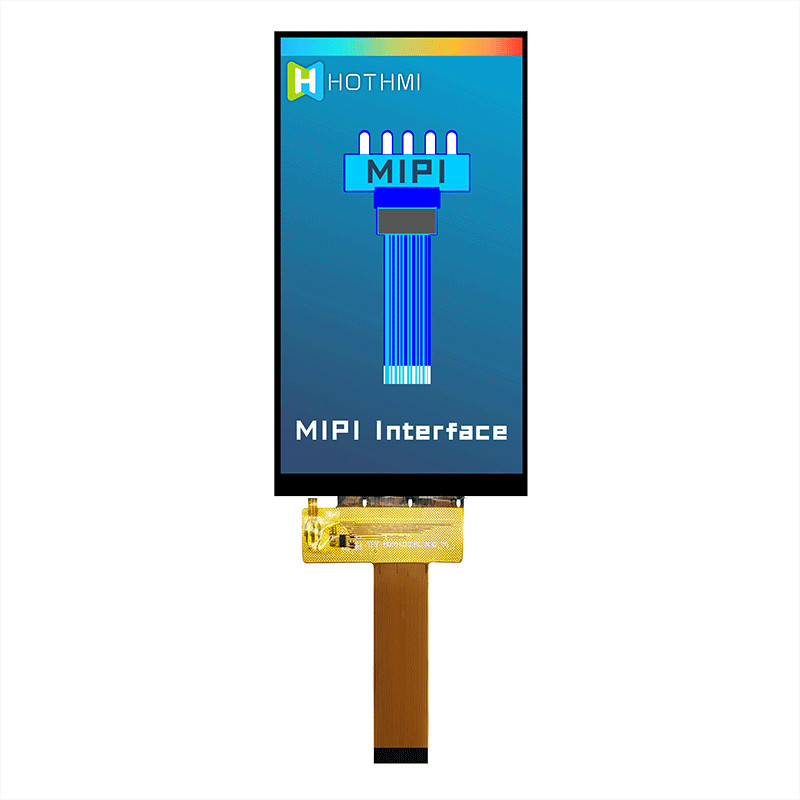

Interface - MIPI 4L
Special instructions - high brightness, visible in sunlight

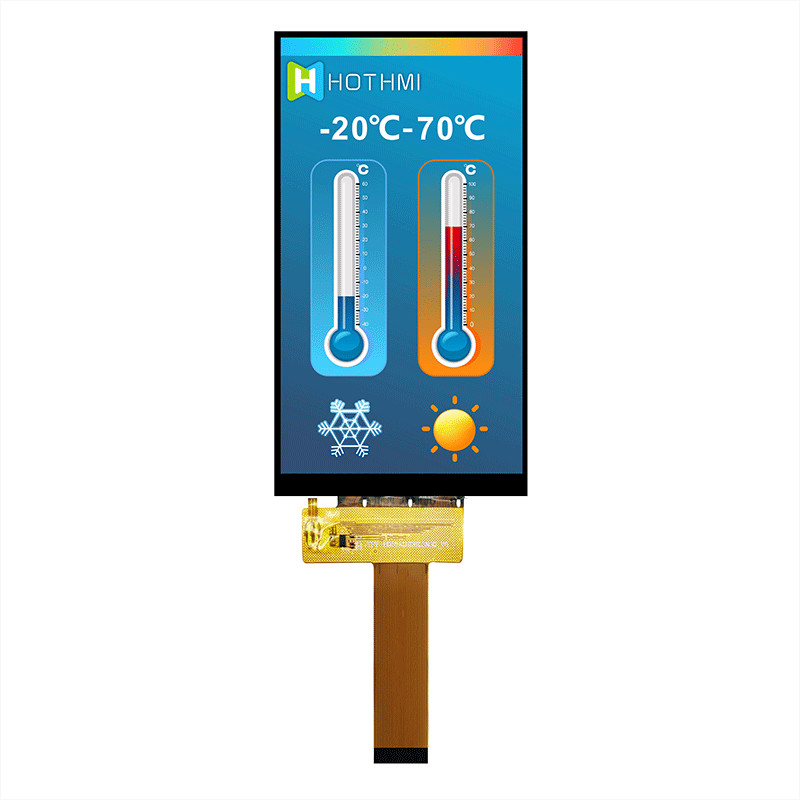

Working temperature - (-20~70℃)
Supply Voltage - 3.3V
Driver IC Model - ILI9881

General Feature

Pin Description

Product Description

TFT-H055A1HDIIL3N30 is a 5.5-inch 720 x1280 full-color HD high-definition TFT LCD module. This TFT-LCD supports MIPI DSI interface and adopts wide viewing angle IPS (In-plane Switching) panel technology. The viewing angle range is left: 80 / right: 80 / top: 80 / bottom: 80 degrees. Vivid, high-quality picture with saturated naturalness. This model has an operating temperature of -20°C to +70°C and a storage temperature of –30°C to +80°C.

The size of this TFT module is 67.932x120.768mm, the size of the Active area (AA area) is 71.04x129.56 mm, the module has a built-in driver IC ILI9881 (driver IC), and the working power supply voltage: 3.3V. The TFT-H055A1HDIIL3N30 module is in the straight screen mode, if you need to use the horizontal screen mode, please contact us, and we will provide relevant technical support services.

TFT-H055A1HDIIL3N30.pdf
