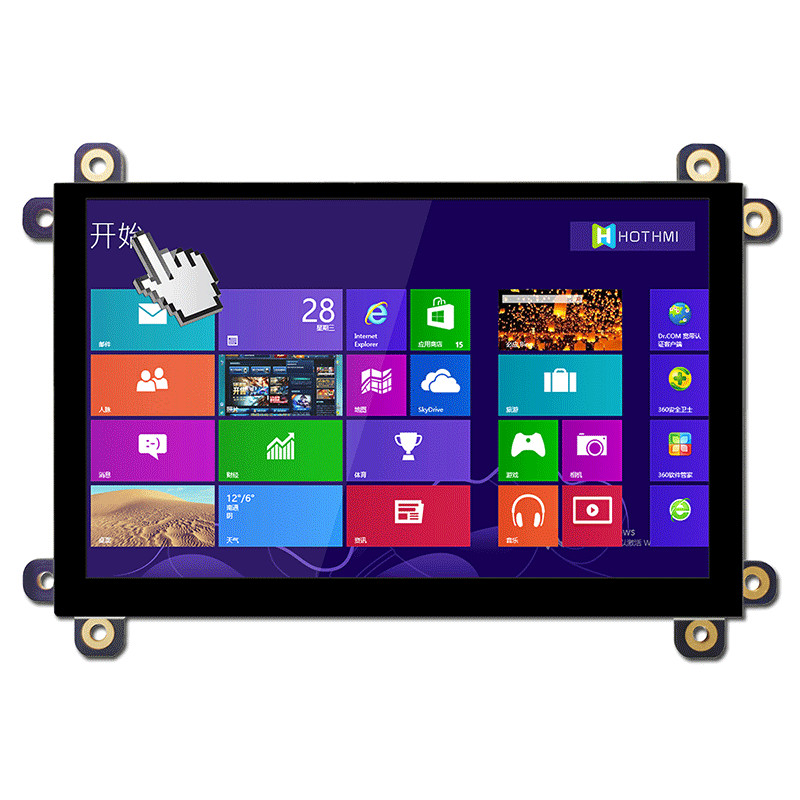

    600cd/M2 VGA HI LCD Display 5.0 Inch 800x480 Multipurpose

    Ask Lasest Price
    Brand Name : HOTHMI
    Model Number : LCM-TFT050T61SVHDVUSDC
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100000
    Delivery Time : 25 work days
    • Product Details
    • Company Profile

    600cd/M2 VGA HI LCD Display 5.0 Inch 800x480 Multipurpose

    5.0 inch 800x480 resolution Premium Capacitive HI+VGA TFT Module
    【Product introduction】
    ♦5.0 inch standard display, 800×480 HD resolution
    ♦ 600 cd/m² high brightness, 30000 hours long life backlight. Special
    requirements can be replaced 50000 hours long life backlight
    ♦ Support backlight on/off separate control
    ♦ Support OSD control buttons to help users adjust the LCD screen to the
    best state for different application environments, OSD menu can be switched
    in Chinese and English.
    ♦Support VGA and HI 1.4a signal input (choose one when using, cannot
    identify at the same time)
    ♦ Supports multi-point USB interface drive-free capacitive touch screen
    ♦ Support panel embedded installation, only need 4 screws to fix the PCB,
    easy installation and maintenance
    ♦ Compatible with mainstream operating systems and embedded operating
    systems such as DOS/Windows98/2000/XP/win7/win8/win10/Embedded/Linux.

    Product Description Model: 5.0 inch HI display+USB capacitive touch/800x480 resolution/high brightness/full viewing angle/HI/VGA interface/LCM-TFT050T61SVHDVUSDC

    LCM-TFT050T61SVHDVUSDC is a high-brightness 5-inch IPS TFT-LCD monitor that supports HI signal interface. The resolution of this TFT module is WVGA 800x480. The control board of this module is designed to support HI signal interface (only DVI) and 40-pin GPIO interface, which makes it more convenient for developers using Raspberry Pi. LCM-TFT050T61SVHDVUSDC adopts IPS technology to make the viewing angle wider, the typical value is up: 80/down: 80/left: 80/right: 80 degrees, TFT module built-in TFP401 controller IC can support HI signal interface (only DVI), this module Featuring a high brightness of 500 cd/m2 (typ.) and a contrast ratio of 1,000:1 (typ.), the LCM-TFT050T61SVHDVUSDC is a model equipped with a projected capacitive touch panel (CTP) that supports one USB interface. The IC can support 1-finger/2-finger or other touch indicators. LCM-TFT050T61SVHDVUSDC module adopts bright glass surface, LCM module (VDD) voltage is 5V/1A. The working temperature range is 20℃~+70℃; the storage temperature range is -30℃~+80℃. This module supports embedded system with HI signal interface, LCM-TFT050T61SVHDVUSDC adopts 5-inch IPS TFT panel with wide viewing angle and high brightness backlight. The screen is also equipped with a high resolution of 800x480. The module responds quickly and is compatible with most development software. It is ideal for various product applications, especially human-machine interfaces or POS systems, etc.coffee machine display
    Model : 5.0 inch TFT/800*480 resolution/HI VGA interface/LCM-TFT050T61SVHDVNSDC

    Product type:TFT LCM

    Show contents:800*480

    Outline size(mm) :140.0*95.0*6.5

    Effective size(mm):108.0*64.8

    Visual angle:Full View

    Backlight type or brightness:600cd/m2

    Interface mode:HI,VGA

    Special instructions:with CTP touch

    Working temperature:-30~80℃

    Power supply voltage:5.0V
