    Industrial VGA HI LCD Module , 600cd/M2 5 Inch LCD Screen HI TFT-050T61SVHDVNSDC

    Ask Lasest Price
    Brand Name : HOTHMI
    Model Number : TFT-050T61SVHDVNSDC
    Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram
    Supply Ability : 99999
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    Industrial VGA HI LCD Module , 600cd/M2 5 Inch LCD Screen HI TFT-050T61SVHDVNSDC

    5.0 Inch 800x480 Dots For HI Signal TFT Display Modules/TFT-050T61SVHDVNSDC


    Product parameters


    Display Size - 5.0 inch
    Product Application - Industrial Display
    Perspective - Full View

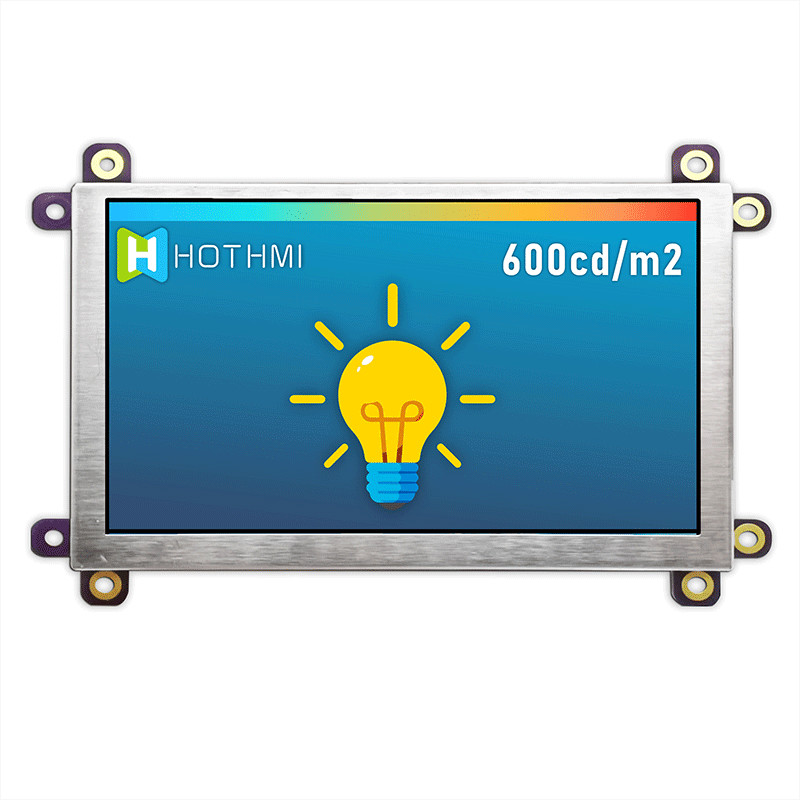

    Backlight type or brightness - 600cd/m2
    Interface - HI,VGA
    Working temperature - (-30~80℃)
    Supply Voltage - 5.0V


    Product introduction


    - 5.0 inch standard display, 800×480 HD resolution

    - 600 cd/m² high brightness, 30000 hours long life backlight. Special requirements can be replaced 50000 hours long life backlight

    - Support backlight on/off separate control

    - Support OSD control buttons to help users adjust the LCD screen to the best state for different application environments,

    OSD menu can be switched in Chinese and English.

    - Support VGA and HI 1.4a signal input (choose one when using, cannot

    identify at the same time)

    - Supports multi-point USB interface drive-free capacitive touch screen

    - Support panel embedded installation, only need 4 screws to fix the PCB,

    easy installation and maintenance

    -Compatible with mainstream operating systems and embedded operating systems such as DOS/Windows98/2000/XP/win7/win8/win10/Embedded/Linux.


    Module parameters


    Item

    Standard Value

    Unit
    InterfaceHI 1.4a / VGA-
    Power InputDC 5V/1A 以上-

    Module brightness

    Without TP600

    cd/m2

    Product weight

    Without TP90 + 5%

    g


    LCD parameters


    Item

    Standard Value

    Unit
    Display Size5.0Inch
    Number of Pixels800(H)*3(RGB)* 480(V)dots
    Active Area95.04(H)* 53.86(V)mm
    Outline Dimension

    140.00(H) * 95.00(V) * 21.10(D) <Without TP>

    mm
    Contrast Ratio1000:1-
    Response Time30 (Tr + Tf)msec
    Viewing DirectionFull O'clock-
    Maximum color16.7 MColor
    USB Touch PanelWithout TP-
    Operation Temperature-20 ~ 70

    Storage Temperature-30 ~ 80


    Search keyword: 5 inch tft, tft 5, tft 5", 5 tft lcd, 5" tft lcd, 5 inch tft lcd, tft lcd 5, 5 tft display, 5" tft display, 5 inch tft display, tft display 5, tft display 5", 5.0 tft lcd,5"tft
