    46PIN 1024x786 HI LCD Display Module 8.0 Inch LCM-TFT080T61SXGDVNSDC

    Ask Lasest Price
    Brand Name : HOTHMI
    Model Number : LCM-TFT080T61SXGDVNSDC
    Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram
    Supply Ability : 99999
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    46PIN 1024x786 HI LCD Display Module 8.0 Inch LCM-TFT080T61SXGDVNSDC

    8.0 Inch 1024x786 Dots For HI Signal TFT Display Module/LCM-TFT080T61SXGDVNSDC


    Product parameters


    Display Size - 8.0 inch
    Viewing Angle - 12H Viewing Angle
    Backlight type or brightness - 300cd/m2
    Connection method PIN number - FPC-46PIN
    Interface - HI, VGA interface
    Working temperature - -20~70℃
    Supply Voltage - 9~24V


    Product introduction

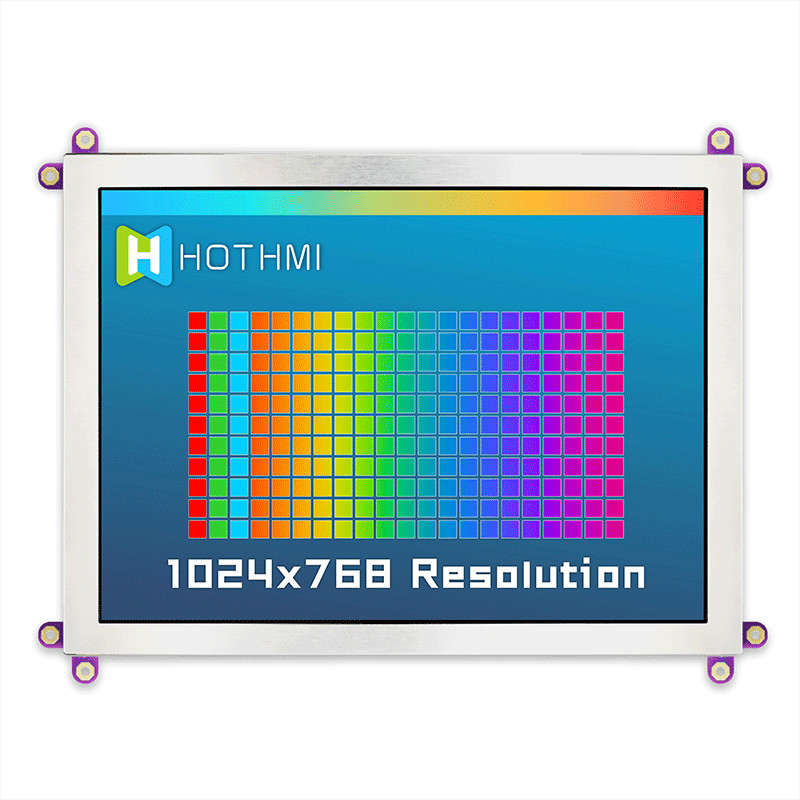

    - 8.0 inch standard display, 1024×768(XGA) resolution

    - 300 cd/m² brightness, 30,000 hours long-life backlight. There is a need to customize 500 ~ 1000 higher brightness, or 50000 hours longer life backlight

    - Support OSD control buttons to help users adjust the LCD screen to the best state for different application environments,OSD menu can be switched in Chinese and English.

    - Support VGA and HI 1.4a signal input (choose one when using, cannot

    identify at the same time)

    - Supports multi-point USB interface drive-free capacitive touch screen

    - Support panel embedded installation, only need4 screws to fix the PCB,

    easy installation and maintenance

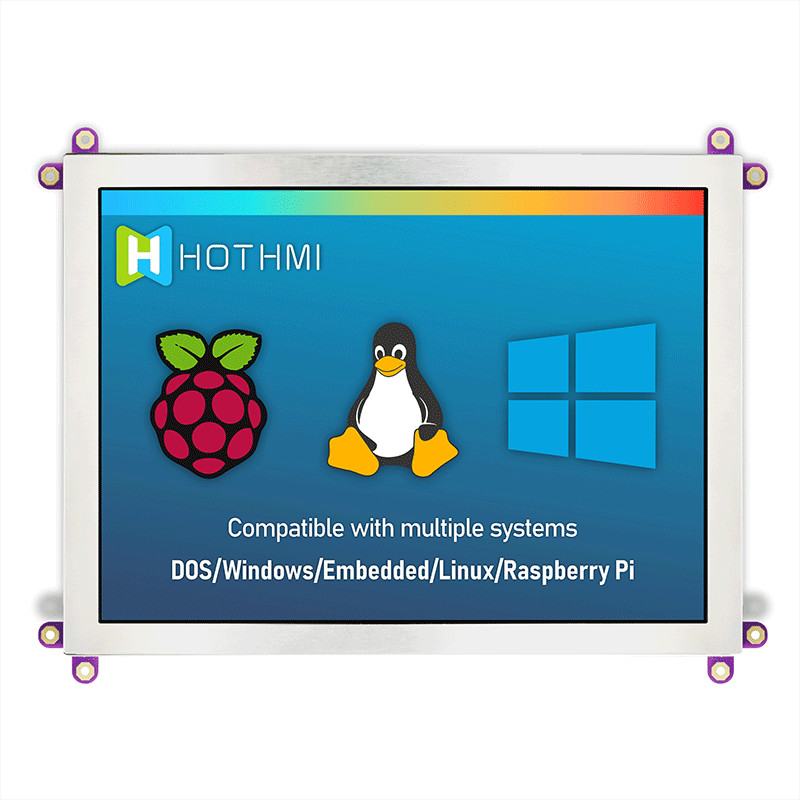

    - Compatible with mainstream operating systems and embedded operating systems such as DOS/Windows98/2000/XP/win7/win8/win10/Embedded/Linux.


    Item

    Standard Value

    Unit

    Interface

    HI 1.4a / VGA-

    Power Input

    DC 9 ~ 24V/1A 以上DC 9 to 24V/1A or more-

    Module brightness

    Without TP

    300

    cd/m2

    With CTP

    250

    Product weight

    Without TP

    310 + 3%

    g

    With CTP

    403 + 3%

    LCD parameters


    Item

    Standard Value

    Unit

    Display Size

    8.0 inch

    Inch

    Number of Pixels

    1024(H)*3(RGB)* 768(V)

    dots

    Active Area

    162.05(H)* 121.54(V)

    mm

    Outline Dimension

    203.00(H) * 161.00(V) * 21.80(D) <Without TP>

    mm

    Contrast Ratio

    Type 500:1-

    Response Time

    Type 20(Tr + Tf)

    msec

    Viewing Direction

    12 O'clock(U70/D75/L75/R75)

    -

    Maximum color

    16.7 M

    Color

    USB Touch Pane

    Without TP-

    Operation Temperature

    -20 ~ 70

    Storage Temperature

    -30 ~ 80
