    4 Inch 480x480 Dots Square TFT LCD Display Sunlight Readable SPI RGB ST7701S

    Ask Lasest Price
    Brand Name : HOTHMI
    Model Number : TFT-H040A1PVIST5N40
    Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram
    Supply Ability : 99999
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    4 Inch 480x480 Dots Square TFT LCD Display Sunlight Readable SPI RGB ST7701S

    4 Inch 480x480 Dots Square TFT LCD Display SPI RGB ST7701S/TFT-H040A1PVIST5N40

    Product parameters
    Display Size(mm) - 4 inch
    Effective Dimensions mm - 71.86(H) x 70.18(V)

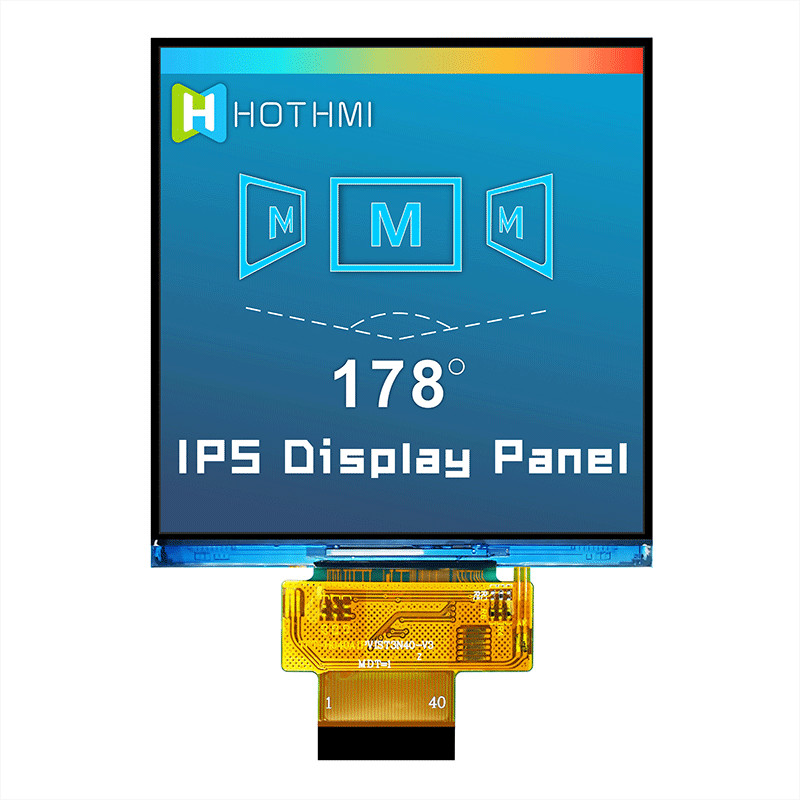

    Angle - Full Angle
    Connection method PIN number - 40PIN

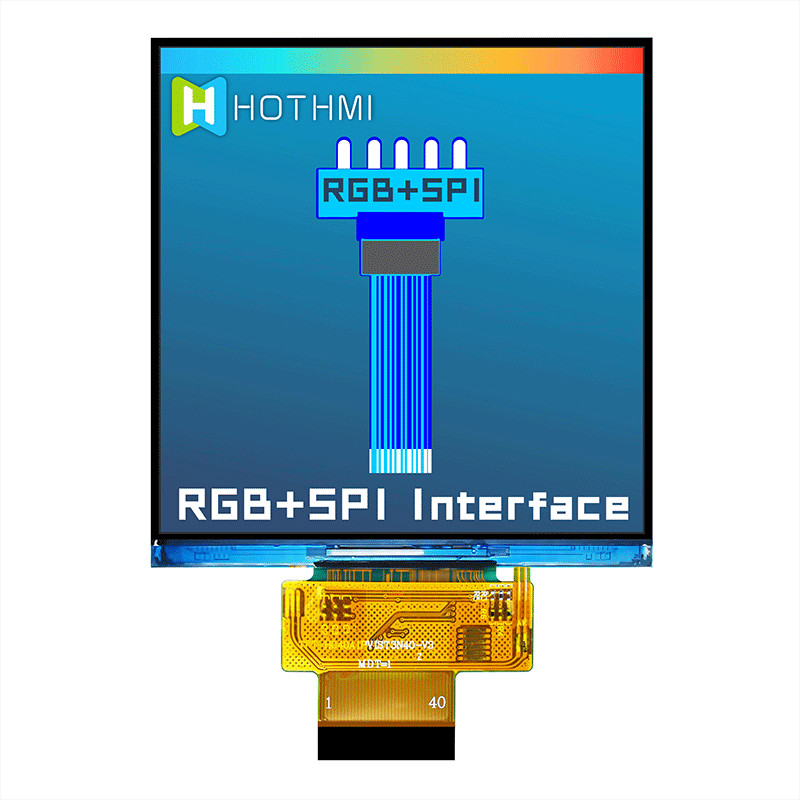

    Interface - 18 bit RGB+SPI
    Working temperature - -20~70℃
    Supply voltage - 2.8V

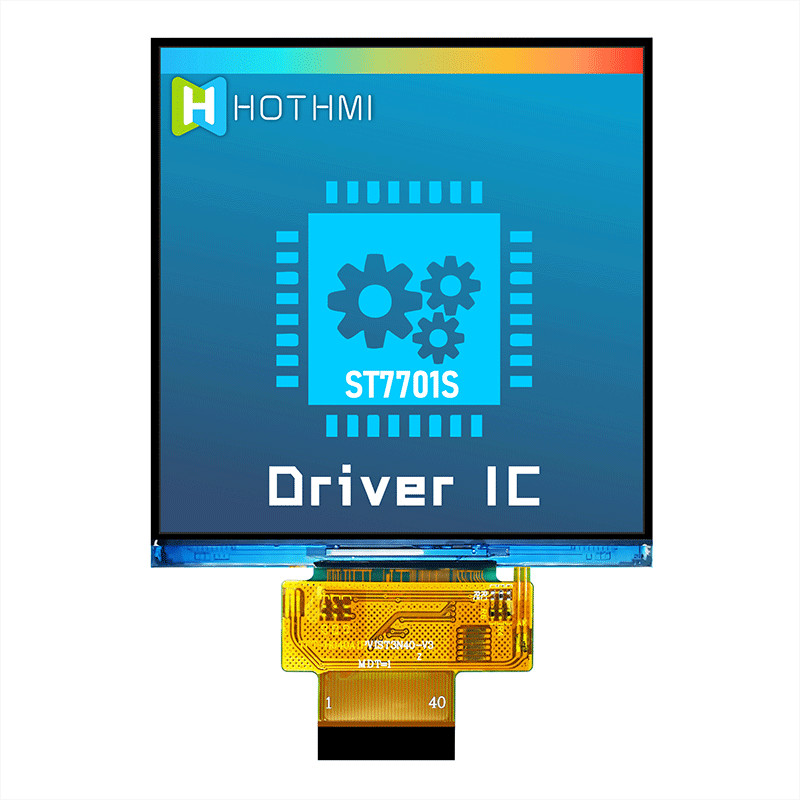

    Driver chip model - ST7701S


    General Feature

    Item

    Standard Value

    Unit

    Display Size4.0Inch
    Number of Pixels480(H)* 3(RGB)* 480(V)dots
    Active Area71.86(H)* 70.18(V)mm
    Outline Dimension

    74.66(H) * 76.54(V) * 2.06(D) <TFT>

    mm
    Viewing DirectionFULL O'clock-
    TFT Interface

    18 bit RGB+SPI

    (Default 9b_SPI(fall) )

    -
    TFT Driver ICST7701S-

    TFT Driver Condition

    VCI=2.8V(Typ)V
    Backlight-1

    White LED/8 PCS/4 LEDs serial 2 ways parallel

    -
    Touch PanelWithout TP-
    CTP Driver ICFT6336U-
    CTP Driver ConditionVDD=3.3V(Typ)V
    Operation Temperature-20 ~ 70

    Storage Temperature-30 ~ 80


    TFT Pin Description

    Pin NO.SymbolDescription
    1LEDALED Anode
    2~3LEDKLED Cathode
    4GNDGround
    5VCIDigital Power

    6

    RESX

    - The external reset input
    - Initializes the chip with a low input. Be sure to execute a power-on reset after supplying power.

    7~8NCNot Connect
    9SPI-SDASerial data input/output bidirectional pin for SPI
    10SPI-SCLSerial clock input for SPI interface.

    11

    SPI-CS

    A chip select signal

    GND: the chip is selected and accessible

    VCI: the chip is not selected and not accessible

    12DCLKPixel clock input pin
    13DENData input enable. Display access is enabled when DE is “L”.
    14VSDVertical sync signal.
    15HSDHorizontal sync signal.
    16~21DB0~5Blue data bus.
    22~27DG0~5Green data bus..
    28~33DR0~5Red data bus.
    34GNDGround
    35CTP-INTCTP interrupt read signal.If not used, let this pin open.
    36CTP-SDACTP IIC data signal.If not used, let this pin open.
    37CTP-SCLCTP IIC clock signal.If not used, let this pin open.
    38CTP-RTNCTP Reset signal.If not used, let this pin open.
    39CTP-VDDCTP Power supply.If not used, let this pin open.
    40CTP-GNDCTP Ground.If not used, let this pin open.

    Search keyword: tft 4, tft 4", 4 tft lcd, 4" tft 4, 4 inch tft lcd, tft lcd 4, 4 tft display, 4" tft display, 4 inch tft display, tft display 4, tft display 4", 4 lcd


    4 Inch 480x480 Dots Square TFT LCD Display Sunlight Readable SPI RGB ST7701S4 Inch 480x480 Dots Square TFT LCD Display Sunlight Readable SPI RGB ST7701S4 Inch 480x480 Dots Square TFT LCD Display Sunlight Readable SPI RGB ST7701S4 Inch 480x480 Dots Square TFT LCD Display Sunlight Readable SPI RGB ST7701S4 Inch 480x480 Dots Square TFT LCD Display Sunlight Readable SPI RGB ST7701S4 Inch 480x480 Dots Square TFT LCD Display Sunlight Readable SPI RGB ST7701S4 Inch 480x480 Dots Square TFT LCD Display Sunlight Readable SPI RGB ST7701S4 Inch 480x480 Dots Square TFT LCD Display Sunlight Readable SPI RGB ST7701S4 Inch 480x480 Dots Square TFT LCD Display Sunlight Readable SPI RGB ST7701S
    4 Inch 480x480 Dots Square TFT LCD Display Sunlight Readable SPI RGB ST7701S
    SPEC-H040A1-V3-0.pdf
