    4.0 Inch 480x480 Square Display TFT Lcd Module IPS SPI FT6336U With Pcap Monitor

    4 Inch 480x480 TFT LCD Module SPI FT6336U Capacitive Touch Screen/TFT-H040A1PVIST3C40

    Product parameters
    Field of view window size (mm) - 4 inch
    Display Size(mm) - 4 inch
    Effective Dimensions mm - 71.86(H) x 70.18(V)
    Product application - 86 boxes, smart panel
    Angle - Full Angle
    Backlight brightness - 350cd/m2
    Connection method PIN number - 40PIN

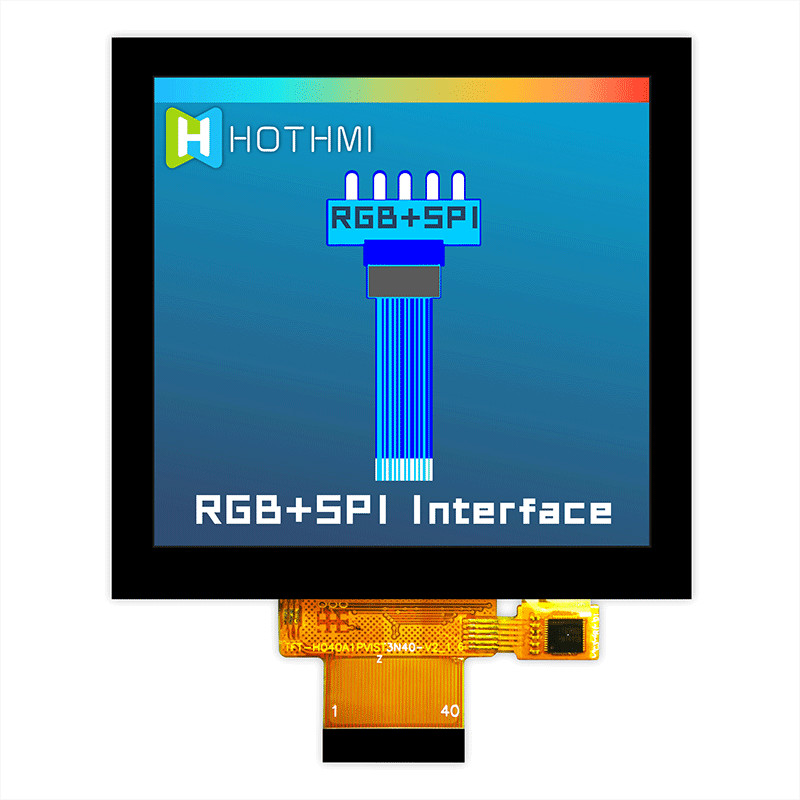

    Interface - 18 bit RGB+SPI

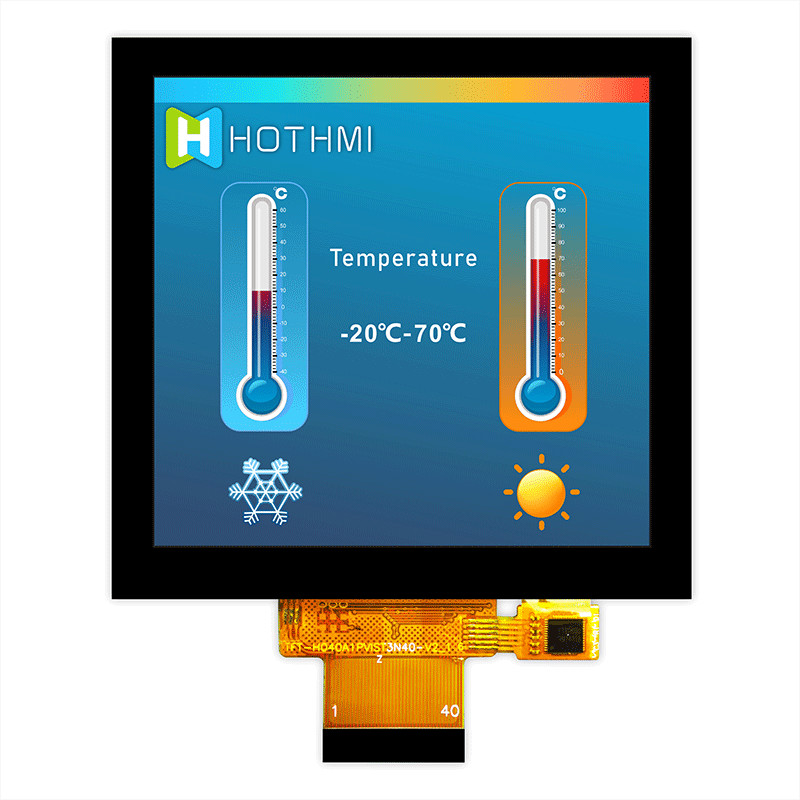

    Working temperature - -20~70℃


    General Feature

    ItemStandard ValueUnit
    Display Size4.0Inch

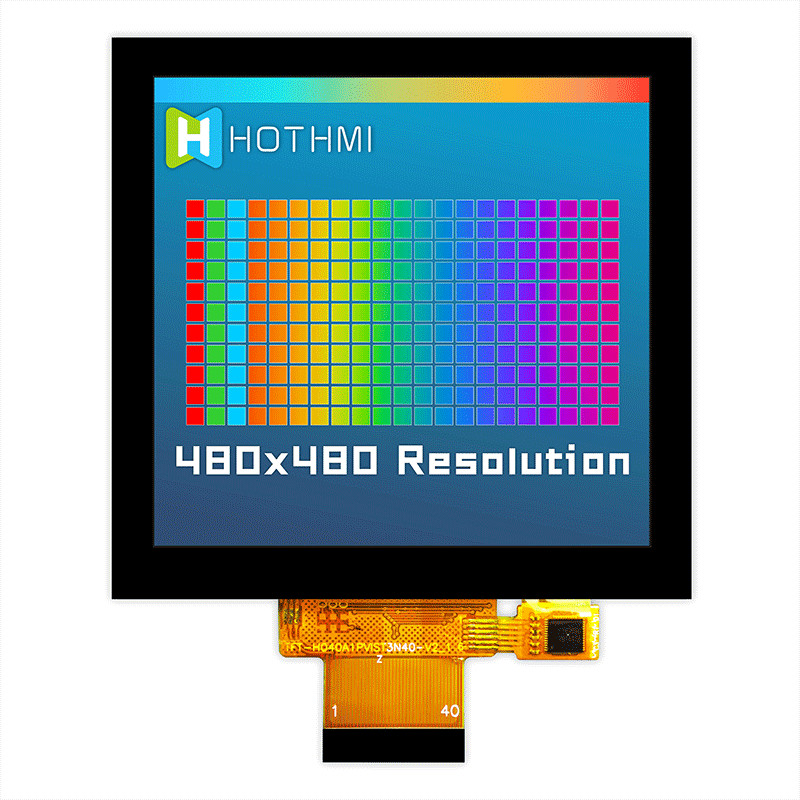

    Number of Pixels480(H)* 3(RGB)* 480(V)dots
    Active Area71.86(H)* 70.18(V)mm
    Outline Dimension

    83.90(H) * 83.90(V) * 3.21(D) <TFT+CTP>

    mm
    Viewing DirectionFULL O'clock-
    TFT Interface

    18 bit RGB+SPI

    (Default 9b_SPI(fall) )

    -
    TFT Driver ICST7701S-
    TFT Driver ConditionVCI=2.8V(Typ)V
    Backlight-1White LED/8 PCS/4 LEDs serial 2 ways parallel-
    Touch PanelWithout TP-
    CTP Driver ICFT6336U-
    CTP Driver ConditionVDD=3.3V(Typ)V
    Operation Temperature-20 ~ 70
    Storage Temperature-30 ~ 80


    TFT Pin Description

    Pin NO.SymbolDescription
    1LEDALED Anode
    2~3LEDKLED Cathode
    4GNDGround
    5VCIDigital Power
    6RESX- The external reset input
    - Initializes the chip with a low input. Be sure to execute a power-on reset after supplying power.
    7~8NCNot Connect
    9SPI-SDASerial data input/output bidirectional pin for SPI
    10SPI-SCLSerial clock input for SPI interface.
    11SPI-CS

    A chip select signal

    GND: the chip is selected and accessible

    VCI: the chip is not selected and not accessible

    12DCLKPixel clock input pin
    13DENData input enable. Display access is enabled when DE is “L”.
    14VSDVertical sync signal.
    15HSDHorizontal sync signal.
    16~21DB0~5Blue data bus.
    22~27DG0~5Green data bus..
    28~33DR0~5Red data bus.
    34GNDGround
    35CTP-INTCTP interrupt read signal.If not used, let this pin open.
    36CTP-SDACTP IIC data signal.If not used, let this pin open.
    37CTP-SCLCTP IIC clock signal.If not used, let this pin open.
    38CTP-RTNCTP Reset signal.If not used, let this pin open.
    39CTP-VDDCTP Power supply.If not used, let this pin open.
    40CTP-GNDCTP Ground.If not used, let this pin open.


    DESCRIPTION
    HOTLCD H040A1 is 480x480 dots TFT LCD module display with 4.0" TFT capacitive touch screen and it is easily controlled by SPI WITH RGB. This 4.0" TFT LCD with touch screen can be used in embedded systems, industrial device, 86 boxes, smart home panels equipment which require display in high quality and colorful image. It supports RGB WITH SPI interface.
