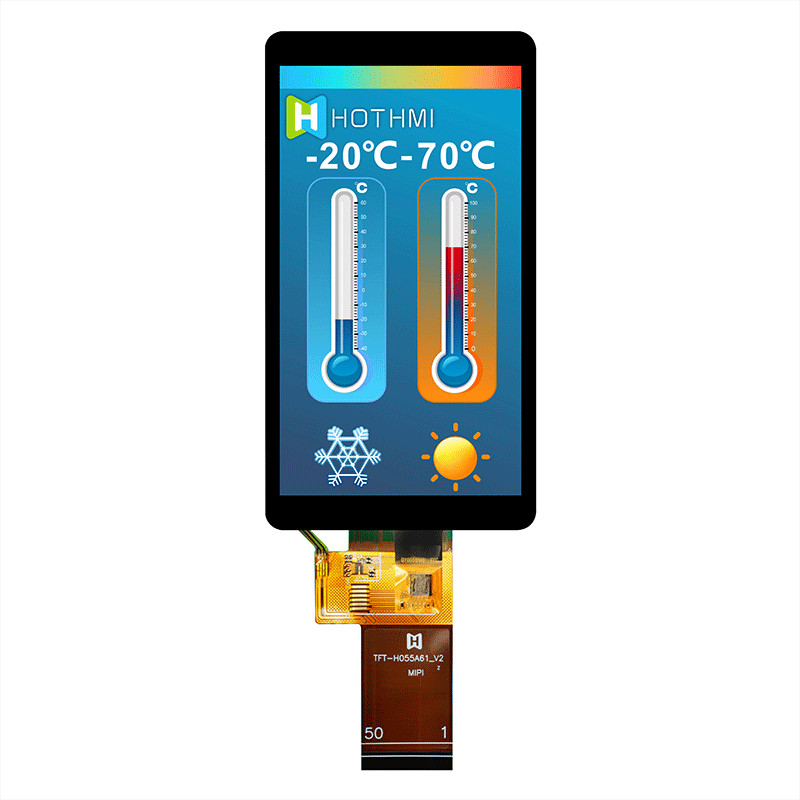

    5.5 Inch 720x1280 TFT LCD Module IPS Display High Brightness Pcap Monitor

    Ask Lasest Price
    Brand Name : HOTHMI
    Model Number : TFT-H055A61HDINVKC30
    Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram
    Supply Ability : 99999
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    5.5 Inch 720x1280 TFT LCD Module IPS Display High Brightness Pcap Monitor


    General Feature


    Item

    Standard Value

    Unit

    Display Size5.5 inchInch
    Number of Pixels720(H)x3(RGB)*1280(V)dots
    Active Area68.04(H) * 120.96(V)mm
    Outline Dimension76.00(H) * 140.00(V) * 4.85(D) <TFT+CTP>mm
    Viewing DirectionFull O’Clock-
    InterfaceMIPI 4 Lane-
    Driver ICNV3051F-
    Driver ConditionVIN=5.0V(1A )V
    Backlight-1

    White LED/14 PCS/2 PCS serial 7 ways parallel

    -
    Touch Panel¨Whitout TPWhit RTPWhit CTP -
    CTP Driver ICGT911-
    CTP Driver ConditionTP-VDD=3.3VV
    Operation Temperature-20 ~ 60

    Storage Temperature-30 ~ 80


    TFT Pin Description


    Pin NO.SymbolDescription
    1D3PMIPI data input pin
    2D3NMIPI data input pin
    3D2PMIPI data input pin
    4D2NMIPI data input pin
    5DCKPMIPI data input pin
    6DCKNMIPI clock input pin
    7D1PMIPI data input pin
    8D1NMIPI data input pin
    9D0PMIPI data input pin
    10D0NMIPI data input pin
    11GNDPower ground (also capacitive touch power ground)
    12TP-INTCapacitive touch interrupt signal
    13TP-SCLCapacitive touch IIC clock signal
    14TP-SDACapacitive touch IIC data signal
    15TP-VDDCapacitive touch power supply positive
    16TP-VDDCapacitive touch Power positive
    17TP-RSTCapacitive touch reset signal
    18GNDPower ground (also capacitive touch power ground)
    19BG-ENfloating

    20


    BG-ADJ

    Backlight on/off control and brightness adjustment input. Apply 10KHZ on this pin toThe PWM signal between 80KHz can adjust the LED brightness. If this pin is held low If the level exceeds 12ms, it will enter shutdown mode (backlight off).
    21 ~ 26GNDPower ground (also capacitive touch power ground)
    27 ~ 30VINPositive power supply (5.0 V/1A or more typical)

    Describe

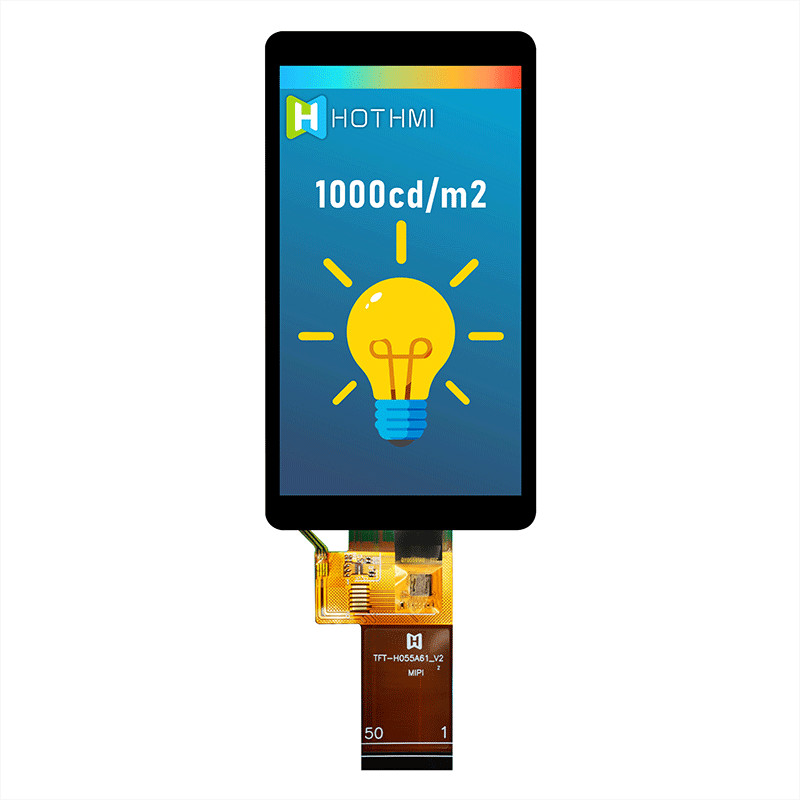

    H055T61HDMP4C30Z is a high brightness 5.5 inch RGB TFT LCD module with capacitive touch panel; made of resolution 720x1280 pixels. The TFT-H055T61HDMP4C30Z model has built-in NV3051F IC and GT911 CTP IC. Support MIPI-4L interface, contrast ratio 800:1 (typical value), high brightness 1000 nits (typical value), aspect ratio 9:16, full viewing angle surface glass. The capacitive touch panel adopts hover touch technology, supports I2C interface and multi-touch and one-key hover function.

    The supply voltage (VDD) of the H055T61HDMP4C30Z is 3.3V to 5.0V, typically 3.3V. It can work from -20°C to +60°C, and store it from -30°C to +80°C.


    5.5 Inch 720x1280 TFT LCD Module IPS Display High Brightness Pcap Monitor5.5 Inch 720x1280 TFT LCD Module IPS Display High Brightness Pcap Monitor5.5 Inch 720x1280 TFT LCD Module IPS Display High Brightness Pcap Monitor5.5 Inch 720x1280 TFT LCD Module IPS Display High Brightness Pcap Monitor5.5 Inch 720x1280 TFT LCD Module IPS Display High Brightness Pcap Monitor5.5 Inch 720x1280 TFT LCD Module IPS Display High Brightness Pcap Monitor5.5 Inch 720x1280 TFT LCD Module IPS Display High Brightness Pcap Monitor5.5 Inch 720x1280 TFT LCD Module IPS Display High Brightness Pcap Monitor5.5 Inch 720x1280 TFT LCD Module IPS Display High Brightness Pcap Monitor5.5 Inch 720x1280 TFT LCD Module IPS Display High Brightness Pcap Monitor

    5.5 Inch 720x1280 TFT LCD Module IPS Display High Brightness Pcap Monitor

    TFT-H055A61HDINVKC30_V2-0.pdf
