    10.1 Inch LVDS IPS TFT LCD 1024x600 EK79001 EK73215 for Industrial Display

    Ask Lasest Price
    Brand Name : HOTHMI
    Model Number : TFT-H101A9WSIFTKN40
    Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram
    Supply Ability : 99999
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    10.1 Inch LVDS IPS TFT LCD 1024x600 EK79001 EK73215 for Industrial Display

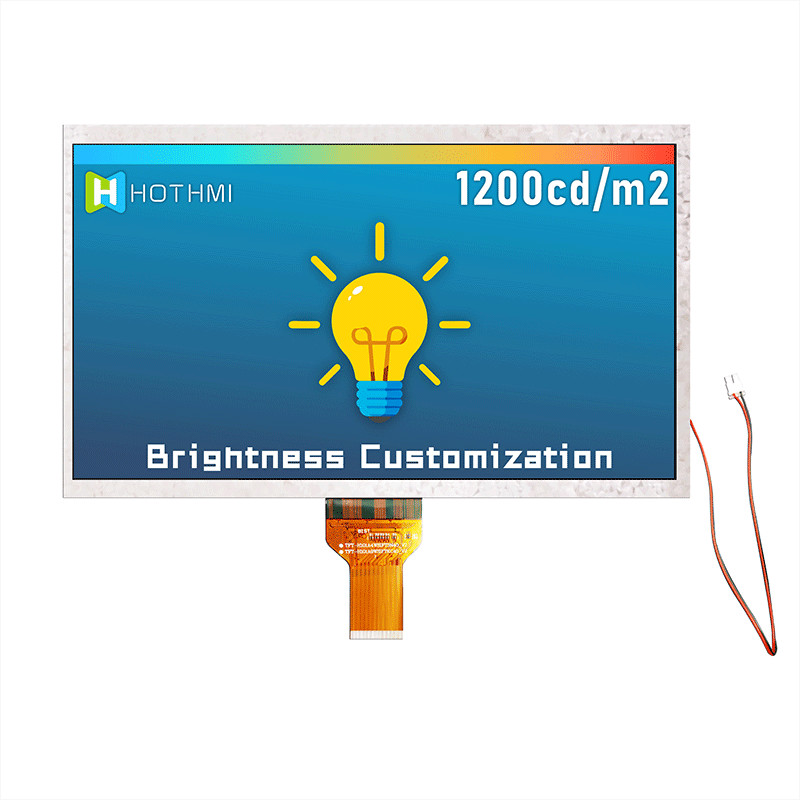

    10.1 Inch 1024x600 High Brightness LVDS IPS TFT Display/EK79001+EK73215/H101A9WSIFTKN40

    Product parameters
    Dimensions (mm) - 235.00x143.00x 6.95

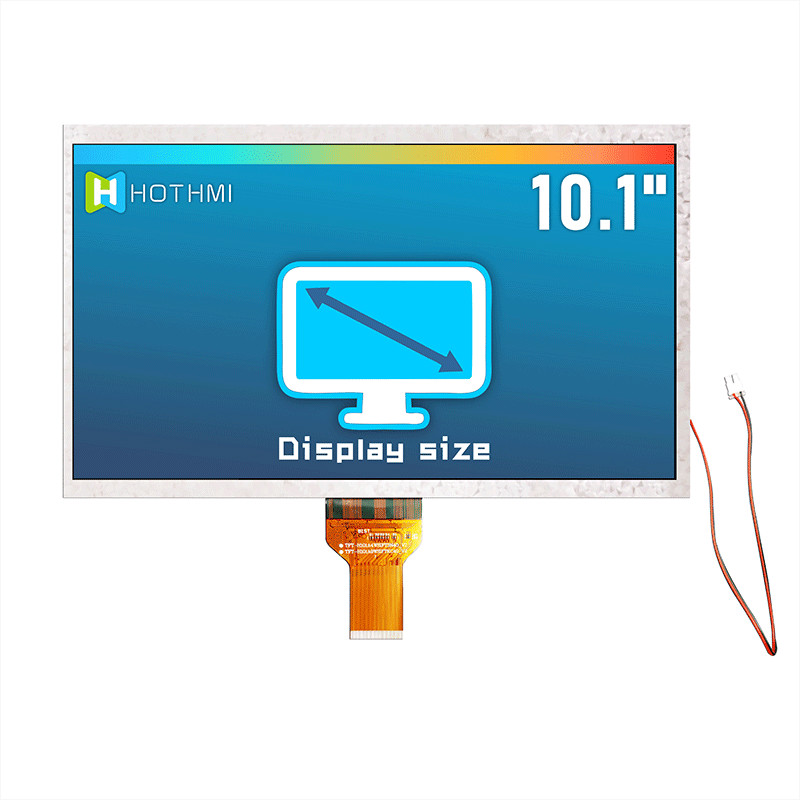

    Display size (mm) - 10.1 inch
    Effective size mm - 222.72x125.28
    Perspective - Full Perspective
    Connection method PIN number - 40PIN
    Interface method - LVDS

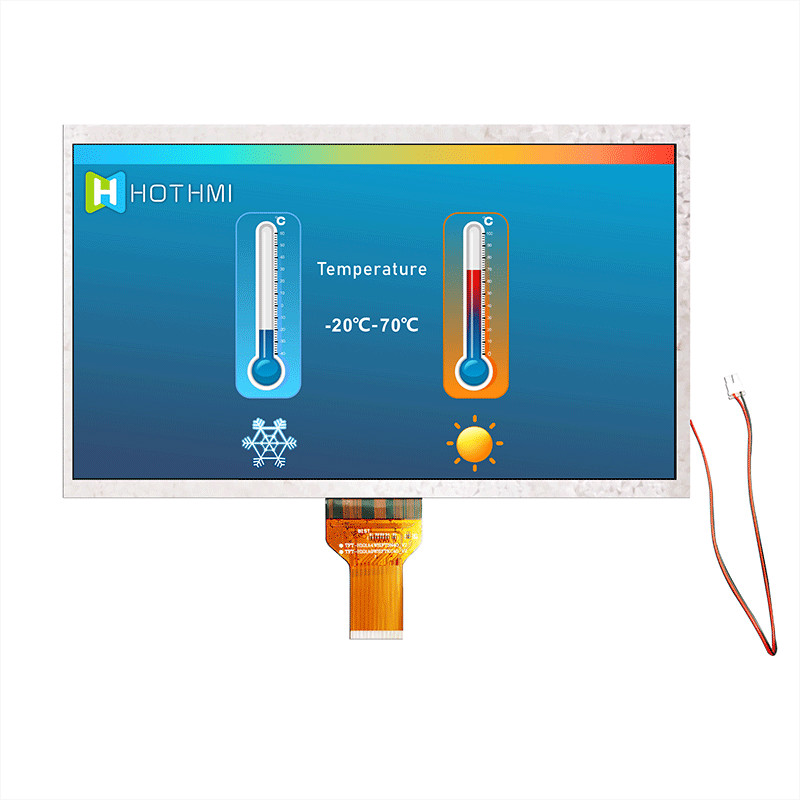

    Working temperature - -20~70℃
    Supply Voltage - 3.3V

    General Feature

    ItemStandard ValueUnit
    Display Size10.1Inch
    Number of Pixels1024(H)*3(RGB)* 600(V)dots
    Active Area222.72(H)* 125.28(V)mm
    Outline Dimension

    235.00(H) * 143.00(V) * 5.30(D) <TFT>

    mm
    Viewing DirectionFULL O'clock-
    TFT Interface

    LVDS

    -

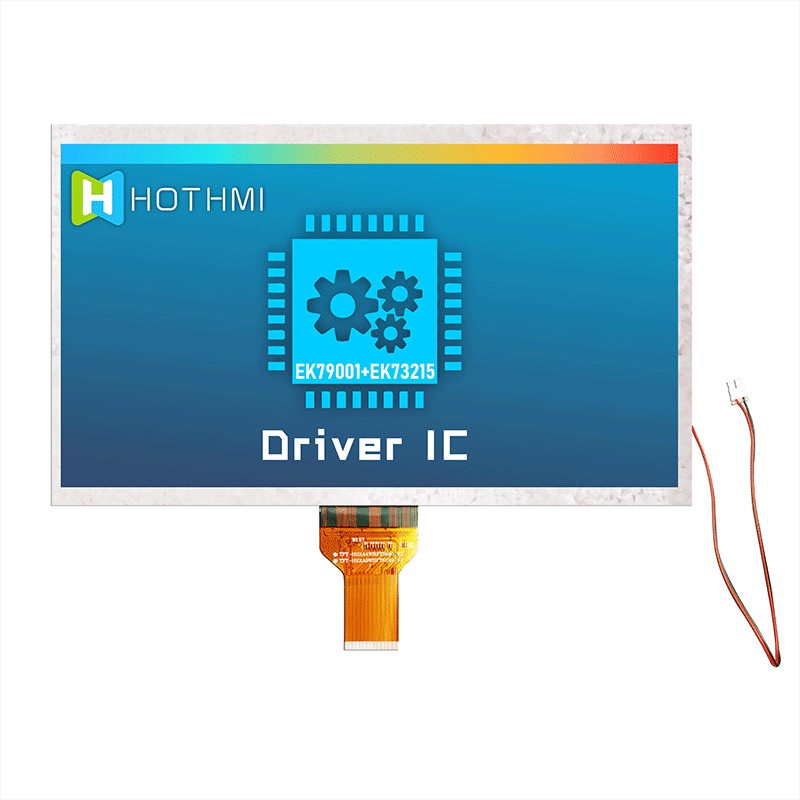

    TFT Driver ICEK79001+EK73215-

    TFT Driver Condition

    VCI=3.3V(Typ)V
    Backlight

    White LED/42 PCS/6 LEDs serial 7 ways parallel

    -
    Touch PanelWithout TP-
    CTP Driver IC-
    CTP Driver ConditionVDD=3.3V(Typ)伏 V
    Operation Temperature-20 ~ 70

    摄氏度

    Storage Temperature-30 ~ 80

    摄氏度


    TFT Pin Description


    Pin NO.SymbolDescription
    1VCOMTFT Common Electrode Voltage
    2~3VCIDigital Power
    4NCNo Connect

    5

    RESX

    Global reset pin. Active low to enter reset state. Usually pulled high.

    For stability, an RC delay circuit needs to be connected

    externally. (RESX delay VCI greater than 1ms)


    6


    STBYB

    Standby mode, normally pull high. STBYB = "VCI", normal operation STBYB = “GND”, Standby mode
    7GNDGround
    8D0NLVDS negative differential data
    9D0PLVDS positive differential data
    10GNDGround
    11D1NLVDS negative differential data
    12D1PLVDS positive differential data
    13GNDGround
    14D2NLVDS negative differential data
    15D2PLVDS positive differential data
    16GNDGround
    17DCKNLVDS negative differential clock
    18DCKPLVDS positive differential clock
    19GNDGround
    20D3NLVDS negative differential data
    21D3PLVDS positive differential data
    22GNDGround
    23~24NCNo Connect
    25GNDGround
    26~27NCNo Connect

    28

    HSD

    Data channel selection STBYB = "VCI", 6 bit STBYB = “GND”, 8 bit
    29AVDDAnalog Power
    30GNDGround
    31~32LEDKLED Cathode,Not connected here

    33


    L/R

    Horizontal scan direction control pin L/R= "VCI", From left to right(Default) L/R= “GND”, From right to left

    34


    U/D

    Vertical scan direction control pin U/D= "VCI", From down to up.

    U/D= “GND”, From up to down.(Default)

    35VGLTFT Gate OFF Voltage
    36~37NCNo Connect
    38VGHTFT Gate ON Voltage
    39~40LEDALED Anode,Not connected here
