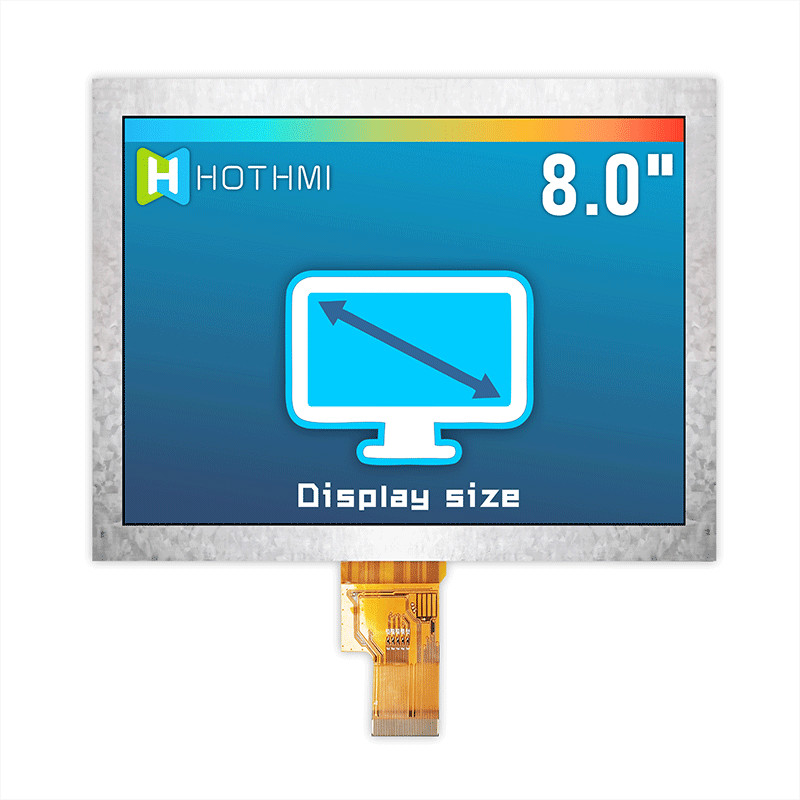

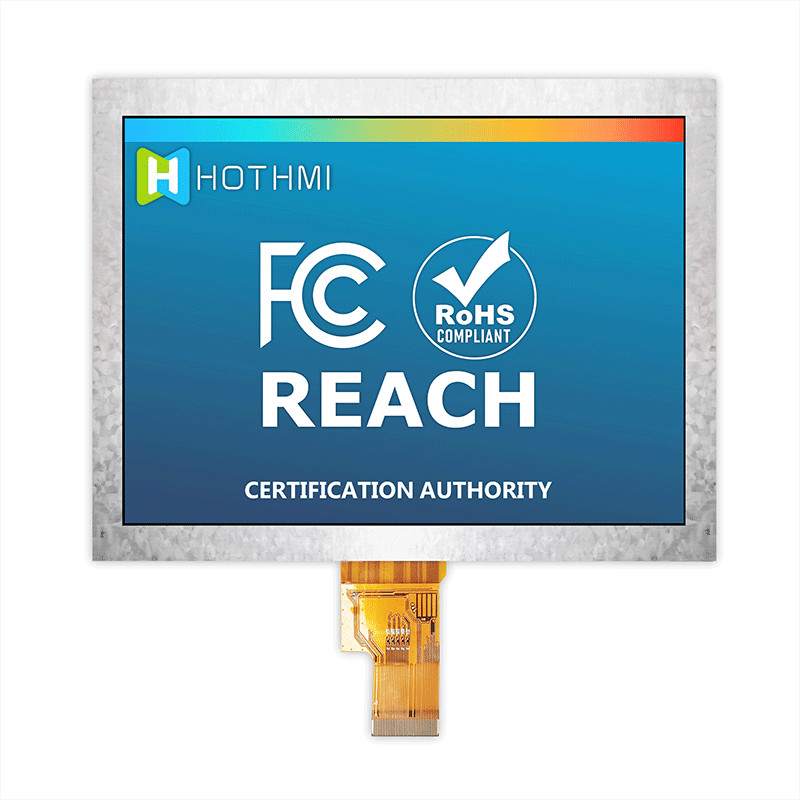

    8 Inch 1024x768 Color Touch IPS TFT Display HX8282A HX8695 TFT-H080A2XGTHX3N40

    Ask Lasest Price
    Brand Name : HOTHMI
    Model Number : TFT-H080A2XGTHX3N40
    Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram
    Supply Ability : 99999
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    8 Inch 1024x768 Color Touch IPS TFT Display HX8282A HX8695 TFT-H080A2XGTHX3N40

    8 Inch 1024x768 Dots Color TFT LCD Modules/HX8282A+HX8695/TFT-H080A2XGTHX3N40


    Product parameters


    Effective size mm - 162.05x121.54
    Perspective - 12H
    Backlight brightness - 300cd/m2
    Connection method PIN number - FPC-40PIN
    Interface method - LVDS
    Operating temperature - (-20~70℃)
    Supply Voltage - 3.3V


    General Feature


    ItemStandard ValueUnit
    Display Size8.0”--
    Number of Pixels1024(H)x3(RGB)*768(V)--
    Active Area162.05(H) * 121.54(V)mm
    Outline Dimension174.50(H) × 135.70(V) × 3.00(D)mm
    Viewing Direction12 O'clock-
    InterfaceLVDS 4L-
    Panel Driver ICHX8282A+HX8695_B01-
    Panel Driver ConditionVCI=3.3VV
    BacklightWhite LED-
    Touch PanelWithout Touch Panel-
    Cap Touch Driver IC- - --
    Cap Touch Driver Condition- - -V
    Operation Temperature-20~70
    Storage Temperature-30~80

    Pin Description


    Pin NO.SymbolDescription
    1VCOMTFT Common Electrode Voltage
    2,3VDDAnalog Power
    4NCDisconnect pin
    5RESX

    Global reset pin.Active low to enter Reset State.

    Suggest to connecting with an RC reset circuit for stability.


    6


    STBYB

    Standby mode control. Normally pull High.

    When STB=H, all the functions are on. (Default pulls high). When STB=L, TCON and source driver are off and all output are High-z.

    7GNDGround
    8D0NNegative LVDS differential data inputs
    9D0PPositive LVDS differential data inputs
    10GNDGround
    11D1NNegative LVDS differential data inputs
    12D1PPositive LVDS differential data inputs
    13GNDGround
    14D2NNegative LVDS differential data inputs
    15D2PPositive LVDS differential data inputs
    16GNDGround
    17DCKNNegative LVDS differential clock inputs
    18DCKPPositive LVDS differential clock inputs
    19GNDGround
    20D3NNegative LVDS differential data inputs
    21D3PPositive LVDS differential data inputs
    22GNDGround
    23-24NCDisconnect pin
    25GNDGround
    26NCDisconnect pin

    27


    DIMO

    Backlight dimmer signal for external controller.

    DIMO=H, Logical control signal to turn on external backlight controller.

    DIMO=L, Turn off external backlight controller.

    28

    HSD

    6-bit/8-bit input select. HSD= “L”, 8-bit; HSD= ‘ H ” , 6-bit
    29AVDDPower supply for analog circuits
    30GNDGround
    31,32LED_KLED Cathode

    33

    L/R

    Source Right or Left sequence control. Normally pull high. SHLR = “L”, shift left;

    SHLR = ‘ H ” , shift right


    34


    U/D

    Gate Up or Down scan control. Normally pull low. UPDN = “L”,From top to bottom;

    UPDN = “H”, From bottom to top .

    35VGLPower supply for drive output Low

    36


    CABCEN1

    CABC H/W enable pin. Normally pull low.

    When CABC_EN=”00”, CABC OFF. (Default mode) When CABC_EN=”01”, User interface Image.

    When CABC_EN=”10”, Still Picture. When CABC_EN=”11”, Moving Image.

    37

    CABCEN0

    38VGHPower supply for drive output High
    39,40LED_ALED Anode
