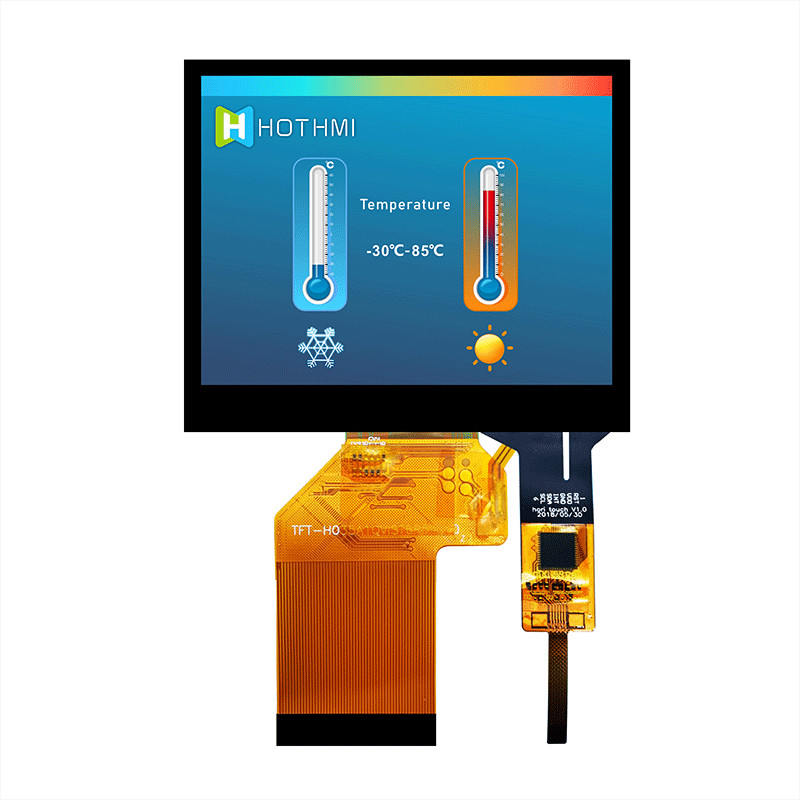

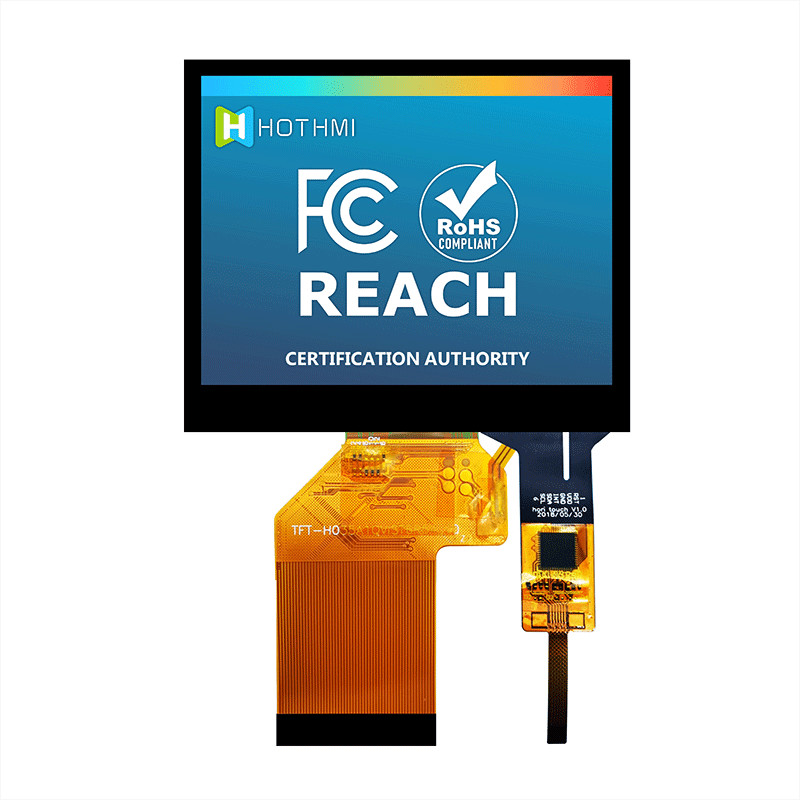

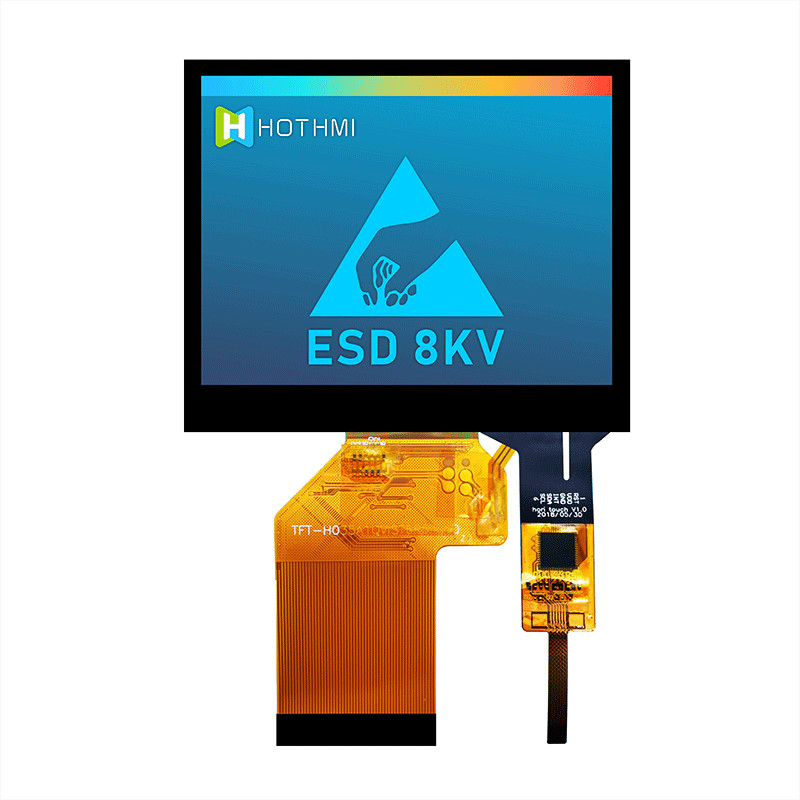

3.5" TFT Touch Screen/3.5" TFT LCD Screen 320x240/TFT-H035A1QVIST6C54

Product parameters

Product Type - TFT Landscape
Display Content - 320x240
Display Dimensions (mm) - 3.5"
Perspective - Full Perspective
Backlight brightness - 600cd/m2
Connection method PIN number - FPC-54PIN
Interface - RGB+SPI
Special Instructions - TTL8/24-BIT
Working temperature - (-30~85℃)
Supply Voltage - 3.3v

General Feature:

Pin Description

CTP Pin Description

Product Description
Product Description The TFT-H035A1QVIST6C54 is a 3.5-inch wide temperature IPS TFT-LCD monitor with a projected capacitive touch screen with a resolution of 320x240 pixels. The module has built-in ST7272A driver IC and supports RGB+SPI interface. TFT-H035A1QVIST6C54 adopts IPS panel, which has the advantage of wider viewing angle, left: 80/right: 80/up: 80/down: 80 degrees (typical), contrast ratio 600:1 (typical), brightness 600 nits (typical) value), glare panel, 4:3 aspect ratio. Support I2C interface and multi-touch function. The H035A1 model features a projected capacitive touch panel (CTP). The supply voltage (VCC) of the TFT-H035A1QVIST6C54 is 3.0V to 3.6V, with a typical value of 3.3V. It can work at temperatures from -30°C to +85°C and storage temperatures from -30°C to +85°C.

Search keyword: tft 3.5, tft 3.5", 3.5 tft lcd, 3.5" tft lcd, 3.5 inch tft lcd, tft lcd 3.5, 3.5 tft display, 3.5" tft display, 3.5 inch tft display, tft display 3.5, tft display 3.5"

TFT-H035A1QVIST6C54-CTP.pdf
