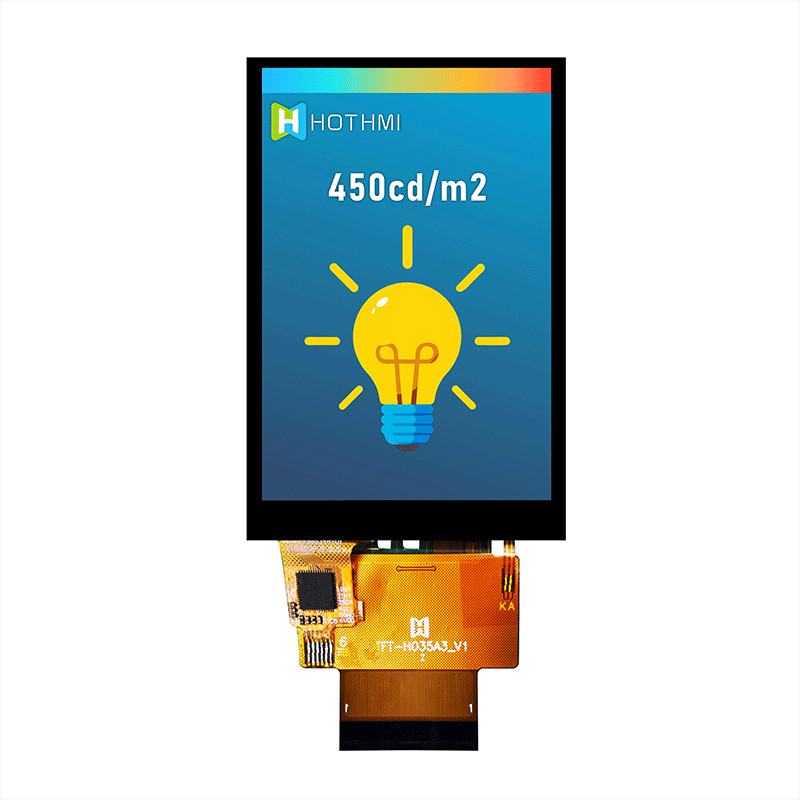

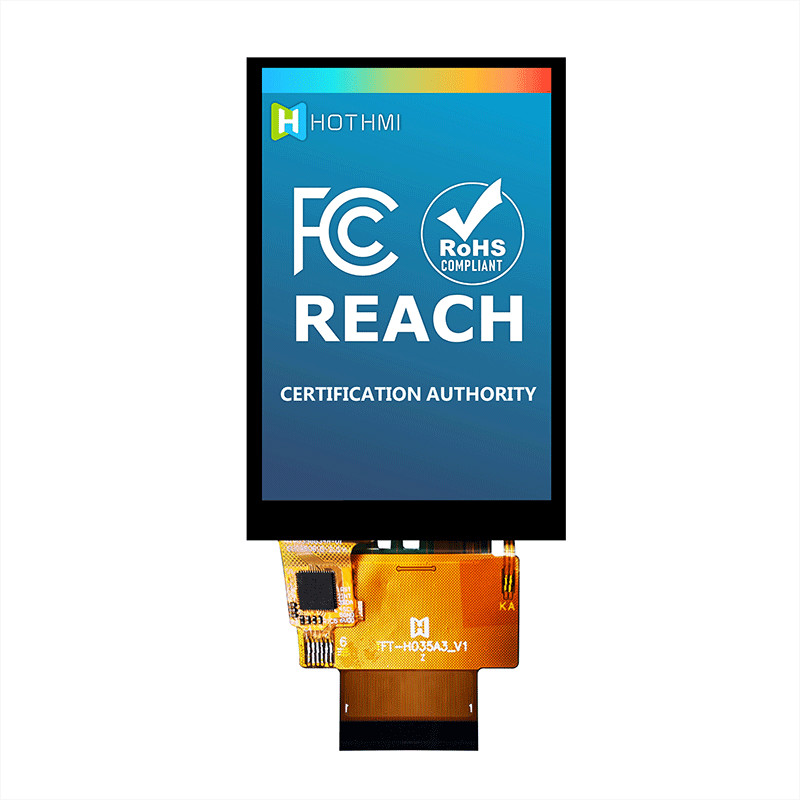

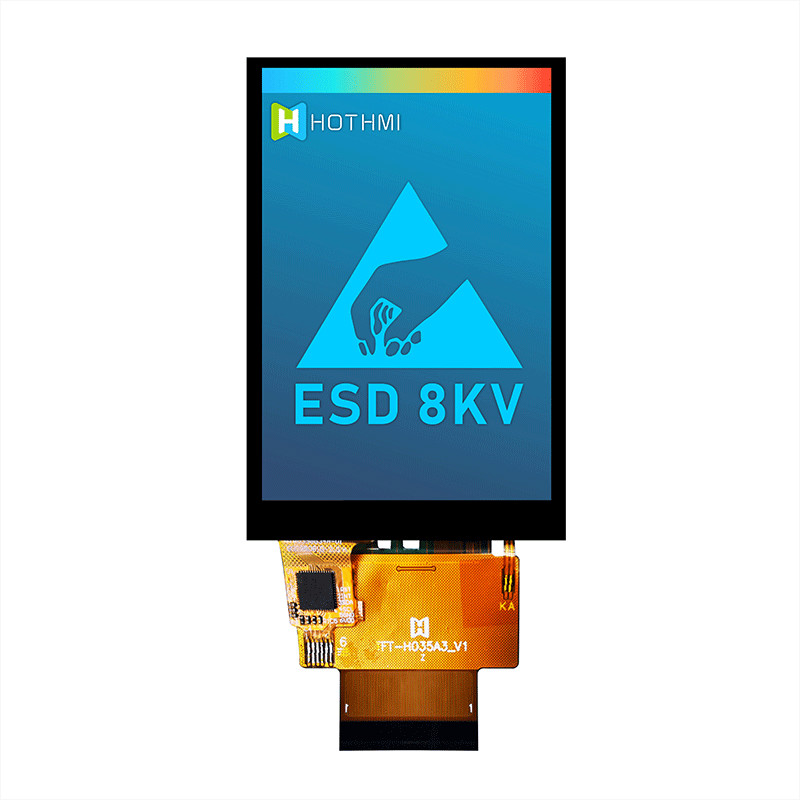

    3.5 inch 320x320 TFT LCD Module Practical Vertical Pcap Monitor

    Ask Lasest Price
    Brand Name : HOTHMI
    Model Number : TFT-H035A3HVIST4C50
    Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram
    Supply Ability : 99999
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    3.5 inch 320x320 TFT LCD Module Practical Vertical Pcap Monitor

    3.5" TFT Touch Screen/3.5" TFT LCD Screen/320x320 Pixels/TFT-H035A3HVIST4C50


    Product parameters


    Dimensions (mm) - 54.76x83.58x2.5
    Viewport Window Size - 3.5"
    Product Application - Industrial Instrumentation
    Connection method PIN number - FPC-50PIN

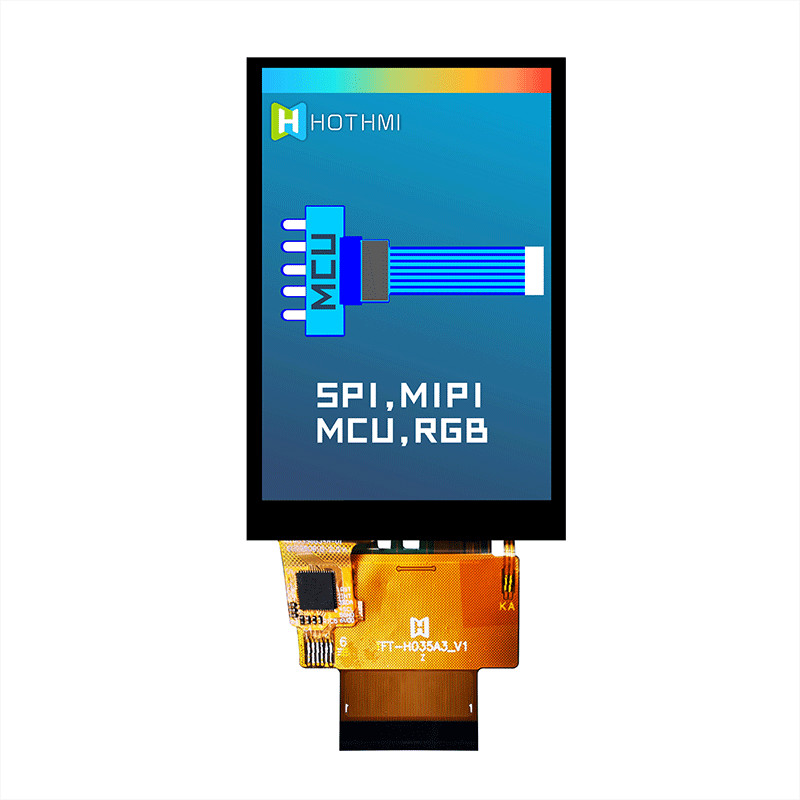

    Interface - MCU/SPI/RGB/MIPI
    Working temperature - (-20~70℃)
    Supply Voltage - 3.3v
    Driver chip model - ST7796S


    General Feature:


    Item

    Standard Value

    Unit

    Display Size

    3.5”-

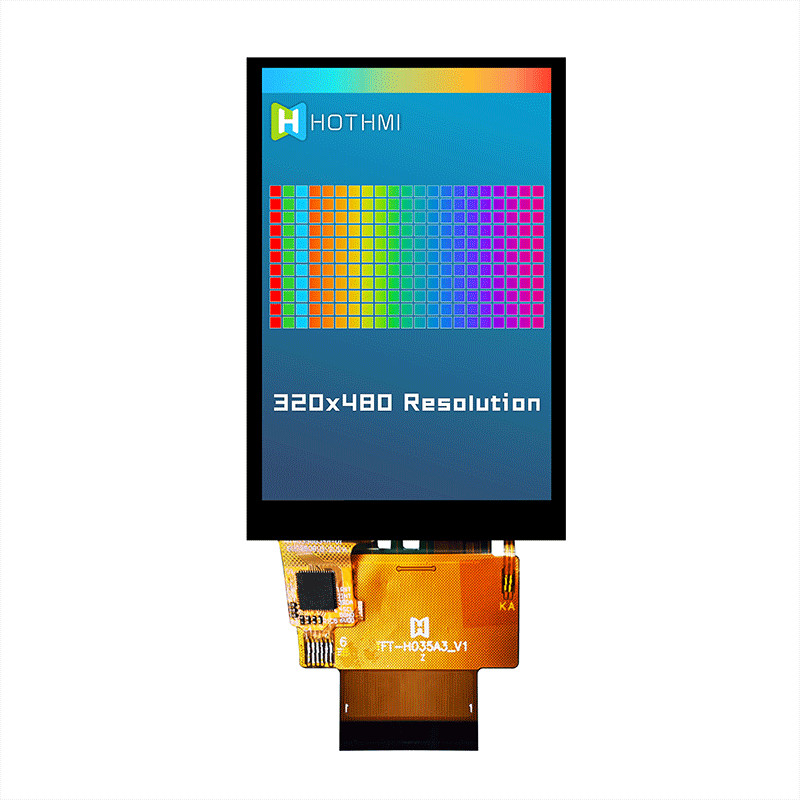

    Number of Pixels

    320(H)x3(RGB)*480(V)-

    Active Area

    48.96(H) * 73.44(V)mm

    Outline Dimension

    54.76H) * 83.58(V) * 3.95(D) <TFT+CTP>mm

    Viewing Direction

    FULL O'clock

    -

    TFT Interface

    Compatible interface, determined by IM[0-2]-

    TFT Driver IC

    ST7796S-

    TFT Driver Condition

    VCI=2.8V,IOVCC=1.8V(Typ)V

    Backlight

    White LED/6 PCS/Series-

    Touch Panel

    Whit CTP

    -

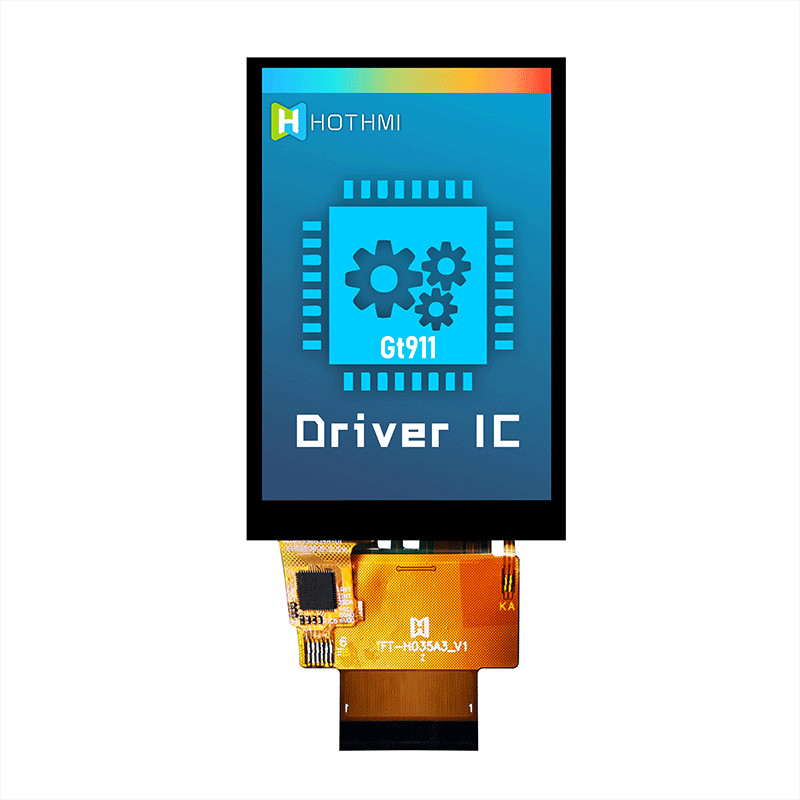

    CTP Driver IC

    GT911-

    CTP Driver Condition

    VDD=3.3V(Typ)V

    Operation Temperature

    -20 ~ 70

    Storage Temperature

    -30 ~ 80

    Pin Description


    Pin NO.

    Symbol

    Description

    1LEDALED Anode
    2LEDKLED Cathode
    1LED_ALED Anode
    2LED_KLED Cathode
    3GNDGround
    4MIPI_DN

    ♦ Low voltage differential data signal

    ♦ Leave the pin to open when not in use.

    5MIPI_DP
    6GNDGround
    7MIPI_CN

    ♦ Low voltage differential clock signal

    ♦ Leave the pin to open when not in use.

    8MIPI_CP
    9GNDGround
    10~12IM[0~2]The MCU interface mode select
    13RESETTFT Reset Pin.Signal is active low.
    14VSD

    ♦ Vertical synchronizing input signal for RGB interface.

    ♦ If not used, please fix this pin at GND.

    15HSD

    ♦ Horizontal synchronizing input signal for RGB interface.

    ♦ If not used, please fix this pin at GND.

    16PCLK

    ♦ Dot clock signal for RGB interface.

    ♦ If not used, please fix this pin at GND.

    17DEN

    ♦ Data enable signal for RGB interface.

    ♦ If not used, please fix this pin at GND.

    18~35DB[17~0]DataBus.Ifnotused,pleasefixthispinatGND.
    36SPI_SDO

    ♦ SPI interface output pin.If not used, let this pin open.

    ♦ The data is outputted on the falling edge.


    37


    SPI_SDI

    ♦ SPI interface input/output pin.

    ♦ The data is latched on the rising edge.

    ♦ If not used, please fix this pin at GND.

    38RDX

    ♦ Read enable in 8080 MCU parallel IF. Low-active.

    ♦If not used, please fix this pin at GND.


    39

    WRX SPI_SCL

    ♦ Write enable in MCU parallel interface

    ♦ In SPI mode, this pin is used as SCL.

    ♦ If not used, please fix this pin at GND.

    40DCX

    ♦ Display data/command selection pin in parallel IF.

    ♦ If not used, please fix this pin at GND.

    41CSX/SPI_CS

    ♦ Chip select input pin (“Low” enable).

    ♦ If not used, please fix this pin at GND.


    42


    TE

    ♦ Tearing effect signal is used to synchronize MCU to frame memory writing.

    ♦ If not used, please let this pin open.

    43VCIDigital Power
    44GNDGround
    45NC/CTP_VDD

    ♦ Power supply input for CTP.

    ♦ If not used, please let this


    pin


    open.


    46

    RTP-XR CTP-SCL

    ♦ CTP Serial clock signal.

    ♦ RTP XR control signal

    ♦ If not used, please let this pin open.


    47

    RTP-YD CTP-SDA

    ♦ CTP Serial data input signal.

    ♦ RTP YD control signal

    ♦ If not used, please let this pin open.


    48

    RTP-XL CTP-INT

    ♦ CTP_External interrupt to the host.

    ♦ RTP XL control signal

    ♦ If not used, please let this pin open.


    49

    RTP-YU CTP-RES

    ♦ CTP Reset Pin.

    ♦ RTP YU control signal

    ♦ If not used, please let this


    pin


    open.

    50GNDGround

    Search keyword: tft 3.5, tft 3.5", 3.5 tft lcd, 3.5" tft lcd, 3.5 inch tft lcd, tft lcd 3.5, 3.5 tft display, 3.5" tft display, 3.5 inch tft display, tft display 3.5, tft display 3.5"
