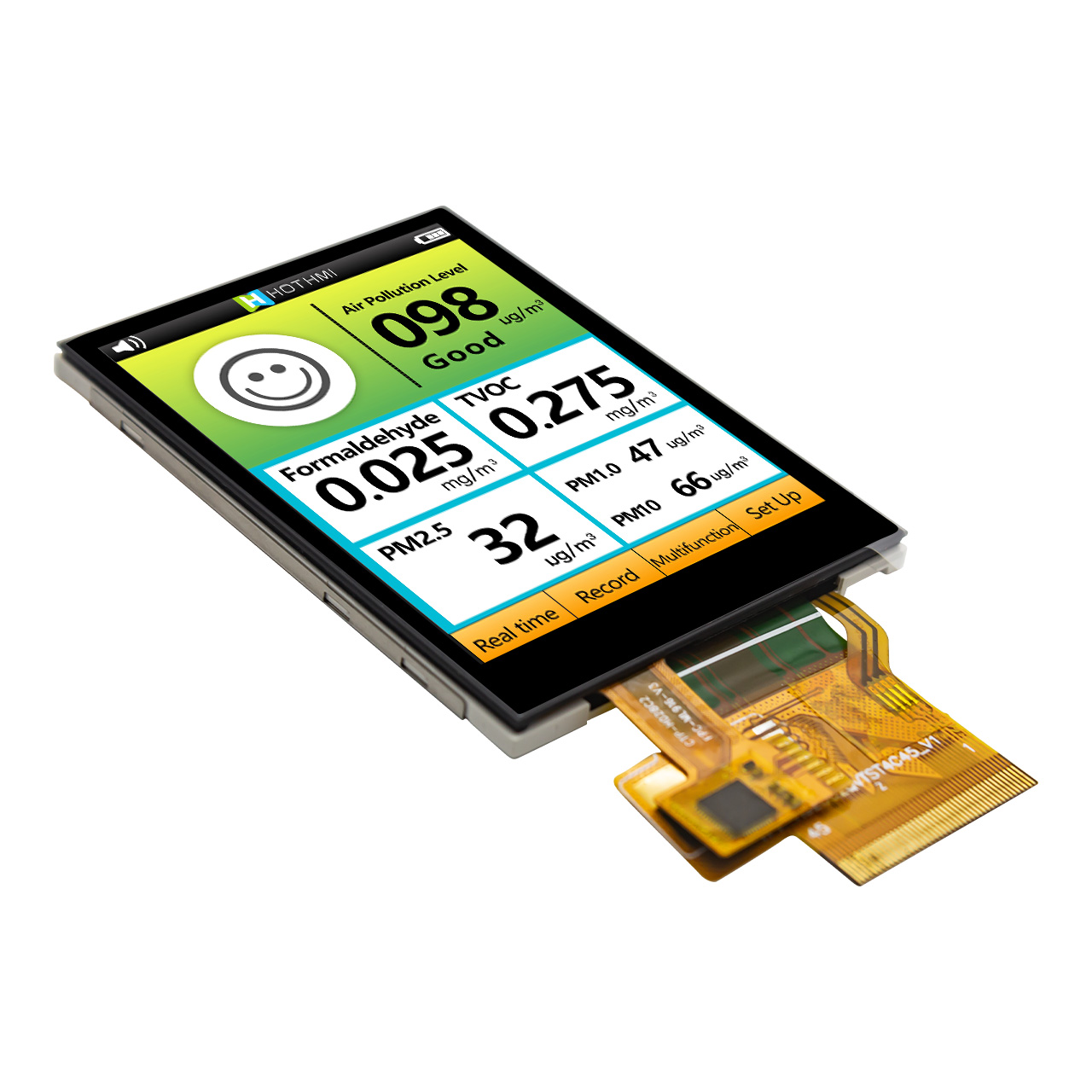

2.8 inch Portrait 240x320 MCU RGB SPI TFT LCD Module with CTP/TFT-H028C2QVTST4C45

Product parameters

Display Size - 2.8"
Viewing Angle - 12H
Backlight brightness - 280cd/m2
Connection method PIN number - FPC-45PIN
Interface - SPI, RGB, MCU
Special Instructions - Can be equipped with CTP
Operating temperature - (-20~70℃)
Supply Voltage - 3.3V
Driver chip model - ST7789V

General Feature:

Pin Description

The TFT-H028C2QVTST2C45 is a 2.8-inch wide temperature IPS TFT-LCD display with projected capacitive touchscreen with a resolution of 240x320 pixels. The module has built-in ST7789V driver IC and supports SPI/RGB/MCU fully compatible interface. TFT-H028C2QVTST2C45 adopts IPS panel, which has the advantage of wider viewing angle, left: 80 / right: 80 / top: 80 / bottom: 80 degrees (typ.), contrast ratio 800:1 (typ.), brightness 280 nits (typ. value), glare panel, 16:9 aspect ratio. The touch screen has built-in FT6336U IC, which supports I2C interface and multi-touch function. The H028C2Q model has a projected capacitive touch panel (PCAP) but no touch panel option (TFT-H028C2QVTST3N45). The supply voltage (VCC) of the TFT-H028C2QVTST2C45 is 3.0V to 3.6V, with a typical value of 3.3V. It can work at temperatures from -20°C to +70°C and storage temperatures from -30°C to +80°C.

TFT-H028C2QVTST4C45_4.pdf
