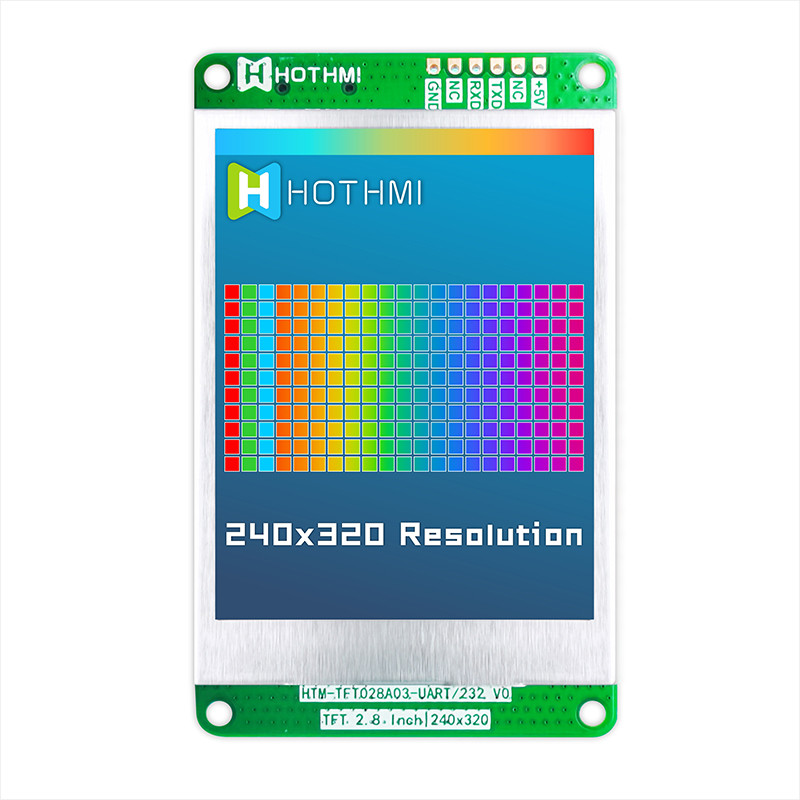

    2.8 Inch UART Display Module , 240x320 Intelligent Display Modules

    2.8 Inch 240x320 Dots UART Interface TFT Display With Resistive Touch/HTM-TFT028A03-UART


    General Feature


    HTM-TFT028A03-UART is one of the EzUI series serial intelligent display modules. The module display is a 2.8-inch color TFT display, 240×320 dot matrix, 16-bit color depth; there is a 16M-byte Flash memory inside the module to store pictures, GIF animations, Information such as font library. The module is powered by a USB interface of 5.0V DC, and the external interface of the module is a serial UART (TTL level) interface. The interface is simple and easy to operate; convenient and simple interface operations can be carried out with various MCUs.

    The biggest feature of EzUI series modules is easy to use and rich in functions, which can be simple or complex for users. The MCU program inside the module already contains the UART serial port protocol. The user can use the PC upper computer software (UI_Editor) to directly develop the product's UI display interface on the computer, and use the resource files generated by the tool software through the USB interface and the communication software (LT_VCOM_GUI) ) Update the internal MCU program and SPI Flash data.

    The built-in serial port command function of the module includes picture display, GIF animation display, cycle picture display, boot screen display, vertical bar display, text string display, two-dimensional code generation, and geometric graphics display such as drawing lines, drawing circles, Functions such as drawing triangles and rectangles


    ItemStandard ValueUnit
    LCD Display Size2.8"--
    LCD Number of Pixels240(H)x3(RGB)x320(V)--
    LCD Active Areamm
    LCD Display Colors262K(16-bit/565 format)Color
    Viewing DirectionFULL O'clock-
    LCM Outline Dimensionmm
    LCM Driver Voltage+5.0VV
    BacklightWhite LED-
    Touch typeNo touch/button operation-
    Real Time ClockBuilt-in-
    Operation Temperature-20~70
    Storage Temperature-30~80

    Pin Description


    Pin NO.SymbolDescription
    1DC5VPower Supply
    2TXDModule UART data transmission port
    3RXDModule UART data receiving port
    4GNDGround

    5

    BUSY

    This pin is the busy status output of the serial screen, and the host can know whether the serial screen is busy from this signal.

    Before updating the LCM SPI Flash data or MCU program, this pin needs to be pulled low to enter the "USB_Update" mode. Then connect the board to the computer with a USB cable
