    6.86 Inch 480x1280 Bar Type Round TFT LCD Sunlight Readable NV3051F1

    Ask Lasest Price
    Brand Name : HOTHMI
    Model Number : TFT-H068A1ZAINVKN40
    Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram
    Supply Ability : 99999
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    6.86 Inch 480x1280 Bar Type Round TFT LCD Sunlight Readable NV3051F1

    6.86 Inch 480x1280 Sunlight Readable Displays TFT LCD NV3051F1/TFT-H068A1ZAINVKN40


    Product parameters

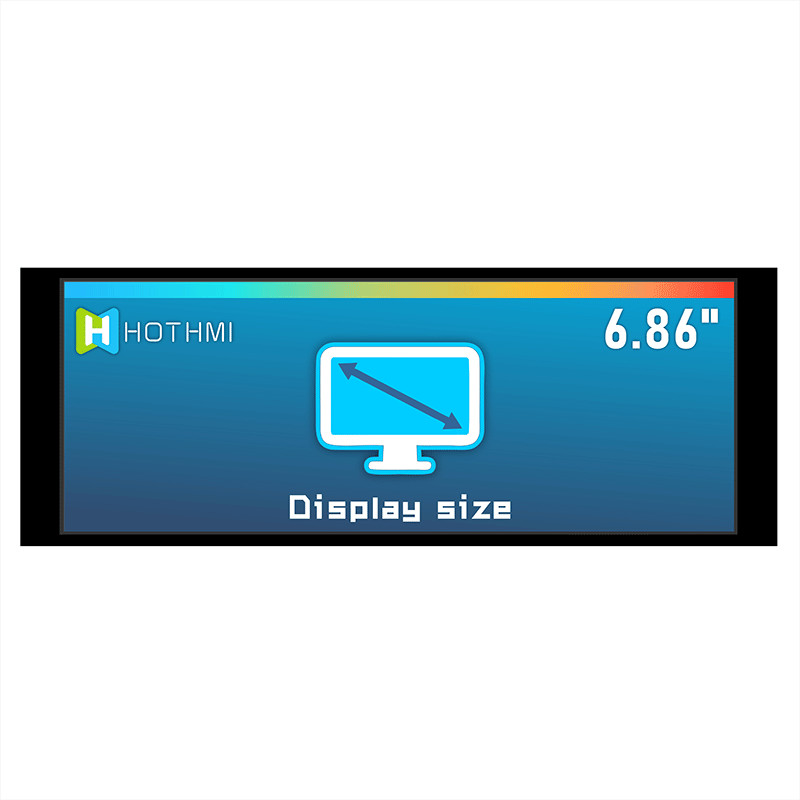

    Display Size - 6.86 inch
    Effective size (mm) - 60.2208x160.5888
    Perspective - Full View
    Connection method PIN number - FPC-40PIN
    Interface method - LVDS 4L
    Working temperature - (-20~70℃)
    Supply Voltage - 3.3V
    Driver chip model - NV3051F1


    General Feature


    Item

    Standard Value

    Unit

    Display Size6.86”-
    Number of Pixels480(H)*3(RGB)* 1280(V)-
    Active Area60.2208(H)* 160.5888(V)mm
    Outline Dimension67.00(H) * 181.30(V) * 4.70(D) <TFT>mm
    Viewing DirectionFULL O'clock-
    TFT InterfaceLVDS 4L(8Bit/VESA format)-
    TFT Driver ICNV3051F1-

    TFT Driver Condition

    VCI=2.8V,IOVCC=1.8V(Typ)V
    BacklightWhite LED/10 PCS/5 series 2 parallel-
    Touch PanelWhitout TP-
    CTP Driver IC- - --
    CTP Driver ConditionVDD=3.3V(Typ)V
    Operation Temperature-20 ~ 70
    Storage Temperature-30 ~ 80

    TFT Pin Description


    Pin NO.SymbolDescription
    1GNDGround
    2D0PLVDS data Input.
    3D0NLVDS data Input.
    4GNDGround
    5D1PLVDS data Input.
    6D1NLVDS data Input.
    7GNDGround
    8DCKPLVDS clock Input
    9DCKNLVDS clock Input
    10GNDGround
    11D2PLVDS data Input.
    12D2NLVDS data Input.
    13GNDGround
    14D3PLVDS data Input.
    15D3NLVDS data Input.
    16~17GNDGround
    18~19VCIAnalog Power(2.6 ~ 3.3 V,2.8V Type)
    20~23NCOpen Pin
    24RESXGlobal reset pin. Active low to enter reset state.
    25STBYBConnector to “Pin 18”
    25NCOpen Pin
    27GNDGround
    28~29LEDKBacklight cathode
    30GNDGround
    31NCOpen Pin
    32~33GNDGround
    34NCOpen Pin
    35~36LEDABacklight anode
    37GNDGround
    38~39VCIAnalog Power(2.6 ~ 3.3 V,2.8V Type)
    40NCOpen Pin
