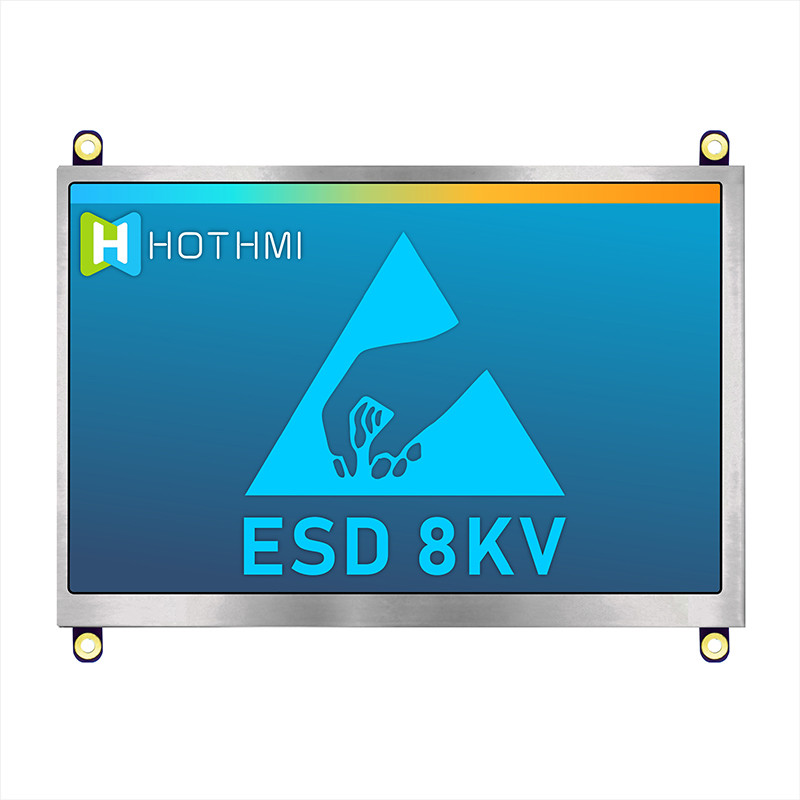

7.0 Inch 1024x600 IPS HI TFT Module/HTM-TFT070A07-HI
HTM-TFT070A07-HI | 7.0" IPS LCD | HI TFT Module | High Resolution
1024x600px Screen | No Touchscreen
This IPS TFT LCD module has built-in HI compatibility for a
streamlined connection between devices with fewer cables. Assembled
to the display is a custom PCB providing the user an plug-and-play
HI interface solution. It is attached to a steel mounting bracket
for easy, secure installation. Whether you need a display for your
Raspberry Pi, BeagleBone, Windows, or a touchscreen HMI for your
Linux or other embedded system, this display offers a solution. The
24-bit true color LCD has a high resolution 1024X600 screen with
IPS technology, providing superior image quality, accurate color
reproduction, and high contrast ratio at every angle. This Liquid
Crystal Display is RoHS compliant and does not include a
touchscreen.
General Feature
Item | Standard Value | Unit |
Display Size | 7.0 | Inch |
Number of Pixels | 1024x600 | dots |
Active Area | 166.100x119.00x20.30mm | mm |
Outline Dimension | 154.21x85.92mm | mm |
Viewing Direction | FULL O'clock | - |
Interface | HI | - |
Driver IC | T.B.D | - |
Driver Condition | VCI=9~24V(Typ) | V |
Backlight | White LED/12 PCS/6 PCS serial 2 ways parallel | - |
Touch Panel | WHITOUT TOUCH |
CTP Driver IC | - | - |
Driver Condition | VDD=9~24V | V |
TFT Operation AT | -10 ～ +60 | ℃ |
TFT Storage AT | -20 ～ +70 | ℃ |
Product introduction
7.0 inch standard display, 1024x600 HD resolution
The display brightness is up to 500 cd/m 2 and the lifetime is up
to 30,000
hours. Of course, higher brightness and longer life can be
customized as
needed.
Support OSD control keys to help users adjust the LCD to the best
state
for different applications, OSD menu can be switched between
Chinese and
English. Of course, other languages can be customized as needed.
Supports HI 1.4A compliant digital input interface
Support multi-point USB interface drive-free capacitive touch
screen.
Default setting is 6 points, up to 10 points. But 10-point touch
does not
support XP system.
Support panel embedded installation, only need 4 screws to fix the
PCB,
easy installation and maintenance
Compatible with mainstream operating systems and embedded operating
systems such as
DOS/Windows98/2000/XP/win7/win8/win10/Embedded/Linux.
All Products
| Reliability Testing | Customers can expect all production parts to meet or exceed
operational requirements over temperature, humidity, and vibration. |
| Glass Cleanliness | Customers can expect glass to be protected by liners and presented
mindful of cleanliness standards. This means glass will be clean of
contaminants, fingerprints, and other foreign material. |
| Bezel Appearance | Bezels will be uniformly painted free of foreign materials and
distracting cosmetic blemishes. Our standards maintain a clean
scratch-free surface. |
| PCB Appearance | PCB’s are delivered with long-term reliability in mind. Finishes
are free of bubbles, foreign contaminants, and meet all UL fire
requirements. PCB materials will always be delivered within
industry norms. PCB edges will be cleanly cut and void of burrs. |
| Soldering | Soldering of all leaded and SMT components is consistent in
providing the mechanical security and electrical connectivity. |
| Consistency | Our manufacturing and inspection processes ensure product
consistency from lot to lot. This means orders processed over the
years will continually meet your expectations. We do this by
exacting manufacturing specifications, with attention to detail in
our processes, and by comparing to the golden units. |
| Product Integrity | Quality in product manufacturing ensures integrity in construction.
Customers can expect tight assembly without worry of loose parts or
missing material. Our products will meet all environmental
expectations including temp, humidity, & vibration conditions. |
| Glass Color | While normal variations of glass color may occur (due to
manufacturing tolerances), Newhaven Display maintains color
compliance per internal approved color charts. These charts are
maintained to ensure any minor glass deviations are identified and
corrected as needed. |
| ESD Protection & Safety | All devices are designed and handled in consideration of ESD
protection. This includes ESD-SAFE packaging within anti-static
bags, wraps, and trays. Customers are reminded to always follow ESD
safety to best protect the devices. |
