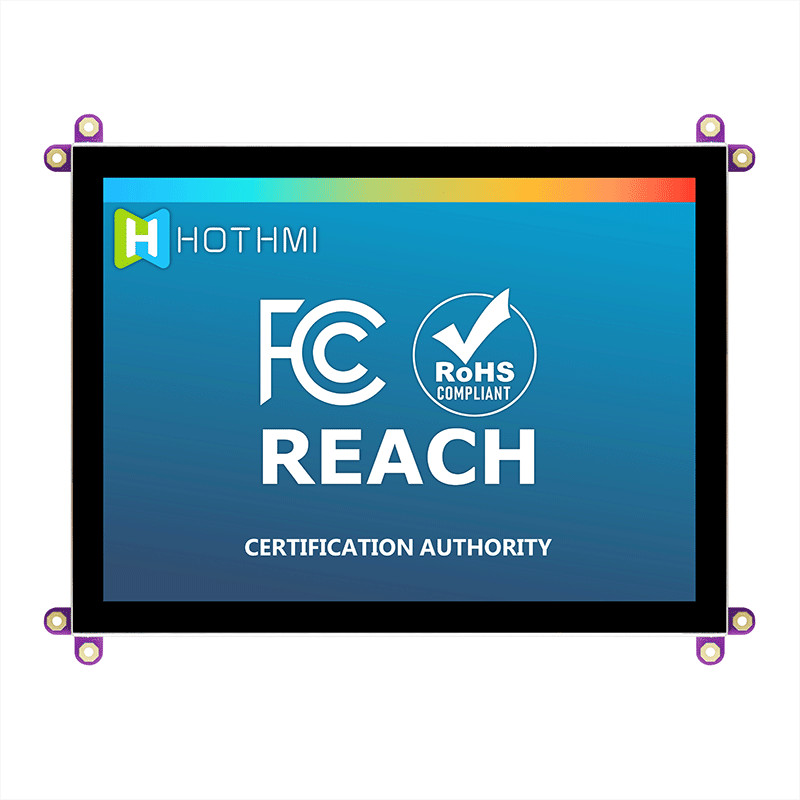

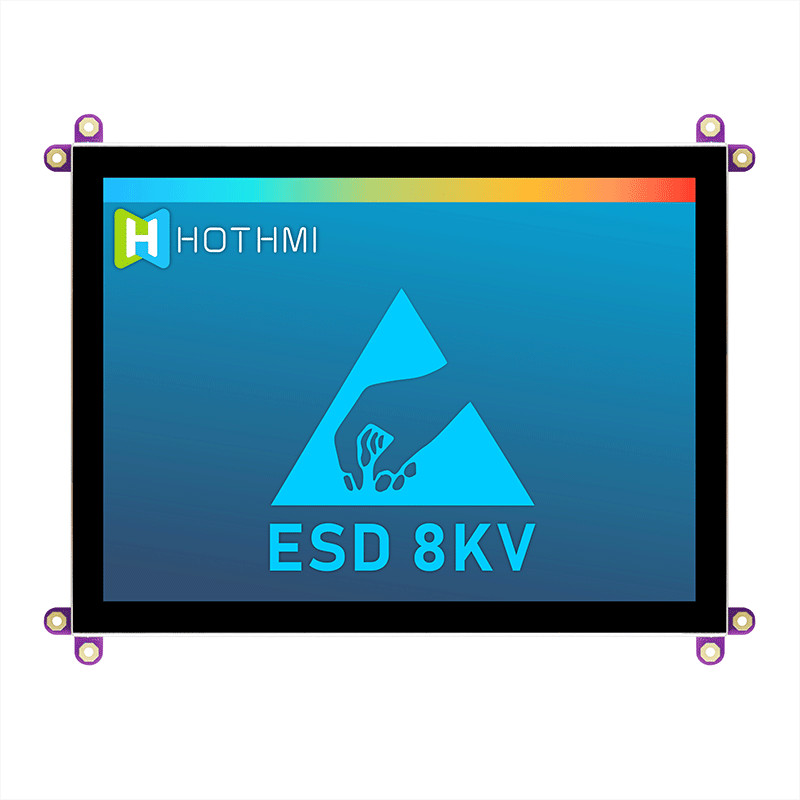

8 Inch 1024x768 For HI Signal TFT Display With Capacitive Touch/TFT-080T61SVHDVNSDC

Product parameters
Dimensions (mm) - 203x161x21.8
Display Size - 8.0 inch
Effective size (mm) - 162.05x121.54
Viewing Angle - 12H Viewing Angle
Connection method PIN number - FPC-46PIN
Interface - HI, VGA interface
Working temperature - -20~70℃
Supply Voltage - 9~24V

- 300 cd/m² brightness, 30,000 hours long-life backlight. There is a need to customize 500 ～ 1000 higher brightness, or 50000 hours longer life backlight
- Support OSD control buttons to help users adjust the LCD screen to the best state for different application environments,OSD menu can be switched in Chinese and English.
- Support VGA and HI 1.4a signal input (choose one when using, cannot
identify at the same time)
- Supports multi-point USB interface drive-free capacitive touch screen
- Support panel embedded installation, only need4 screws to fix the PCB,
easy installation and maintenance
- Compatible with mainstream operating systems and embedded operating systems such as DOS/Windows98/2000/XP/win7/win8/win10/Embedded/Linux.

HI Type A Connector Description

VGA Connector Description

DESCRIPTION
080T61SVHDVNSDC with a 46-pin header connector on board, supports up to Raspberry Pi 3B+ (contain Pi 4B) version. If customers choose Raspberry Pi 4 version, please note the interface is Micro HI; customers need to use the Micro HI to HI cable for HOTLCD this series products.




LCM-TFT080T61.pdf
