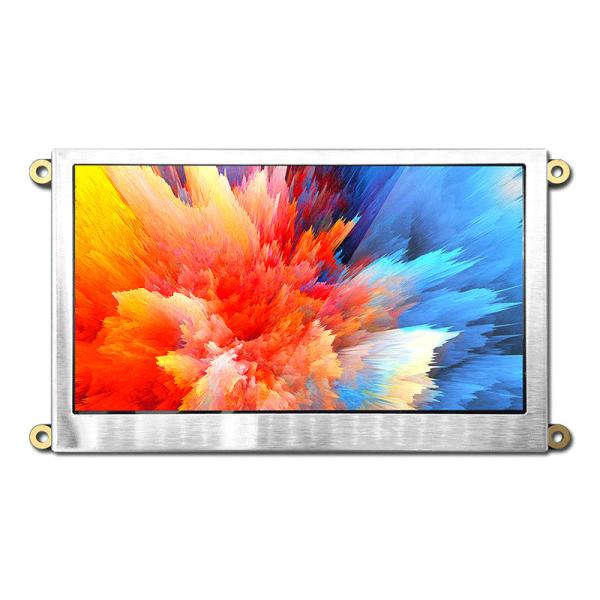

4.3 Inch 800x480 Dots Support HI Connector TFT
Display/TFT-043T6SVHDVN20Z
Product parameters

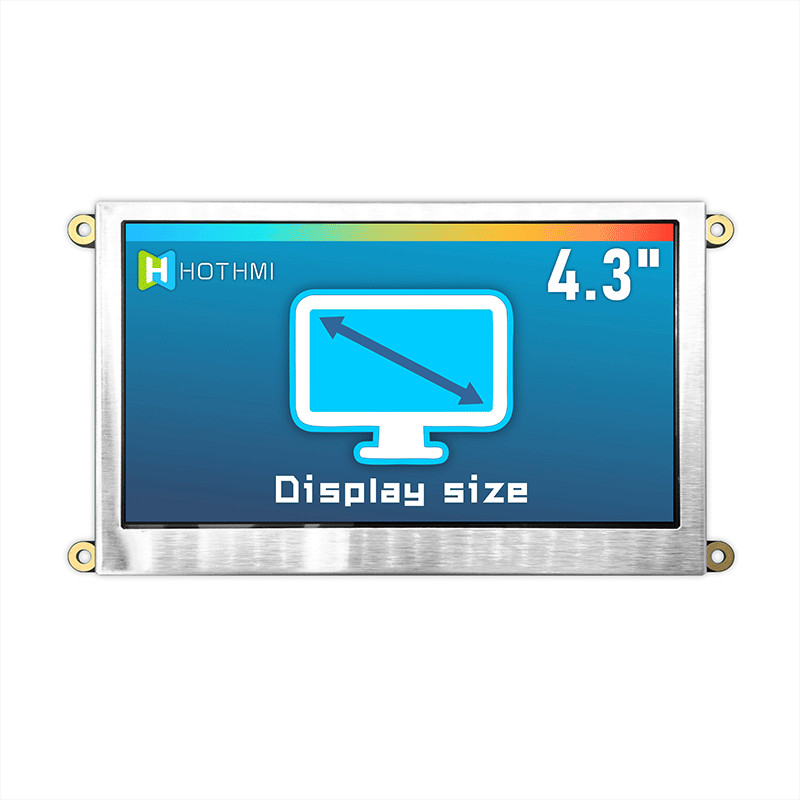

Display Size - 4.3"
Perspective - Full View
Backlight type or brightness - 500cd/m2
Connection method PIN number - FPC-20PIN
Interface method - HI signal
Working temperature - (-30~80℃)
Supply Voltage - 5.0V
Driver IC Model - T.B.D
Item | Standard Value | Unit |
| Display Size | 4.3 | Inch |

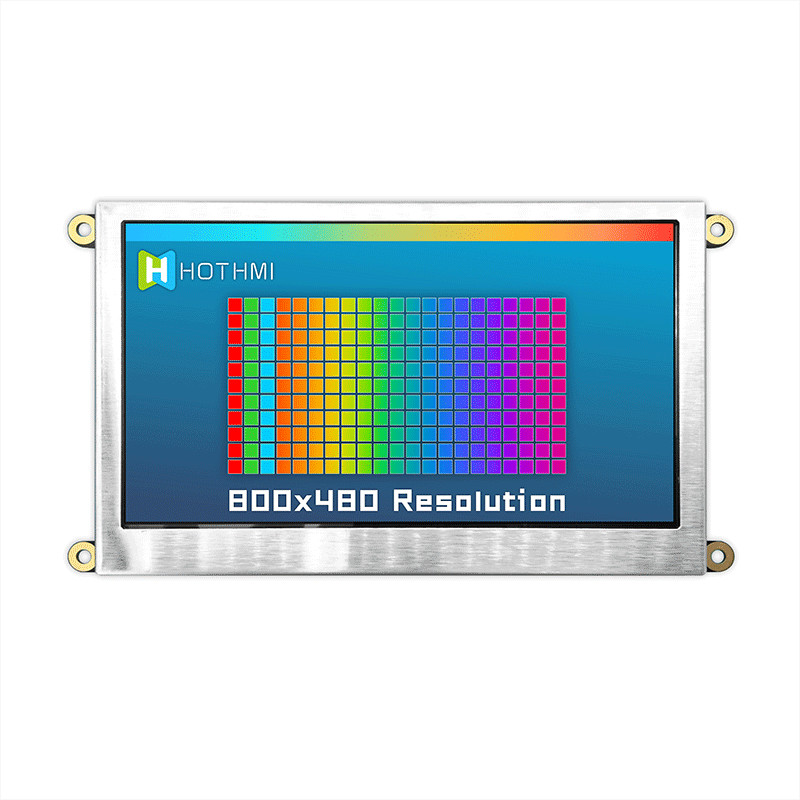

| Number of Pixels | 800(H)*3(RGB)* 480(V) | dots |
| Active Area | 95.04(H)* 53.86(V) | mm |
| Outline Dimension | 120.00(H) * 68.20(V) * 14.80(D) <TFT> | mm |
| Viewing Direction | Full O'clock | - |
| TFT Interface | HI 1.4 | - |
| Driver Condition | 5V/1A 以上 | - |
| Module brightness | 500 | cd/m2 |
| Touch Panel | Without TP | - |
| Operation Temperature | -30 ～ 80 | ℃ |
| Storage Temperature | -30 ～ 80 | ℃ |
| Product weight | 90 ( With heatsink) | g |
Product introduction
♦ 4.3inch standard display, 800×480 HD resolution
♦ Support backlight PWM brightness control/on/off control
♦ Support OSD menu function (OSD menu can be switched in Chinese
and English)
♦ Connector DF19G-20P-1H or HI A port input (choose one out of two)
♦ Can be used as a general HI display, such as connecting to a
computer HI as a secondary display
【How to Use as a Computer Monitor】
♦ Method 1: Use the HI cable to connect the computer HI output
signal, backlight PWM control signal and
5V power supply voltage to the connector DF19G-20P-1H of the LCM;
♦ Method 2: Connect the HI output signal of the computer to the HI
A connector of the LCM using an HI
cable, and connect the 5V power supply to the Type-C female
connector of the LCM;
If there are multiple monitors, please unplug the other monitor
connectors first, and test this LCM as the only monitor.
Connector Definition
| Pin NO. | Symbol | Description |
| 1 | VDD1 | Digital Power(5V,HI Power) |
| 2 | VDD2 | Digital Power(5V) |
| 3 | GND | Ground |
| 4 | GND | Ground |
| 5 | HI_HPD | HPD Hot Plug Heartbeat |
| 6 | TMDS_SDA | TMDS interface SDA |
| 7 | TMDS_SCL | TMDS interface SCL |
| 8 | TMDS_CK- | TMDS clock input negative terminal |
| 9 | TMDS_CK+ | TMDS clock input positive terminal |
| 10 | GND | Ground |
| 11 | TMDS_D0- | TMDS data input 0 negative terminal |
| 12 | TMDS_D0+ | TMDS data input 0 positive terminal |
| 13 | GND | Ground |
| 14 | TMDS_D1- | TMDS data input 1 negative terminal |
| 15 | TMDS_D1+ | TMDS data input 1 positive terminal |
| 16 | GND | Ground |
| 17 | TMDS_D2- | TMDS data input 2 negative terminal |
| 18 | TMDS_D2+ | TMDS data input 2 positive terminal |
19 |
BLEN | Backlight on or off control signal input (3.3V TTL level to turn on
the backlight, low level or ground to turn off the backlight) |
| 20 | BL_PWM | Backlight brightness adjustment PWM control signal input , 100Hz to
30kHz (3.3V TTL) |
