    128X64 SPI FSTN Graphic LCD Display With White Side Backlight

    Ask Lasest Price
    Brand Name : HOTHMI
    Model Number : HTM12864-85
    Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram
    Supply Ability : 99999
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    128X64 SPI FSTN Graphic LCD Display With White Side Backlight

    128X64 SPI FSTN Graphic LCD Display With White Side Backlight


    128X64 Graphic LCD Module | FSTN + Display with White Side Backlight/HTM12864-85


    HTM12864-85 | Monochrome Graphic Module | 128x64 Pixels | Transflective LCD | Side White Backlight | FSTN (+) Positive Display | Built-in Negative Voltage | IN-STOCK

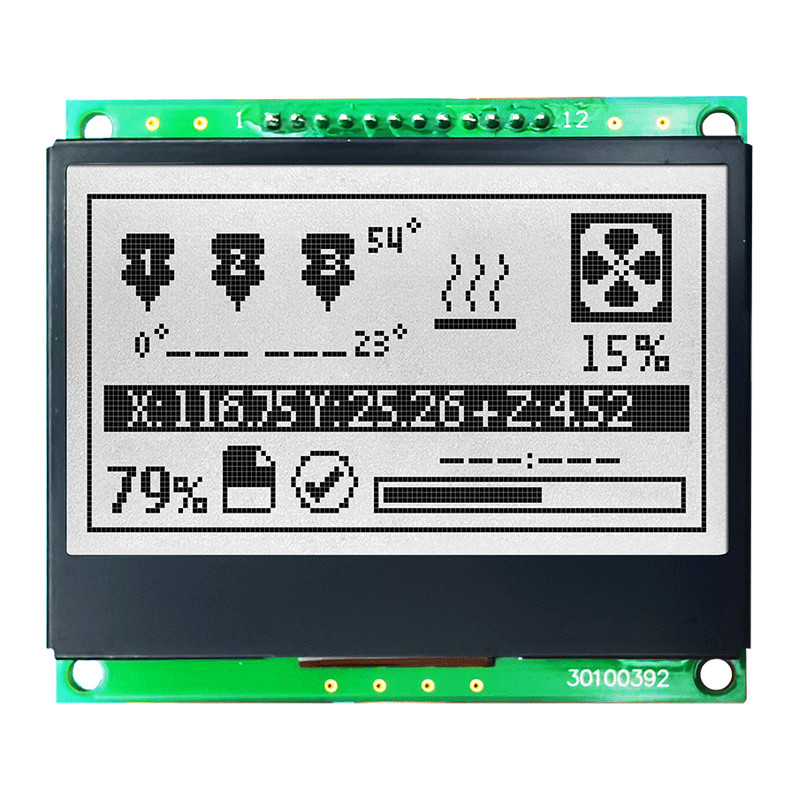

    HOTLCD 128x64 graphic Liquid Crystal Display module shows dark pixels on a white background. This transflective LCD Display is visible with ambient light or a backlight while offering a wide operating temperature range from -20 to 70 degrees Celsius. This HTM12864-85 display includes built-in negative voltage. It has an optimal view of 6:00, operates at 3.3V supply voltage and is RoHS compliant.


    Product parameters


    ITEMSTANDARD VALUEUNIT
    Number of dots128x64dots
    Module dimension71.0x62.0x7.8mmmm
    View display area65.5x38.8mm
    Dot size0.49x0.45mm
    Dot pitch0.515x0.475mm
    Operating temp-20~70
    Storage temp-30~80
    Driving Method1/ 128 DUTY,1/ 12 BIAS,VOP= 3.3V
    Viewing direction6H
    Display mode
    FSTN
    Display typeTRANSMISSIVE / NEGATIVE
    Driver IC
    ST7565R
    Backlight

    WHITE

    Product applicationindustrial control, instrumentation

    All Products


    Bezel AppearanceBezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface.
    PCB AppearancePCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs.
    SolderingSoldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity.
    ConsistencyOur manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units.

    Search Keyword: lcd 128x64, lcd 128 x 64, 128x64 lcd, 128 x 64 lcd

    128X64 SPI FSTN Graphic LCD Display With White Side Backlight128X64 SPI FSTN Graphic LCD Display With White Side Backlight128X64 SPI FSTN Graphic LCD Display With White Side Backlight

    LCD Custom Solutions

    Cable Customization

    Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

    128X64 SPI FSTN Graphic LCD Display With White Side Backlight
    128X64 SPI FSTN Graphic LCD Display With White Side Backlight

    Connector Customization

    Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.


    128X64 SPI FSTN Graphic LCD Display With White Side Backlight

    Interface Customization

    Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HI, USB, SPI, VGA and more into your display to achieve your design goals.


    128X64 SPI FSTN Graphic LCD Display With White Side Backlight

    PCB Modifications

    Choose from a wide selection of changes including shape, size, pinout, and component layout of your PCB to make it a perfect fit for your application.


    128X64 SPI FSTN Graphic LCD Display With White Side Backlight

    HTM12864-85-35W-A3S Manual.pdf
