TFT-H013A6QQIGC7N10-V1 | 1.28" TFT LCD | 240x240 pixels | SPI
interface | 10-pin FFC ZIF connection | Optional
capacitive/resistive touch screen

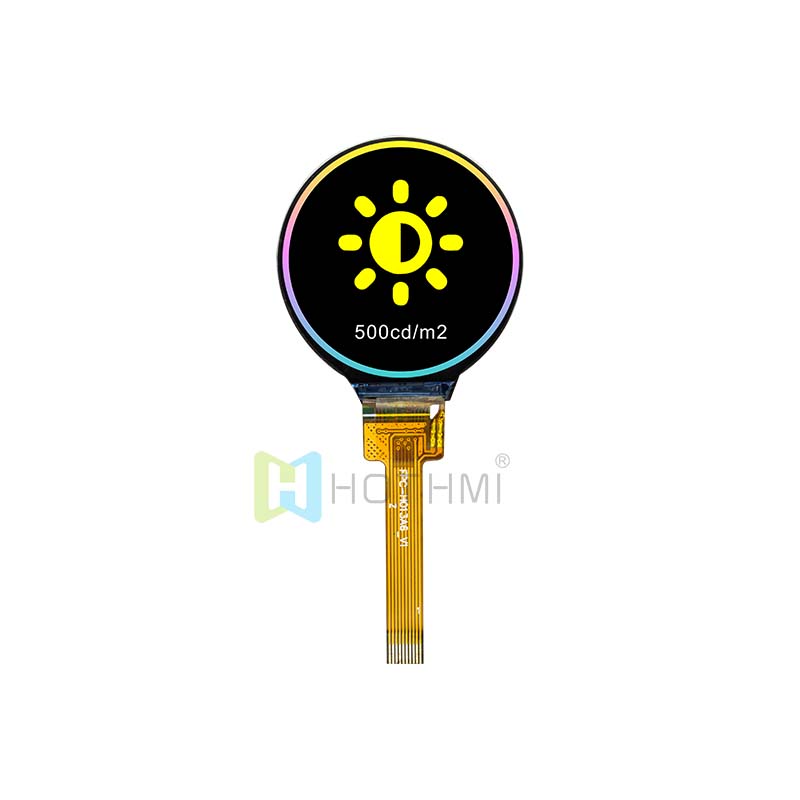

IPS 1.3 inch round SPI TFT LCD display Sunlight Readable GC9A01,the
TFT-H013A6QQIGC7N10-V1 is a circular IPS TFT-LCD screen with a
display diameter of 1.28 inches and a resolution of 240x240 pixels.
This circular TFT display consists of an IPS TFT-LCD panel with a
built-in GC9A01 driver IC that communicates via an SPI interface.
TFT-H013A6QQIGC7N10-V1 adopts IPS panel with higher contrast, pure
black background when display or pixel is off, left: 80 / right: 80
/ top: 80 / bottom: 80 degrees (typical) wider viewing angle,
contrast 1,000:1 ratio (typ), 750 nits brightness (typ), anti-glare
surface panel. If customers need capacitive touch screen, please
choose model TFT-H013A6QQIGC7N10-V1.
The LCM's supply voltage is 1.8V to 2.8V, with a typical value of
2.8V. The operating temperature is -20℃ to +70℃, and the storage
temperature is -30℃ to +80℃. Display modules are suitable for
compact devices such as smart meters, Android/RK
motherboard,wearables and meter applications. They are also ideal
for home automation products, white goods and video systems.
Customized Ribbon Cables/Flexible Printed Circuits (FPC): Tailor Your Cables To Perfection By Adjusting Their Length,
Position, And Pin Arrangements, Or Adding Other Connectors. Obtain
A Precisely Designed Cable Solution To Streamline And Enhance The
Safety Of Your Connections |
Touchscreen Add-On Components: Enhance Your User Experience With Capacitive Or Resistive
Touchscreen Technology. We Can Adjust The Glass Thickness Or Shape
Of The Touchscreen To Ensure A Perfect Fit For Your Design. |
Interface Customization: Choose From Various Interface Options Or Consult With Our Experts
To Select The Options That Best Suit Your Project. We Can Integrate
HI,USB, SPI, VGA, And Other Interfaces Into Your Display To Achieve
Your Design Goals. |
Cover Glass: Equip Your Display With Custom-Cut Cover Glass To Improve
Durability. Choose From Various Thicknesses Of Cover Glass And
Undergo Optical Bonding To Prevent Moisture And Debris. |
Product Highlights:
High-Resolution Display
1.3-inch TFT LCD screen with a resolution of 240 x 240 pixels, the
display is crisp and colorful.
Compact and Slim Design
Ultra-thin design with a thickness of only 1.60 ± 0.1 mm (BL+LCD),
making it ideal for space-constrained applications.
Full Viewing Angle
Supports full viewing angle (80/80/80/80), ensuring clear
visibility from any direction.
Wide Operating Temperature Range
Designed to operate efficiently across a broad temperature range,
ensuring reliability in various environments.
High-Quality Construction
Precision-engineered with tight tolerances, ensuring consistent
performance and durability.
Easy Integration
Compact dimensions and detailed specifications facilitate easy
integration into a wide range of devices.
| Reliability Testing | Customers Can Expect All Production Parts To Meet Or Exceed
Operational Requirements Over Temperature, Humidity, And Vibration. |
| Glass Cleanliness | Customers Can Expect Glass To Be Protected By Liners And Presented
Mindful Of Cleanliness Standards. This Means Glass Will Be Clean Of
Contaminants, Fingerprints, And Other Foreign Material. |
| Bezel Appearance | Bezels Will Be Uniformly Painted Free Of Foreign Materials And
Distracting Cosmetic Blemishes. Our Standards Maintain A Clean
Scratch-Free Surface. |
| PCB Appearance | PCB’s Are Delivered With Long-Term Reliability In Mind. Finishes
Are Free Of Bubbles, Foreign Contaminants, And Meet All UL Fire
Requirements. PCB Materials Will Always Be Delivered Within
Industry Norms. PCB Edges Will Be Cleanly Cut And Void Of Burrs. |
| Soldering | Soldering Of All Leaded And SMT Components Is Consistent In
Providing The Mechanical Security And Electrical Connectivity. |
| Consistency | Our Manufacturing And Inspection Processes Ensure Product
Consistency From Lot To Lot. This Means Orders Processed Over The
Years Will Continually Meet Your Expectations. We Do This By
Exacting Manufacturing Specifications, With Attention To Detail In
Our Processes, And By Comparing To The Golden Units. |
| Product Integrity | Quality In Product Manufacturing Ensures Integrity In Construction.
Customers Can Expect Tight Assembly Without Worry Of Loose Parts Or
Missing Material. Our Products Will Meet All Environmental
Expectations Including Temp, Humidity, & Vibration Conditions. |
| Glass Color | While Normal Variations Of Glass Color May Occur (Due To
Manufacturing Tolerances), Hotdisplay Display Maintains Color Compliance Per Internal Approved Color
Charts. These Charts Are Maintained To Ensure Any Minor Glass
Deviations Are Identified And Corrected As Needed. |
| ESD Protection & Safety | All Devices Are Designed And Handled In Consideration Of ESD
Protection. This Includes ESD-SAFE Packaging Within Anti-Static
Bags, Wraps, And Trays. Customers Are Reminded To Always Follow ESD
Safety To Best Protect The Devices. |
