3.2-inch TFT LCD module/240x320 dot matrix color screen module/SPI
interface/ST7789 with Android
TFT-H032A05QVIST6N40 | 3.2-inch IPS TFT LCD | SPI/MCU interface |
240x320px resolution LCD screen | Optional capacitive
touch/resistive touch | High brightness and readable in sunlight

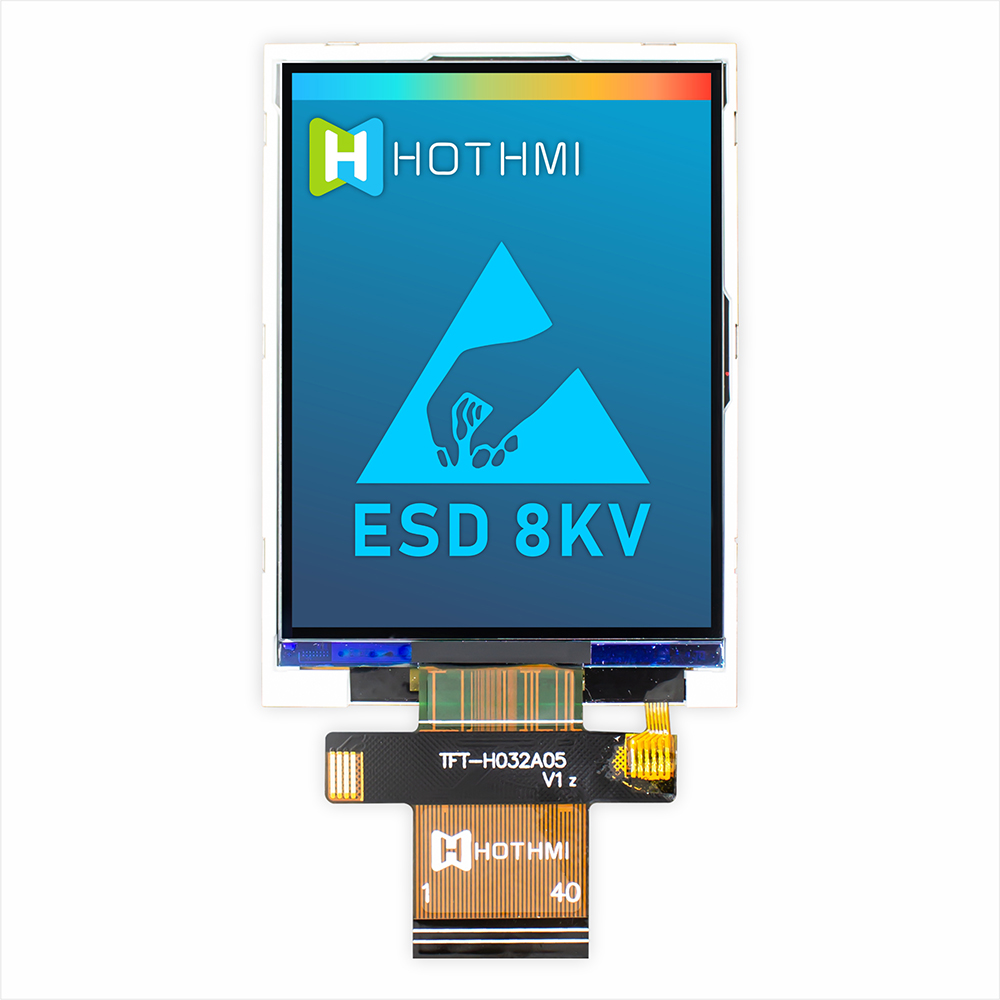

TFT-H032A05QVIST6N40 is a 3.2-inch color LCD module, 240x320
resolution, built-in ST7789 controller, optional resistive touch
screen, high image quality, wide viewing angle, supports 8080
8-bit, 16-bit parallel interface and 3-wire , 4-wire serial
interface, 65K/262K true color, FPC connection (optional
connector), 3.3V voltage, supports horizontal or vertical screen
display. All materials comply with environmental protection
requirements and RoHS standards. This module is widely used in
various instruments, smart devices, etc., and is suitable for a
variety of microcontroller development platforms such as 8051, PIC,
AVR, ARDUINO, ARM and Raspberry Pi, etc.
Customized Ribbon Cables/Flexible Printed Circuits (FPC): Tailor your cables to perfection by adjusting their length,
position, and pin arrangements, or adding other connectors. Obtain
a precisely designed cable solution to streamline and enhance the
safety of your connections |
Touchscreen Add-On Components: Enhance your user experience with capacitive or resistive
touchscreen technology. We can adjust the glass thickness or shape
of the touchscreen to ensure a perfect fit for your design. |
Interface Customization: Choose from various interface options or consult with our experts
to select the options that best suit your project. We can integrate
HI,USB, SPI, VGA, and other interfaces into your display to achieve
your design goals. |
Cover Glass: Equip your display with custom-cut cover glass to improve
durability. Choose from various thicknesses of cover glass and
undergo optical bonding to prevent moisture and debris. |
Intimate design, protect product life
Normally Black panel, higher contrast, lower power consumption.
Intelligent anti-residual image suggestion: built-in screen saver
mode reminder, recommend dynamic or black image refresh, avoid
image residue caused by long-term static display, and ensure that
the screen lasts as new.
Wide application scenarios
Industrial control: instrumentation, HMI human-machine interface.
Portable devices: handheld terminals, medical detectors.
Outdoor equipment: vehicle-mounted displays, environmental
monitors.

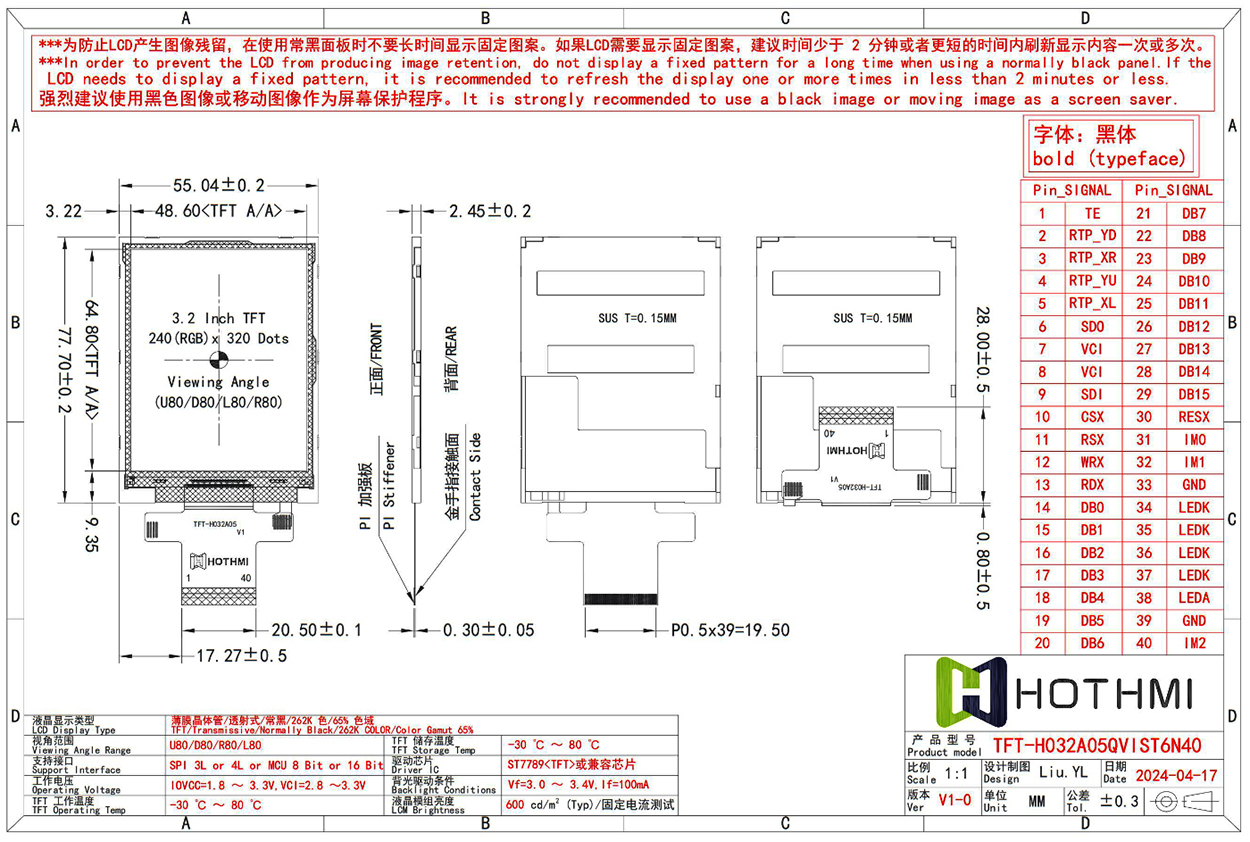

| project | Parameter Description | unit |
| TFT series | Standard TFT | |
| Diagonal size | 3.2” | Inch |
| Resolution | 240 × RGB ×320 (TFT) | dots |
| Dimensions | 55.04(H)x77.70(V)x2.45(D) | mm |
| Effective area (AA) | 48.60x64.80 | mm |
| LCD type | TFT vertical screen | |
| Display perspective | 80/80/80/80 (IPS) | |
| Aspect ratio | 3:4 | |
| Backlight type | LED, white | |
| TFT driver IC | ST7789 | |
| Touch panel | none | |
| Surface | Glare | |
| Brightness | 600 | cd/㎡ |
| Operating temperature | -30~+80 | °C |
| Storage temperature | -30~+80 | °C |
