TFT-H017A3CFTST5N10 | 11.77 inch tft lcd screen st7735 arduino sunlight readable lcd monitor

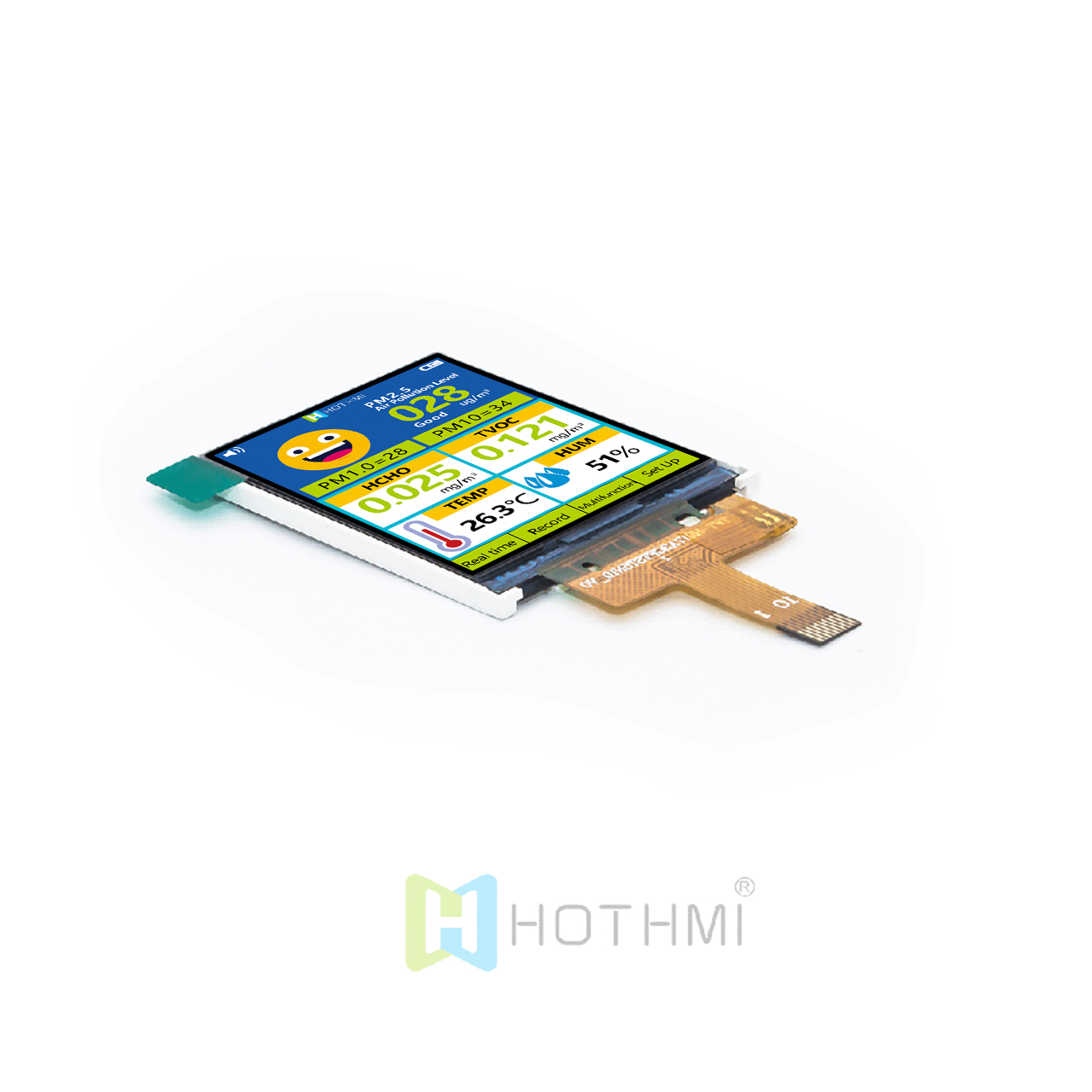

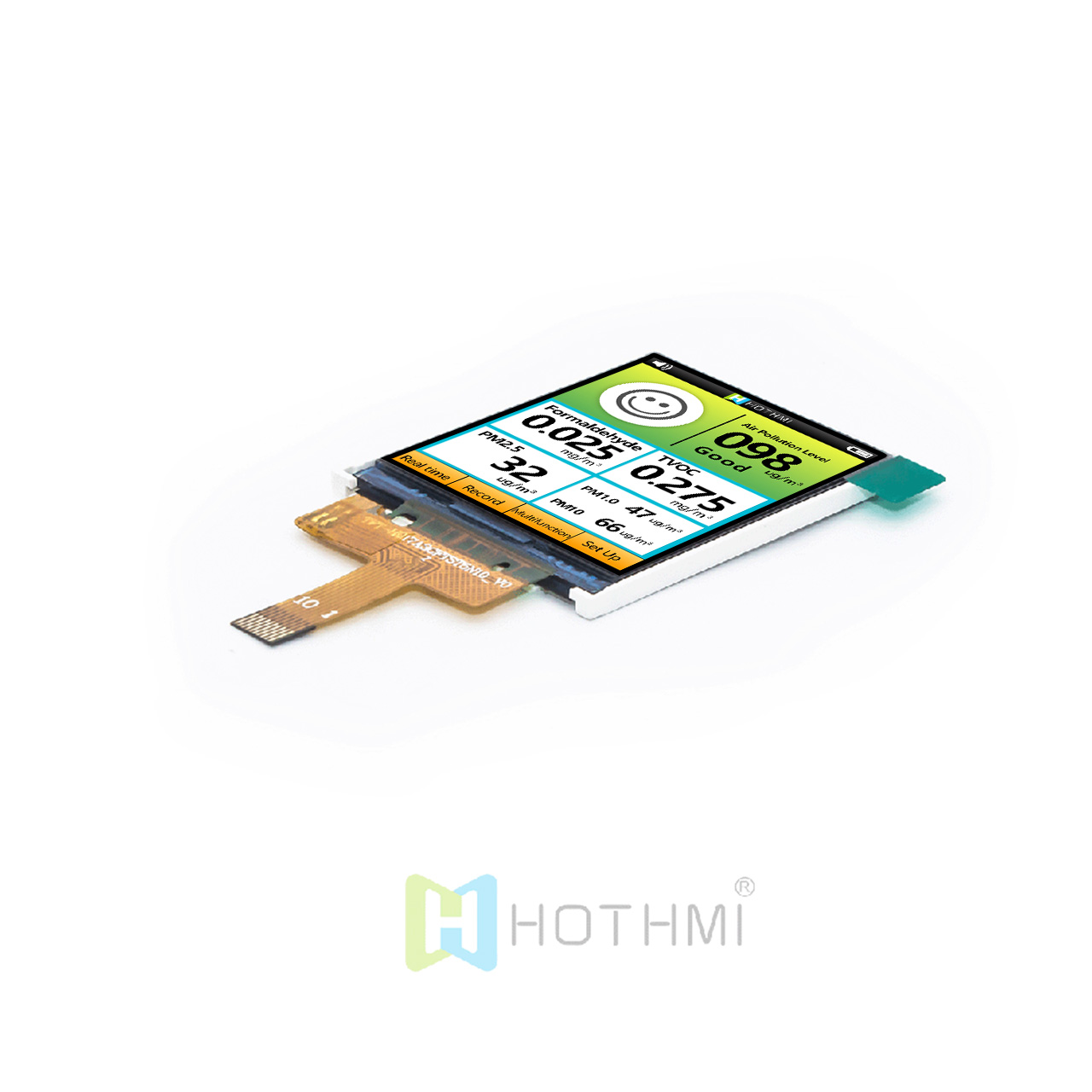

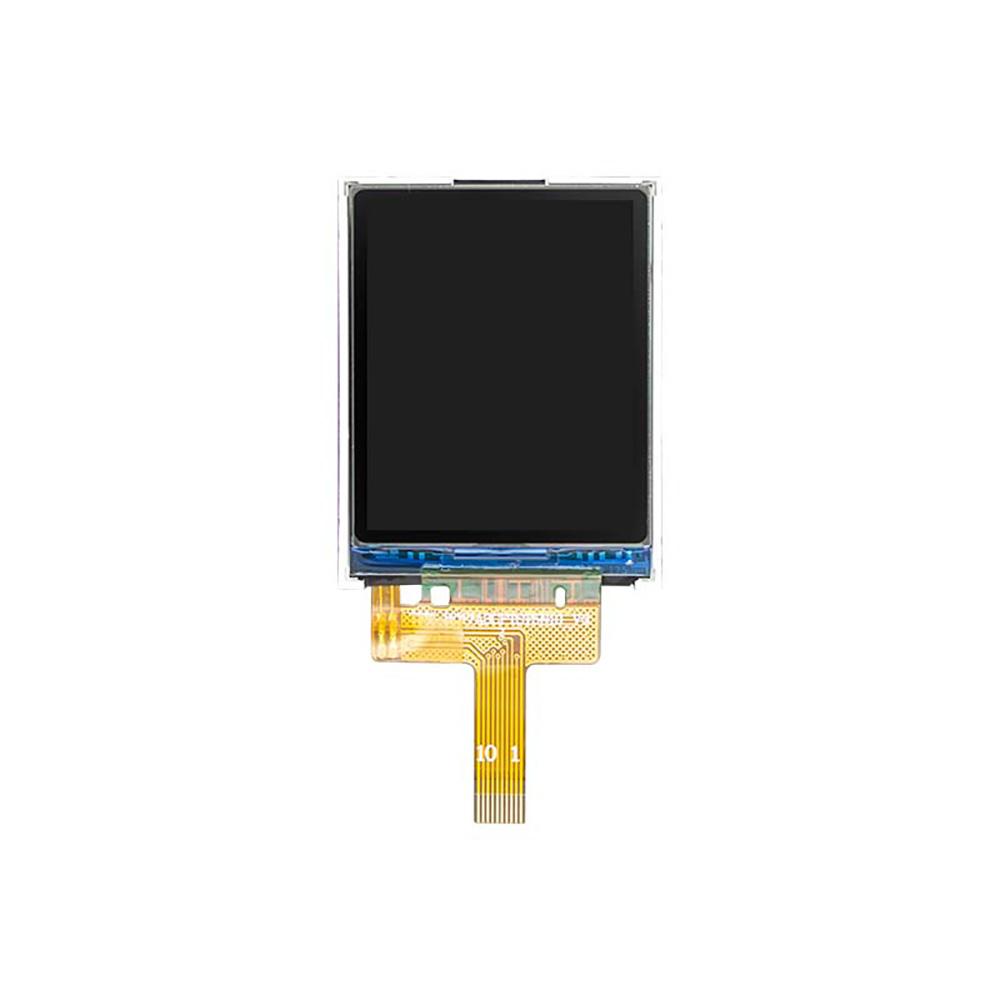

This 1.77-inch TFT LCD display is suitable for a variety of projects from embedded systems to industrial equipment and handheld devices. It offers a crisp 128x160 pixel resolution and a bright LED backlight brightness of 850 Cd/M2 that is readable in sunlight, ensuring high-quality color image display.

In terms of connection, it uses a 4-wire serial SPI interface and is connected through pin headers to improve communication efficiency with C8051/Arduino/STM32 and other devices. The interface is not only flexible, but also supports fast data transfer, providing the possibility for real-time updates, smooth animations and dynamic visual effects. Although this monitor does not have touch screen functionality, it is compact in size and has low power consumption (using a 2.8V power supply).

In addition, the monitor is RoHS compliant and adheres to strict environmental and safety standards, reflecting the emphasis on environmental protection and user safety. Overall, this monitor combines performance, flexibility, and reliability to suit a variety of modern electronic devices and projects.

Key Features:

1.77’’ TFT LCD with 128 x 3RGB x 160 Dots

SPI 3/4L Interface

Driver IC: ST7735S

Operating Temperature: -20℃ to 70℃

Storage Temperature: -30℃ to 80℃

Brightness: 850 cd/m² (Typ)

White LED Backlight

Compact Outline Dimensions: 34.00(H) x 43.70(V) x 2.30(D) mm

Perfect for applications requiring high-quality display performance in a compact form factor. Whether for industrial, medical, or consumer electronics, this module delivers exceptional clarity and reliability.
