TFT-H023A61LQTIL2N40

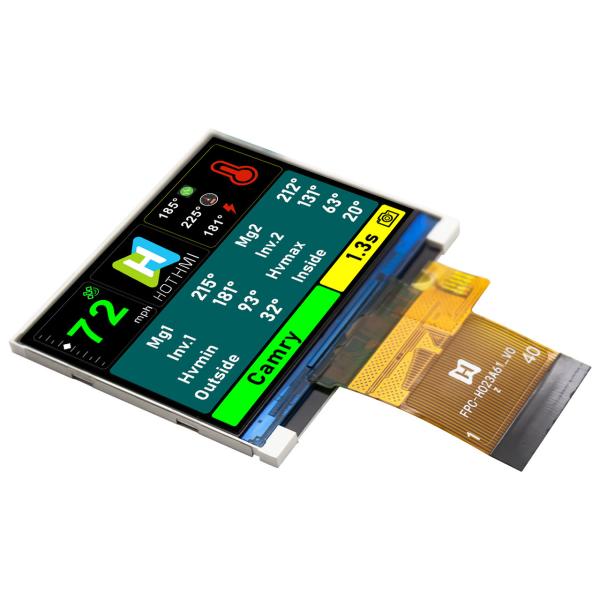

This 2.3-inch TFT display features a crisp resolution of 320x240
pixels, a wide 12H optimal viewing angle, and a bright 250 cd/m²
LED backlight. Despite its compact size, this transmissive LCD
operates efficiently on a low 2.8V voltage supply, ensuring
seamless electrical integration. Designed to eliminate connection
challenges, it provides stable and effortless operation, making it
an ideal choice for Arduino, C8051, and similar projects.
Powered by the high-performance ILI9342 controller, this TFT LCD
display delivers exceptional reliability and functionality. The
controller enhances the display's capabilities, enabling smooth
operation and precise rendering of images and graphics for a
superior visual experience. Additionally, the display is RoHS
compliant, meeting rigorous environmental and safety standards,
reflecting a commitment to sustainability and user protection.
Combining compact design, robust performance, and eco-friendly
construction, this TFT display is a versatile solution for a wide
range of electronic applications.
Key Features:
•2.3" TFT LCD with a resolution of 320 x 3RGB x 240 dots.
•12 O'clock Viewing Direction for optimal display clarity.
•8080 MCU 8/16-Bit Interface (Default 16-bit) for versatile
integration.
•ILI9342 Driver IC ensuring smooth and reliable performance.
•Wide Operating Temperature range from -20℃ to 70℃.
•White LED Backlight with 4 LEDs in parallel for bright and
consistent illumination.
•High Brightness of 400 cd/m² (without TP).
•Why Choose This Module?
•High Reliability: Tested for high/low temperature, humidity, shock,
and vibration.
•Easy Integration: Comprehensive pin description and wiring diagram
included.
•Optimal Performance: Detailed initialization code provided for
quick setup.
Perfect for: Industrial controls, medical devices, portable electronics, and
more!
Learn more about this versatile LCD module and elevate your display
solutions today!
| Item | Standard Value | Unit |
| Display Size | 2.3 inch | Inch |
| Number of Pixels | 320(H)x3(RGB)x 240(V) | dots |
| Active Area | 46.75(H)x 35.06(V) | mm |
| Outline Dimension | 51.00(H) x 45.80(V)x 2.50(D) <TFT> | mm |
| Viewing Direction | 12 O'clock | - |
| TFT Interface | 8080 MCU 8/16-Bit | - |
| TFT Driver IC | ILI9342 | - |
| TFT Driver Condition | VCI=2.8V,IOVCC=1.8V(Typ) | V |
| Backlight | White LED/4 PCS/4 LEDs parallel | - |
| Touch Panel | Without TP With RTP With CTP | - |
| CTP Driver IC | - - - | - |
| CTP Driver Condition | VDD=3.3V(Typ) | V |
| Operation Temperature | -20 ～ 70 | ℃ |
| Storage Temperature | -30 ～ 80 |
℃ |
