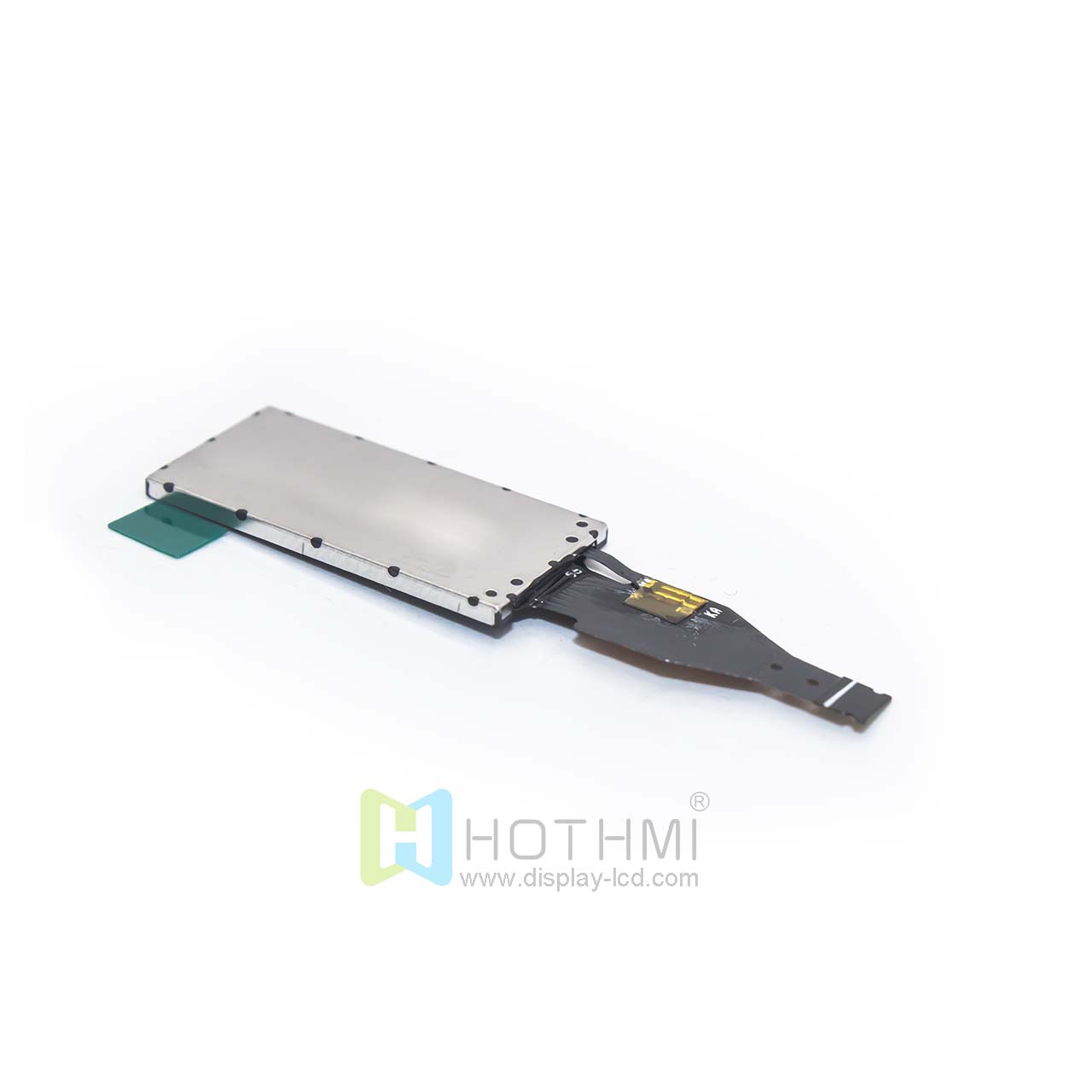

0.96-inch 80x160 serial interface IPS full-view color TFT display

High brightness, wide temperature range, TFT-H010W21AIST4N8 display - your ideal industrial display solution

In industrial applications that pursue efficiency and reliability, a display with excellent performance is the core of the device function. TFT-H010W21AIST4N8 display, with its professional design and powerful performance, injects clear vision and stable guarantee into your products!

Core advantages, defining industry benchmarks

Excellent display effect

1.0-inch compact design, resolution of 80 (RGB) × 160 pixels, delicate picture, accurate color (NTSC 45% color gamut), to meet the high-definition presentation of basic graphics and data.

400 cd/m² ultra-high brightness, can be clearly seen even in strong light environment, suitable for outdoor equipment, industrial instruments and other scenes.

Stable performance in harsh environments

Wide temperature range support: operating temperature -20℃ to +70℃, storage temperature extended to -30℃ to +80℃, no fear of severe cold and heat, adapt to extreme industrial environments.

Low power design: backlight drive voltage 3.0~3.4V, current only 40mA, energy-saving and efficient, extending device life.

Easy to integrate, strong compatibility

4-wire 8-bit serial interface, with ST7735S driver chip, supports fast data transmission and simplifies circuit design.

Provides gold finger contact surface and PI reinforcement board to ensure stable connection, resistance to mechanical stress, suitable for frequent plug-in and unplug scenarios.

Intimate design, protect product life

Normally Black panel, higher contrast, lower power consumption.

Intelligent anti-residual image suggestion: built-in screen saver mode reminder, recommend dynamic or black image refresh, avoid image residue caused by long-term static display, and ensure that the screen lasts as new.

Wide application scenarios

Industrial control: instrumentation, HMI human-machine interface.

Portable devices: handheld terminals, medical detectors.

Outdoor equipment: vehicle-mounted displays, environmental monitors.

Take action now to upgrade your display solution!

TFT-H010W21AIST4N8 has become the preferred choice for industrial-grade displays with its high reliability, ease of use and economy. Whether it is new product development or upgrading existing equipment, it can add competitiveness to your products!

Contact us to obtain samples and technical support, and open a new chapter of clear vision!

Key Features:

1.0 Inch TFT Display: Compact yet powerful with 80(RGB)x160 pixels.

Normally Black Panel: Ensures deep blacks and high contrast.

Wide Operating Temperature: From -20℃ to +70℃, perfect for various environments.

High Brightness: 400 cd/m² for clear visibility in any lighting condition.

4-Wire 8-Bit Data Serial Interface: Simplifies integration and reduces wiring complexity.

Driver IC ST7735S: Reliable and efficient performance.

Color Gamut: NTSC 45% for vibrant and accurate colors.

Durable Design: Includes PI Stiffener and metal frame for enhanced durability.

Pro Tip: To prevent image retention, avoid displaying fixed patterns for more than 2 minutes. Use a black or moving image as a screensaver for optimal screen health.
