    8.0-inch IPS full-view color screen/800x1280 resolution/capacitive screen/controller JD9635/MIPI interface/Android

    Ask Lasest Price
    Brand Name : HOTHMI
    Model Number : TFT-H080A11HDIFT4C30
    Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram
    Supply Ability : 99999
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    8.0-inch IPS full-view color screen/800x1280 resolution/capacitive screen/controller JD9635/MIPI interface/Android

    8.0-inch IPS full-view color screen/800x1280 resolution/capacitive screen/controller JD9635/MIPI interface/Android


    Key Features:

    Model: TFT-H080A11HDIFT4C30

    ▶ Type: TFT high-definition capacitive screen

    ▶ Display pixel: 800x1280 dot matrix

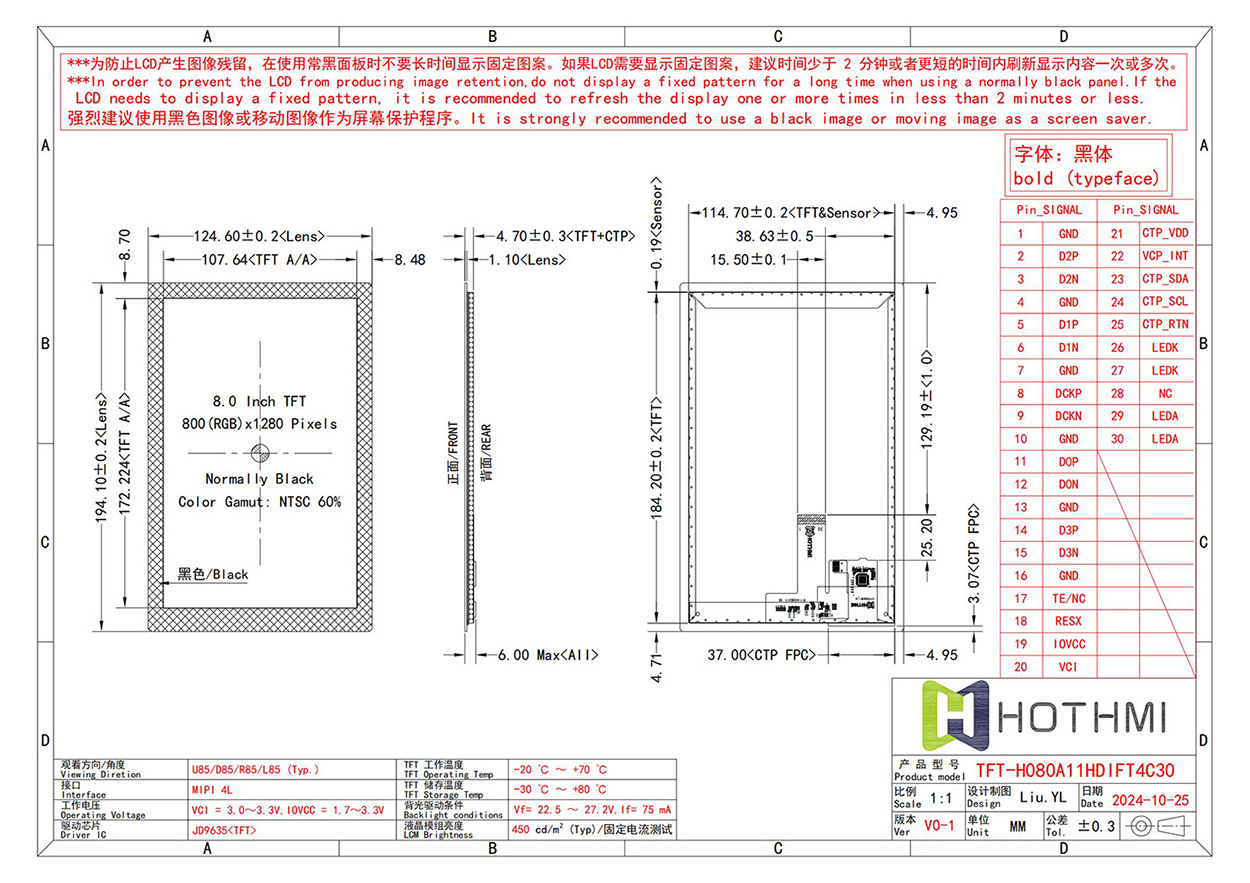

    ▶ Dimensions (mm): 124.6x194.1x4.7

    ▶ Display inch: 8.0“

    ▶ Effective size (mm): 107.64x172.224

    ▶ Application: Charging station

    ▶ Viewing angle: IPS (U85/D85/R85/L85)

    ▶ Brightness: 450cd/m2

    ▶ Pin: FPC-30PIN

    ▶ Interface: MIPI 4L

    ▶ Special Reminder: Anti static ESD 8KV

    ▶ Working temperature: -20~70 ℃

    ▶ Power supply voltage: 3.3V

    ▶ Driver chip: JD9635


    TFT-H080A11HDIFT4C30 | 8" IPS TFT LCD | MIPI DSI Interface | 800x1280 px High Resolution LCD Screen | Sunlight Readable Display | With Capacitive Touch

    This 8.0" IPS TFT LCD display features a high resolution of 800x1280 pixels and built-in EMI shielding. This TFT includes a 450 nits high brightness LED backlight. Because this LCD has built-in IPS technology, this display features amazing clarity, superior color reproduction, better image consistency, and high contrast at full viewing angles. The ultra-bright backlight makes this TFT sunlight readable in bright conditions including direct sunlight. Compliant with EU standards and ROHS certification


    Typical Applications:

    Industrial Instruments: Used in devices requiring high-resolution displays.

    Smart Devices: Ideal for wearable devices, handheld gadgets, and IoT devices.

    Embedded Systems: Compatible with a wide range of microcontrollers and development boards.


    Advantages:

    High Picture Quality: Sharp and clear display with a resolution of 320x320.

    Wide Viewing Angle: Ensures good visibility from different angles.

    Flexible Interface Options: Supports both parallel and serial interfaces, making it versatile for different applications.

    Environmental Compliance: Meets RoHS standards, ensuring it is environmentally friendly.


    Pin Configuration and Interface:

    The module supports multiple interface options, allowing it to be easily integrated into various systems. The specific pin configuration will depend on the interface mode selected (parallel or serial).


    Development Support:

    The module is compatible with a wide range of MCU platforms, making it easy to integrate into existing projects. It is particularly well-suited for use with popular development boards like Arduino, Raspberry Pi, and STM32.


    Conclusion:

    The TFT-H027A01HQINV4N40 is a versatile and high-quality TFT LCD module suitable for a wide range of applications. Its support for multiple interfaces and compatibility with various MCU platforms make it an excellent choice for developers looking for a reliable display solution.


    projectSpecificationunit
    Display size (diagonal)8.0Inch
    Dot matrix (resolution)800 × RGB × 1280 (TFT)dots
    Module size124.6x194.1x4.7mm
    Effective area (AA)107.64x172.224mm
    brightness450cd/
    Operating temperature-20~+70°C
    Storage temperature-30~+80°C
    LCD typeTFT, Normally White, Transmissive
    TFT driver ICJD9635
    TFT interfaceMIPI 4 lanes
    perspectiveIPS(U85/D85/L85/R85)
    aspect ratio5:8
    Backlight typeLED, Normally White
    Touch panel typeNone
    surfaceAnti-Glare
