4.3" IPS TFT LCD/480x800 display/MCU interface/40 PIN
FPC/NT35510/C8051/Arduino/STM32
Key Features:
▶ Model: TFT-H043B16WVINT4N40
▶ Type: TFT display
▶ Display pixels: 480x800

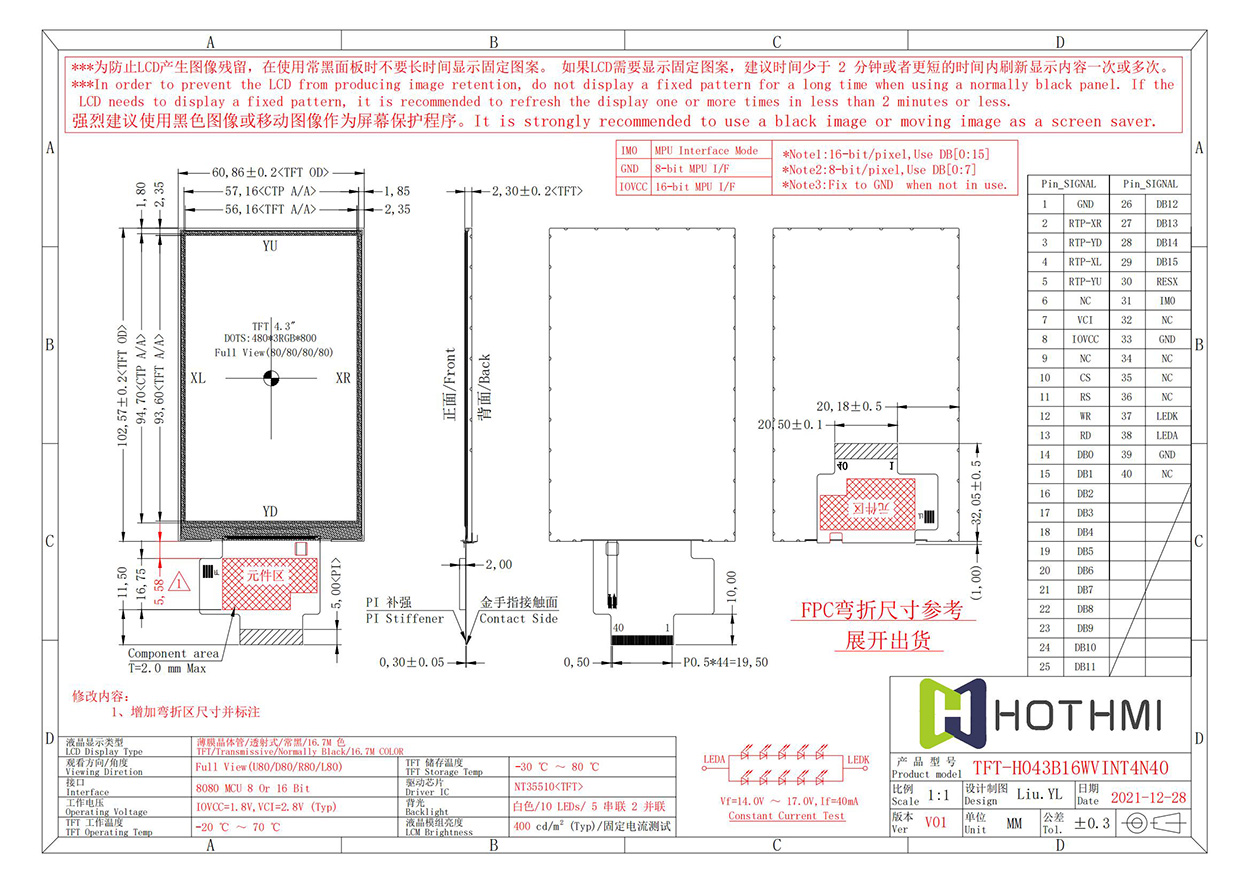

▶ Dimensions (mm): 60.86x102.57x2.3
▶ Display inches: 4.3"
▶ Effective size (mm): 56.16x93.6
▶ Application: C8051/Arduino/STM32
▶ Viewing angle: IPS full viewing angle
▶ Brightness: 400cd/m2
▶ Pin: FPC-40PIN
▶ Interface: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 3.3V
▶ Driver chip: NT35510
4.3" IPS TFT LCD/480x800 display/MCU interface/40 PIN
FPC/NT35510/C8051/Arduino/STM32
4.3" IPS TFT LCD/480x800 display/MCU interface/40 PIN
FPC/NT35510/C8051/Arduino/STM32 Model TFT-H043B16WVINT4N40 is a
4.3-inch TFT LCD display module equipped with NT35510 control
board. This module has a resolution of 480x800 pixels and provides
a typical brightness of 400 nits. This model does not have a touch
function and the display interface is a vertical screen. It is very
suitable for various applications that do not require a touch
display, especially industrial control system display equipment
applications.
This module uses the NT35510 controller and uses a unified 40-pin
FPC connector. Overall, the TFT-H043B16WVINT4N40 is a
high-performance TFT display tailored for embedded systems,
providing excellent visual experience and reliability, and is an
ideal choice for projects such as C8051/Arduino/STM32. Our displays
are all RoHS-compliant and adhere to strict environmental and
safety standards
Typical Applications:
Industrial Instruments: Used in devices requiring high-resolution
displays.
Smart Devices: Ideal for wearable devices, handheld gadgets, and
IoT devices.
Embedded Systems: Compatible with a wide range of microcontrollers
and development boards.
Advantages:
High Picture Quality: Sharp and clear display with a resolution of
320x320.
Wide Viewing Angle: Ensures good visibility from different angles.
Flexible Interface Options: Supports both parallel and serial
interfaces, making it versatile for different applications.
Environmental Compliance: Meets RoHS standards, ensuring it is
environmentally friendly.
Pin Configuration and Interface:
The module supports multiple interface options, allowing it to be
easily integrated into various systems. The specific pin
configuration will depend on the interface mode selected (parallel
or serial).
Development Support:
The module is compatible with a wide range of MCU platforms, making
it easy to integrate into existing projects. It is particularly
well-suited for use with popular development boards like Arduino,
Raspberry Pi, and STM32.
Conclusion:
The TFT-H027A01HQINV4N40 is a versatile and high-quality TFT LCD
module suitable for a wide range of applications. Its support for
multiple interfaces and compatibility with various MCU platforms
make it an excellent choice for developers looking for a reliable
display solution.
| ITEM | PARAMETER DESCRIPTION | UNIT |
| TFT series | TFT-H043B16WVINT4N40 | |
| Diagonal size | 4.3” | Inch |
| Resolution | 480x800 | Dot |
| Dimensions | 60.86x102.57x2.3 | mm |
| Active area (AA) | 56.16x93.6 | mm |
| LCD type | TFT LCD Display | mm |
| Display viewing angle | Full View | |
| Aspect ratio | 2:3 | |
| Backlight type | LED white | |
| TFT driver IC | NT35510 | |
| Brightness | 400 | cd/m2 |
| Operating temperature | -20~70℃ | ℃ |
| Storage temperature | -30~80℃ | ℃ |
