6.2 inch TFT LCD display 1024x600 dots MIPI interface IPS full
viewing angle wide temperature sunlight readable compatible with
Android optional touch screen
Key Features:
▶ Model: TFT-H062A02WSIJDGN30
▶ Type: TFT landscape screen
▶ Display pixels: 1024x600 Px
▶ External dimensions (mm): 155.3x88.3x4.7
▶ Display inches: 6.2"
▶ Effective size (mm): 137.47x77.23
▶ Application: Electric vehicle, outdoor remote control
▶ Perspective: IPS (U85/D85/L85/R85)
▶ Brightness: 1700cd/m2
▶ Pin: FPC-30PIN
▶ Interface: MIPI/LVDS
▶ Special reminder: Anti static ESD 8KV
▶ Working temperature: -30~80 ℃
▶ Power supply voltage: 3.3V
▶ Driver chip: NV3051
TFT-H062A02WSIJDGN30 | 6.2-inch IPS TFT color LCD screen | MIPI
interface | 1024X600 dot matrix LCD screen | optional capacitive
touch/resistive touch | visible in sunlight
TFT-H062A02WSIJDGN30 is a 6.2-inch color LCD module with a
resolution of 1024x600, built-in NV3051 controller, optional touch
screen, high image quality, IPS wide viewing angle, MIPI/LVDS
interface support, 16.7M high-definition, wide temperature -30~80
℃, 1700cd/m ² visible in sunlight, FPC connection (optional
connector), 2.8V~3.3 voltage, and vertical display support. All
materials comply with environmental requirements and RoHS
standards. This module is widely used in various instruments,
vehicles, smart homes, healthcare, smart devices, etc. It is
suitable for 8051 PIC, AVR, ARDUINO, ARM, Raspberry Pi and other
microcontroller development platforms
Typical Applications:
Industrial Instruments: Used in devices requiring high-resolution
displays.
Smart Devices: Ideal for wearable devices, handheld gadgets, and
IoT devices.
Embedded Systems: Compatible with a wide range of microcontrollers
and development boards.
Advantages:
High Picture Quality: Sharp and clear display with a resolution of
320x320.
Wide Viewing Angle: Ensures good visibility from different angles.
Flexible Interface Options: Supports both parallel and serial
interfaces, making it versatile for different applications.
Environmental Compliance: Meets RoHS standards, ensuring it is
environmentally friendly.
Pin Configuration and Interface:
The module supports multiple interface options, allowing it to be
easily integrated into various systems. The specific pin
configuration will depend on the interface mode selected (parallel
or serial).
Development Support:
The module is compatible with a wide range of MCU platforms, making
it easy to integrate into existing projects. It is particularly
well-suited for use with popular development boards like Arduino,
Raspberry Pi, and STM32.
Conclusion:
The TFT-H027A01HQINV4N40 is a versatile and high-quality TFT LCD
module suitable for a wide range of applications. Its support for
multiple interfaces and compatibility with various MCU platforms
make it an excellent choice for developers looking for a reliable
display solution.
Customized Ribbon Cables/Flexible Printed Circuits (FPC): Tailor your cables to perfection by adjusting their length,
position, and pin arrangements, or adding other connectors. Obtain
a precisely designed cable solution to streamline and enhance the
safety of your connections |
Touchscreen Add-On Components: Enhance your user experience with capacitive or resistive
touchscreen technology. We can adjust the glass thickness or shape
of the touchscreen to ensure a perfect fit for your design. |
Interface Customization: Choose from various interface options or consult with our experts
to select the options that best suit your project. We can integrate
HI,USB, SPI, VGA, and other interfaces into your display to achieve
your design goals. |
Cover Glass: Equip your display with custom-cut cover glass to improve
durability. Choose from various thicknesses of cover glass and
undergo optical bonding to prevent moisture and debris. |

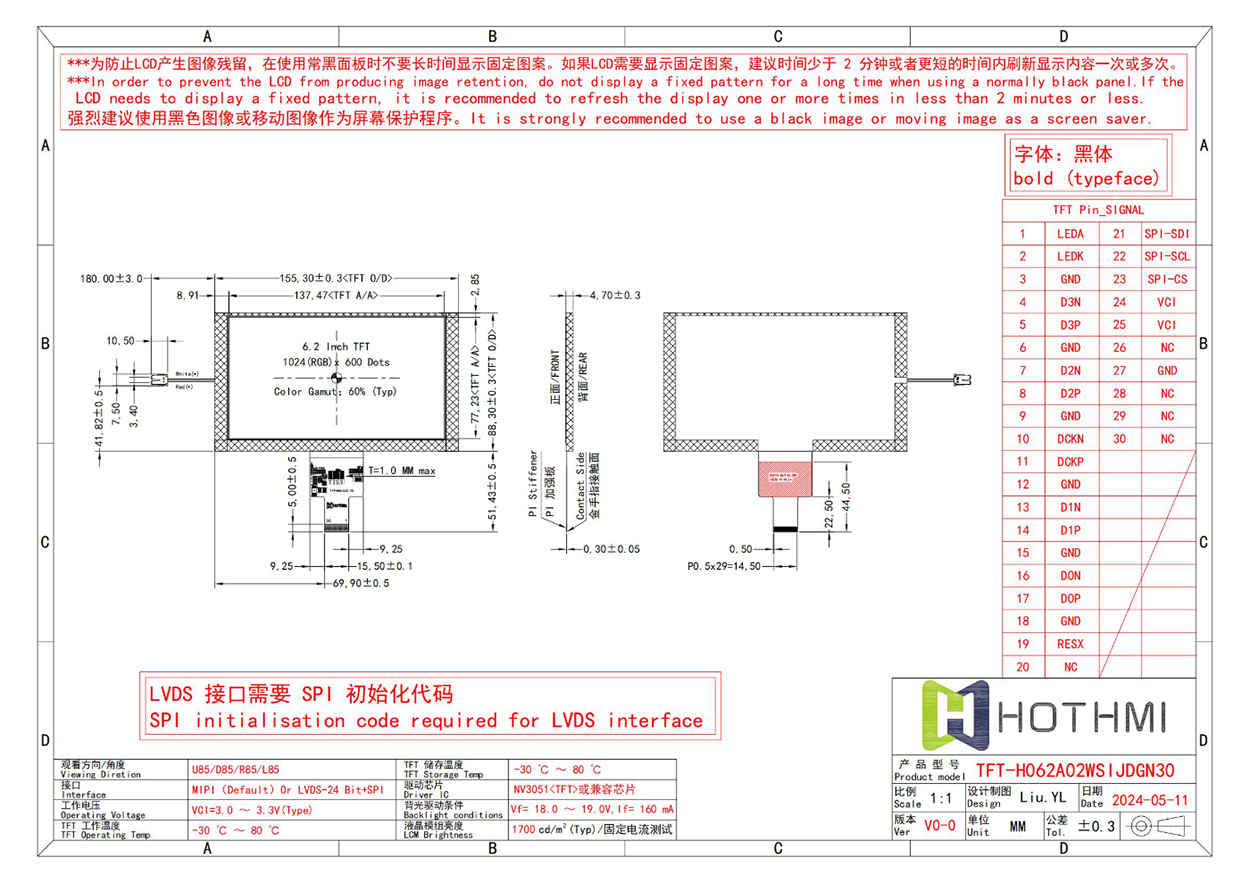

| parameter | Parameter Description | unit |
| TFT LCD | Standard TFT horizontal screen | |
| Diagonal inches | 6.2” | Inch |
| resolution | 1024 × RGB × 600 (TFT) | dots |
| Dimensions | 155.3x88.3x4.7 | mm |
| Size (AA) area | 137.47x77.23 | mm |
| LCD specifications | TFT, white, transmissive | |
| Display perspective | 85/85/85/85 (IPS) | |
| aspect ratio | 1.1:2 | |
| Backlight specifications | LED, white | |
| TFT driver chip | NV3051 | |
| Touch glass type | None | |
| surface | Anti-glare | |
| Display brightness | 1700 | cd/㎡ |
| Operating temperature | -30~+80 | °C |
| Storage temperature | -30~+80 | °C |
