7 inch 800x480px TN Sunlight Readable Capacitive TFT LCD Display
Module RGB
Key Features:
▶ Model: TFT-H070A16SVTFT8C50
▶ Product type: TN TFT capacitor module
▶ Dot matrix: 800x480 Px

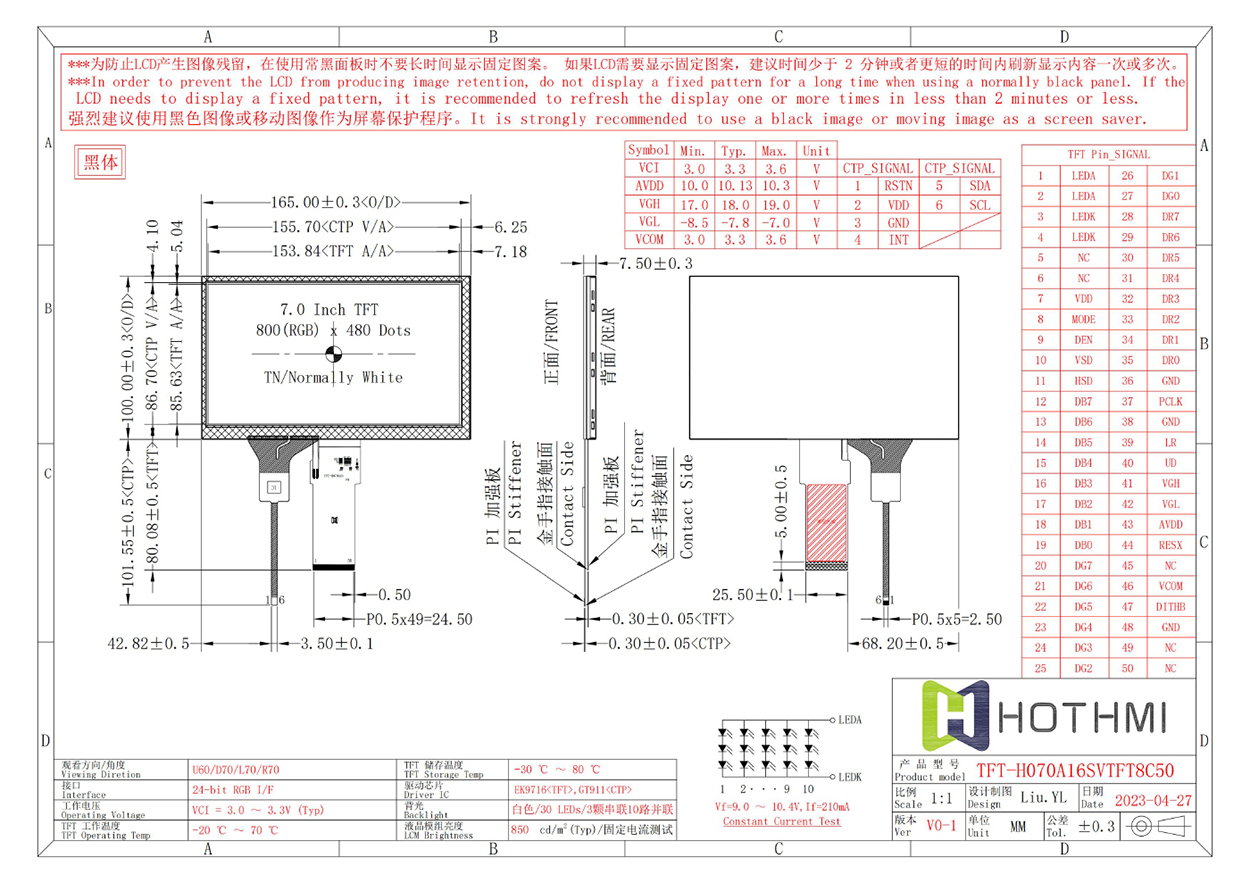

▶ Overall dimensions (mm): 165x100x7.5
▶ Diagonal size: 7.0"
▶ Effective size (mm): 153.84x85.63
▶ Application: STM32/RK series
▶ Display viewing angle: U60/D70/L70/R70
▶ Brightness: 850cd/m2
▶ Pin: FPC-50PIN
▶ Interface: RGB
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 3.3V
▶ Driver chip: EK9716
▶ Touch panel: capacitive touch (GT911)
TFT-H070A16SVTFT8C50-CTP|7.0-inch TN-TFT-LCD|RGB interface|800x480
pixel resolution LCD screen|Optional capacitive touch/resistive
touch|Readable in sunlight
This 7" sunlight-readable TFT LCD offers an 800x480 resolution
equipped with a powerful backlight and delivers a luminance of 850
cd/m2, providing visibility in bright lighting conditions,
including direct sunlight. The 24-bit LCD has an RGB interface and
a 12:00 optimal view. This Liquid Crystal Display is RoHS compliant
and compliant with Arduino and other similar boards. It features a
3M brightness enhancing film (BEF) to help increase the backlight
intensity and brightness.The transmissive display mode and the
10-point multi-touch capacitive touchscreen make this 7-inch LCD
screen the perfect display for indoor and bright outdoor devices.
Some industries and applications include industrial, commercial,
controls, PLCs, handheld devices for outdoor use, aviation,
consumer electronics, medical devices, automotive dashboards,
kiosks, field engineering, agriculture, outdoor sports equipment,
and many more
Typical Applications:
Industrial Instruments: Used in devices requiring high-resolution
displays.
Smart Devices: Ideal for wearable devices, handheld gadgets, and
IoT devices.
Embedded Systems: Compatible with a wide range of microcontrollers
and development boards.
Advantages:
High Picture Quality: Sharp and clear display with a resolution of
320x320.
Wide Viewing Angle: Ensures good visibility from different angles.
Flexible Interface Options: Supports both parallel and serial
interfaces, making it versatile for different applications.
Environmental Compliance: Meets RoHS standards, ensuring it is
environmentally friendly.
Pin Configuration and Interface:
The module supports multiple interface options, allowing it to be
easily integrated into various systems. The specific pin
configuration will depend on the interface mode selected (parallel
or serial).
Development Support:
The module is compatible with a wide range of MCU platforms, making
it easy to integrate into existing projects. It is particularly
well-suited for use with popular development boards like Arduino,
Raspberry Pi, and STM32.
Conclusion:
The TFT-H027A01HQINV4N40 is a versatile and high-quality TFT LCD
module suitable for a wide range of applications. Its support for
multiple interfaces and compatibility with various MCU platforms
make it an excellent choice for developers looking for a reliable
display solution.
Customized Ribbon Cables/Flexible Printed Circuits (FPC): Tailor your cables to perfection by adjusting their length,
position, and pin arrangements, or adding other connectors. Obtain
a precisely designed cable solution to streamline and enhance the
safety of your connections |
Touchscreen Add-On Components: Enhance your user experience with capacitive or resistive
touchscreen technology. We can adjust the glass thickness or shape
of the touchscreen to ensure a perfect fit for your design. |
Interface Customization: Choose from various interface options or consult with our experts
to select the options that best suit your project. We can integrate
HI,USB, SPI, VGA, and other interfaces into your display to achieve
your design goals. |
Cover Glass: Equip your display with custom-cut cover glass to improve
durability. Choose from various thicknesses of cover glass and
undergo optical bonding to prevent moisture and debris. |
| project | Parameter Description | unit |
| TFT series | Standard TFT | |
| Diagonal size | 7.0” | Inch |
| Resolution | 800 × RGB × 480 (TFT) | dots |
| Dimensions | 165x100x7.5 | mm |
| Effective area (AA) | 153.84x85.63 | mm |
| LCD type | TN TFT | |
| Display perspective | U60/D70/L70/R70 | |
| Aspect ratio | 1.1:2 | |
| Backlight type | LED, white | |
| TFT driver IC | EK9716 | |
| Touch panel | GT911 | |
| Surface | Glossy | |
| Brightness | 850 | cd/㎡ |
| Operating temperature | -20~+70 | °C |
| Storage temperature | -30~+80 | °C |
