Are you on the lookout for an innovative and high - performing LCD
module? The TFT - H015A05ZNIST3N10 is here to revolutionize your
projects.

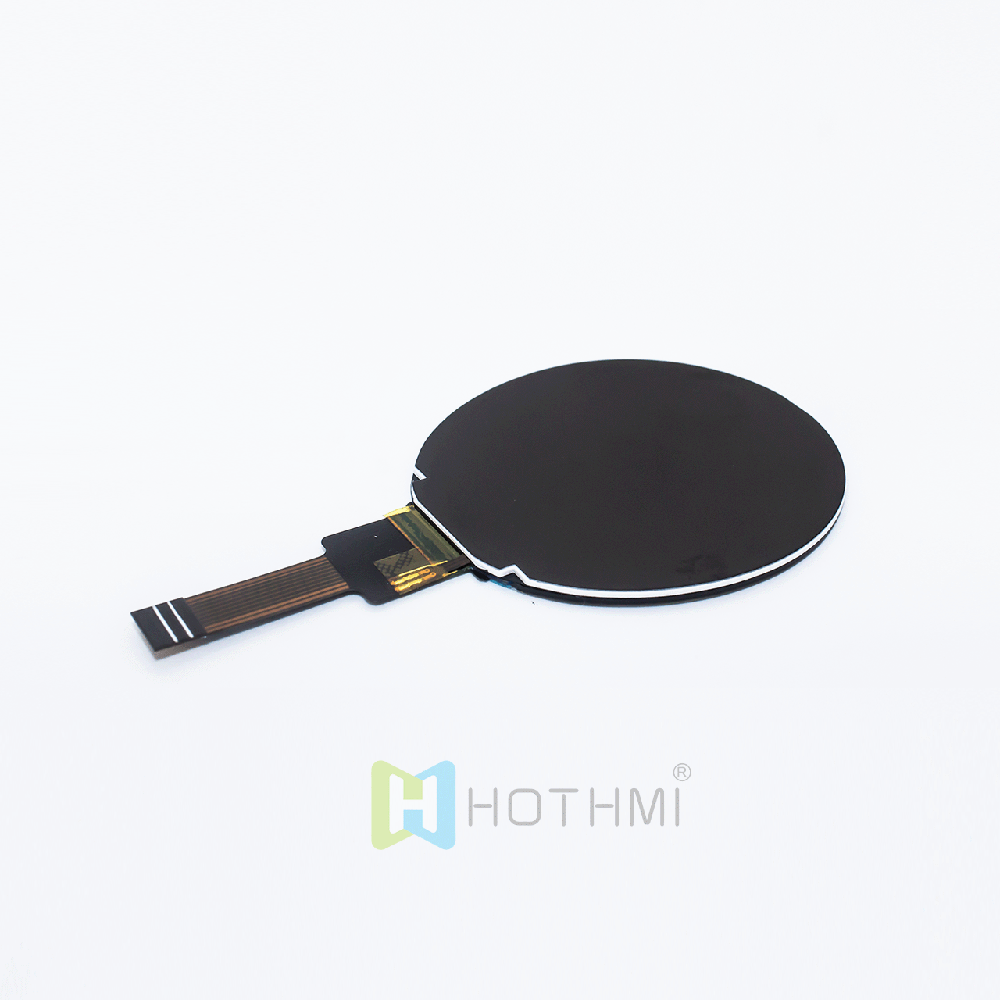

Unique Circular Design
Featuring a 1.5 - inch circular IPS TFT LCD screen, it offers a
distinct visual appearance. This circular form factor can add a
touch of uniqueness to your designs, whether it's for a stylish
smart device or a specialized instrument.
Impressive Display Resolution
With a 360x360 dot matrix, it delivers sharp and detailed visuals.
The high - resolution display ensures that every image and text is
presented with utmost clarity, enhancing the overall user
experience.
Built - in Controller and Touch Options
Equipped with the built - in ST77916 controller, it guarantees
smooth operation. Moreover, you have the flexibility to choose
between capacitive touch or resistive touch, depending on your
project requirements. This touch functionality enables intuitive
user interaction.
Wide Viewing Angle and High Image Quality
Thanks to the IPS technology, it provides a wide viewing angle. No
matter from which angle you view the screen, the image quality
remains high, with vivid colors and excellent contrast. The
65K/262K true - color depth further enriches the visual experience.
Versatile Interfaces
It supports a variety of interfaces, including 8080 8 - bit, 9 -
bit, 16 - bit, 18 - bit parallel interfaces and 3 - wire, 4 - wire
serial interfaces. This versatility makes it easy to integrate with
different microcontroller platforms, such as 8051 PIC, AVR,
ARDUINO, ARM, and Raspberry Pi.
Flexible Connection and Voltage Range
The FPC connection (with an optional connector) offers convenience
in installation. Operating within a 2.8V - 3.3V voltage range, it
is suitable for both battery - powered and standard - power -
supply projects. And it supports vertical display, providing more
layout options.
Environmentally Friendly and Widely Applicable
All materials comply with environmental requirements and RoHS
standards, reflecting our commitment to sustainability. This module
is widely used in various instruments and intelligent devices,
making it a reliable choice for a broad range of applications.
In conclusion, the TFT - H015A05ZNIST3N10 combines cutting - edge
technology, flexibility, and environmental friendliness, making it
the perfect choice for your next project.
Customized Ribbon Cables/Flexible Printed Circuits (FPC): Tailor your cables to perfection by adjusting their length,
position, and pin arrangements, or adding other connectors. Obtain
a precisely designed cable solution to streamline and enhance the
safety of your connections |
Touchscreen Add-On Components: Enhance your user experience with capacitive or resistive
touchscreen technology. We can adjust the glass thickness or shape
of the touchscreen to ensure a perfect fit for your design. |
Interface Customization: Choose from various interface options or consult with our experts
to select the options that best suit your project. We can integrate
HI,USB, SPI, VGA, and other interfaces into your display to achieve
your design goals. |
Cover Glass: Equip your display with custom-cut cover glass to improve
durability. Choose from various thicknesses of cover glass and
undergo optical bonding to prevent moisture and debris. |
| project | Parameter Description | unit |
| TFT series | Standard TFT circular | |
| Diagonal size | 1.5 " | Inch |
| Resolution | 360 x RGB x 360 (TFT) | dots |

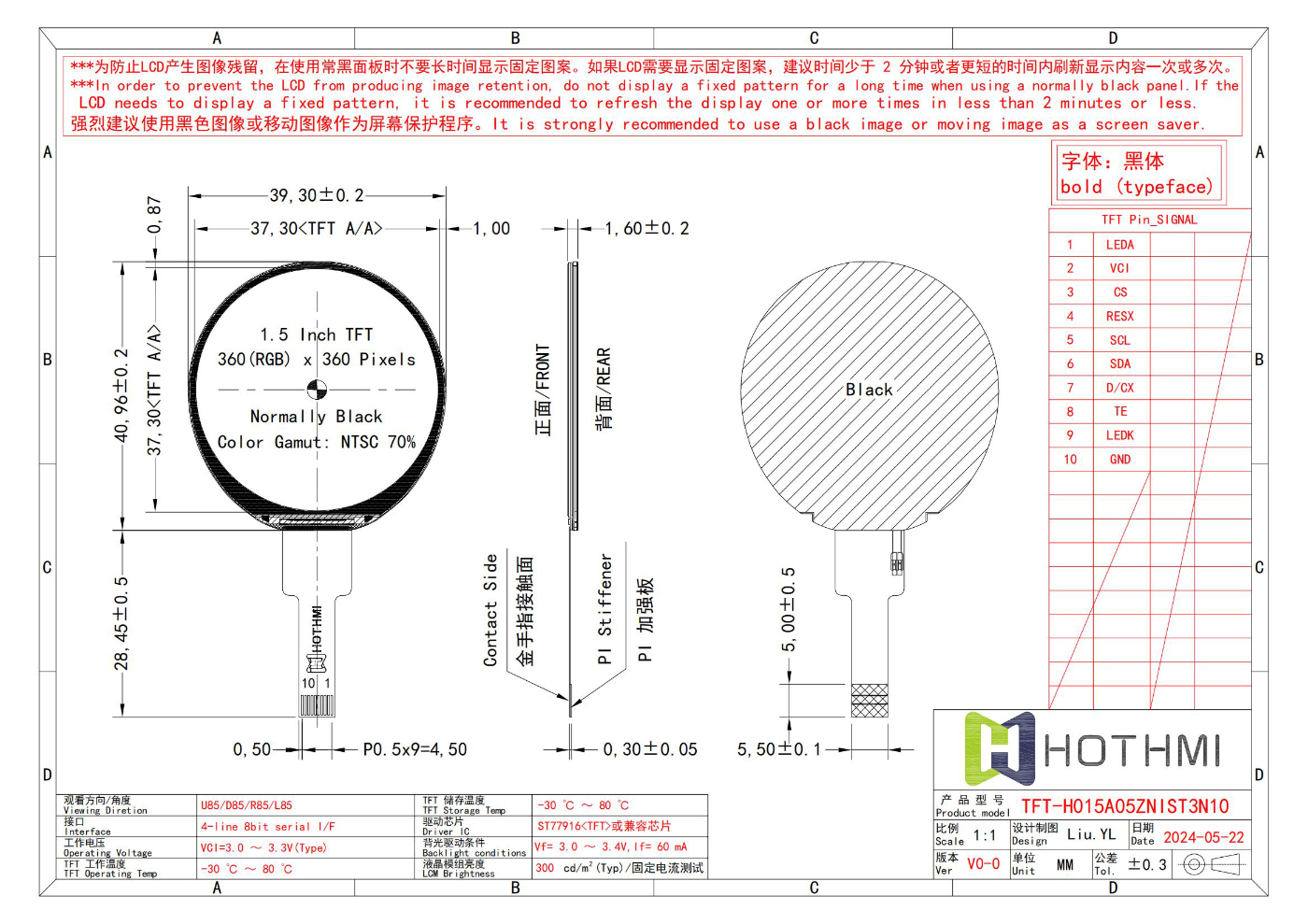

| Dimensions | 39.3x40.96x1.6 | mm |
| Effective area (AA) | 37.3x37.3 | mm |
| LCD type | Circular TFT module | |
| Display perspective | 80/80/80/80 (IPS) | |
| Aspect ratio | 1: 1 | |
| Backlight type | LED, white | |
| TFT driver IC | ST77916 | |
| Touch panel | - | |
| Surface | Bright surface | |
| Brightness | three hundred | cd/㎡ |
| Operating temperature | -30~+80 | °C |
| Storage temperature | -30~+80 | °C |
