TFT - H014A3DQIST4N10: Your Ideal LCD Module
Are you in search of a top - notch LCD module for your diverse
projects? The TFT - H014A3DQIST4N10 is here to meet all your
expectations.
Exceptional Display Quality

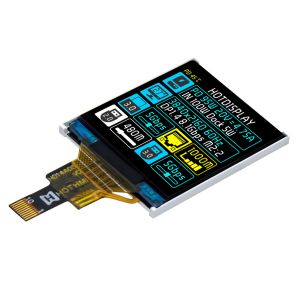

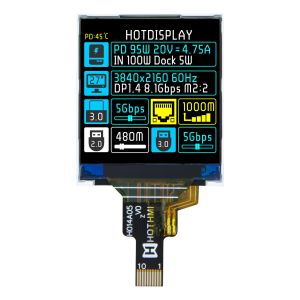

This 1.44 - inch TFT LCD showcases a clear 128x128 pixel
resolution. Paired with a bright LED backlight boasting a luminance
of 350 cd/m2, it guarantees high - quality color image display.
Whether it's an embedded system, industrial equipment, or a
handheld device, the visuals will be sharp and vivid.
Efficient Connection Interface
Featuring a 4 - wire serial SPI interface and connected via pin
headers, it significantly improves communication efficiency with
popular devices like Arduino and C8051. This interface not only
offers great flexibility but also enables fast data transmission.
This paves the way for real - time updates, smooth animations, and
dynamic visual effects, enhancing the overall user experience.
Compact and Power - Efficient
Despite its lack of touchscreen capabilities, its compact size and
low power consumption (running on a 3.3 - volt power source) make
it a perfect fit for projects where power conservation is crucial.
The Multi - Domain Vertical Alignment (MVA) technology ensures
stunning clarity even at viewing angles of up to 70°, making it
ideal for portrait - mode visual output in projects that don't
require touch functionality.
Environmentally Responsible
The display is RoHS compliant, strictly adhering to environmental
and safety standards. This reflects our commitment to both
environmental protection and user safety, ensuring that you can use
the product with complete peace of mind.
In conclusion, the TFT - H014A3DQIST4N10 combines outstanding
performance, flexibility, and reliability, making it an excellent
choice for a wide range of modern electronic devices and projects.
| ITEM | PARAMETER DESCRIPTION | UNIT |
| TFT series | TFT-H014A05QQTST3N10 | |
| Diagonal size | 1.44” | Inch |
| Resolution | 128x128 | Dot |
| Dimensions | 29x34.41x2.4 | mm |
| Active area (AA) | 25.5x26.5 | mm |
| LCD type | 1.44” TFT Module | mm |
| Display viewing angle | Full View | |
| Aspect ratio | 1:1 | |
| Backlight type | LED white | |
| TFT driver IC | ST7735 | |
| Brightness | 350cd/m2 | cd/m2 |
| Operating temperature | -20~70℃ | ℃ |
