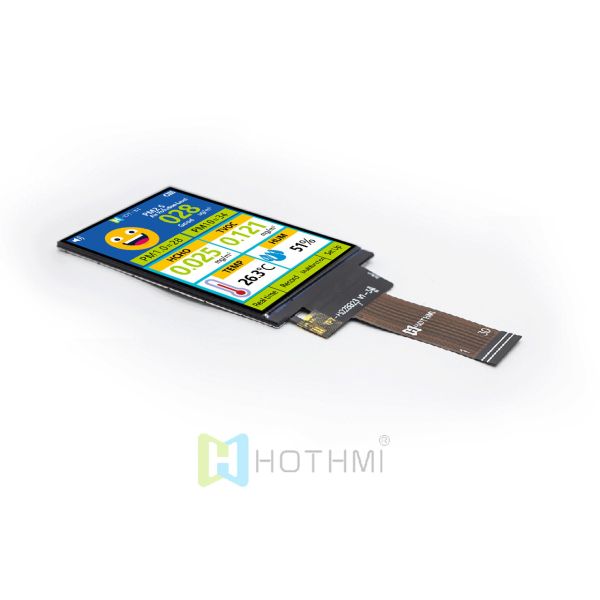

    2.8 inch 480x640 VGA TFT LCD | ST7701 Controller

    Ask Lasest Price
    Brand Name : HOTHMI
    Model Number : TFT-H028B23VGIST5N30
    Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram
    Supply Ability : 99999
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    2.8 inch 480x640 VGA TFT LCD | ST7701 Controller

    If you want to buy, please go to https://www.display-lcd.com/

    TFT-H028B23VGIST5N30 | 2.8-inch 480x640 VGA TFT LCD | ST7701 controller

    This 2.8-inch TFT LCD display is suitable for a variety of projects, from embedded systems to industrial equipment and handheld devices. It offers a crisp 480x640 pixel resolution and a bright LED backlight with a brightness of 500 cd/m², ensuring high-quality color images. It features a MIPI interface, which improves communication efficiency with devices such as Arduino and C8051. This flexible interface supports fast data transfer, enabling real-time updates, smooth animations, and dynamic visual effects.


    While this display lacks touchscreen functionality and a glass cover, we can add touch functionality and a cover. We support custom cover glass, custom capacitive/resistive touchscreens, and custom FPCs. This product features IPS with a full viewing angle, ensuring excellent viewing quality from any angle. This makes it an ideal choice for projects that don't require touch functionality but require portrait mode visual output. The touchscreen model is the TFT-H028C2QVTST4C45, while the resistive touchscreen model is the TFT-H028A17QVTST2R37. These models come with an FPC cable that can be plugged in or soldered, allowing users to flexibly develop their own compatible control boards. They support development platforms such as Arduino and C8051. We also offer a 2.8-inch smart display with a driver board or a 2.8-inch SPI TFT LCD module with SPI communication. Users can easily assemble the display.


    Furthermore, this display is RoHS-compliant and adheres to strict environmental and safety standards, demonstrating our commitment to both environmental protection and user safety. Overall, this display combines performance, flexibility, and reliability, making it suitable for a variety of modern electronic devices and projects.

    parameterSpecification contentUnit
    TFT seriesTFT-H028B23VGIST5N30
    Diagonal size2.8Inch
    Resolution480x640Dot
    Dimensions65.9*50.9*2.36mm
    Active area (AA)57.6*43.2mm
    LCD typeTFT wide temperature and full viewing angle displaymm
    Display viewing angleIPS
    Aspect ratio3:2
    Backlight typeLED white
    TFT driver ICST7701<TFT> or compatible
    Brightness500cd/m2
    Operating temperature-20~70℃
    Storage temperature-30~80
