4.0 inch TFT LCD module with capacitive touch screen 320x480 dot
matrix SPI serial port screen wide viewing angle ST7365/compatible
with Arduino/STM32
Key Features:
▶ Model: TFT-H040A28FWTST3C40
▶ Type: TFT module serial port screen
▶ Display pixels: 320x480 Px

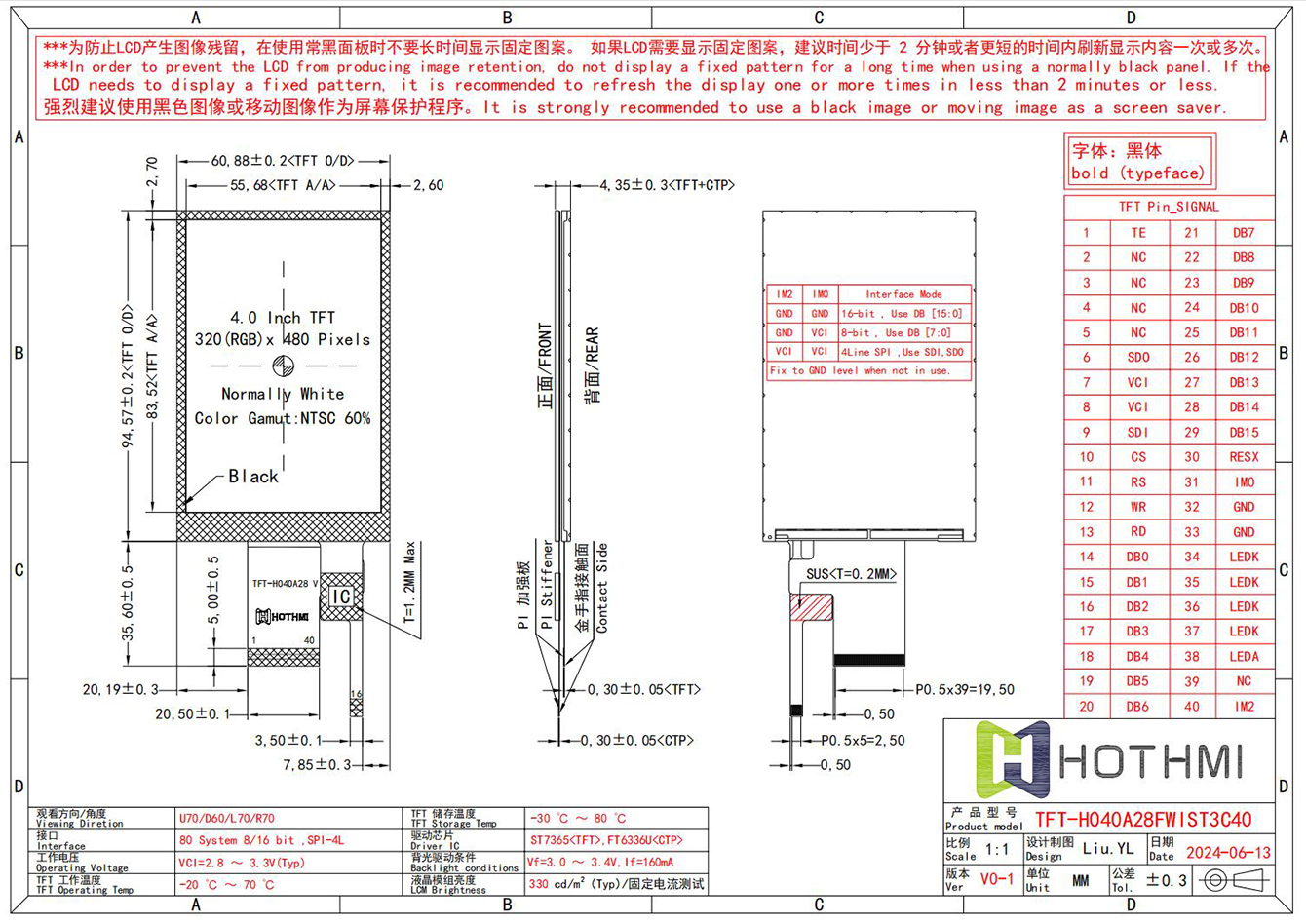

▶ Dimensions (mm): 60.88 (H) x 94.57 (V) x 2.50
▶ Display inches: 4.0"
▶ Effective size (mm): 55.68 (H) x 83.52 (V)
▶ Application: Handheld devices/C8051/Arduino/STM32
▶ Viewing angle: (U70/D60/L70/R70)
▶ Brightness: 330cd/m2
▶ Pin: FPC-40PIN
▶ Interface: MCU/SPI
▶ Special tips: Anti-static ESD 8KV
▶ Operating temperature: -20~70℃
▶ Power supply voltage: 3.3V
▶ Driver chip: ST7365
HTM-H040A28-SPI-A01C | 4.0-inch IPS LCD module with plate -
capacitive touch | SPI interface | 320X480 pixel TN LCD screen |
optional capacitive touch / resistive touch
HTM-H040A28-SPI-A01C is a 4.0-inch IPS LCD module with plate -
capacitive touch display with a resolution of 320X480 pixels. It
uses ST7365 display driver IC, plug-in PIN pins, and is also
compatible with FPC cables and can be used with matching
connectors. The wide viewing angle used in this display (
U70/D60/L70/R70) technology provides full viewing angle and
excellent color performance, allowing you to easily watch from all
angles without distortion. The display has a high contrast ratio of
500:1, capable of displaying deep blacks and vivid colors. With a
brightness of up to 330cd/m2, it can be read under sunlight. FPC
connection (optional connector), 3.3V voltage, supports vertical
screen display. All materials comply with RoHS environmental
protection standards. The module is widely used in various
instruments, industrial computers, smart devices, etc. It is
suitable for a variety of microcontroller development platforms
such as C8051/Arduino/STM32
Typical Applications:
Industrial Instruments: Used in devices requiring high-resolution
displays.
Smart Devices: Ideal for wearable devices, handheld gadgets, and
IoT devices.
Embedded Systems: Compatible with a wide range of microcontrollers
and development boards.
Advantages:
High Picture Quality: Sharp and clear display with a resolution of
320x320.
Wide Viewing Angle: Ensures good visibility from different angles.
Flexible Interface Options: Supports both parallel and serial
interfaces, making it versatile for different applications.
Environmental Compliance: Meets RoHS standards, ensuring it is
environmentally friendly.
Pin Configuration and Interface:
The module supports multiple interface options, allowing it to be
easily integrated into various systems. The specific pin
configuration will depend on the interface mode selected (parallel
or serial).
Development Support:
The module is compatible with a wide range of MCU platforms, making
it easy to integrate into existing projects. It is particularly
well-suited for use with popular development boards like Arduino,
Raspberry Pi, and STM32.
Conclusion:
The TFT-H027A01HQINV4N40 is a versatile and high-quality TFT LCD
module suitable for a wide range of applications. Its support for
multiple interfaces and compatibility with various MCU platforms
make it an excellent choice for developers looking for a reliable
display solution.
Customized Ribbon Cables/Flexible Printed Circuits (FPC): Tailor your cables to perfection by adjusting their length,
position, and pin arrangements, or adding other connectors. Obtain
a precisely designed cable solution to streamline and enhance the
safety of your connections |
Touchscreen Add-On Components: Enhance your user experience with capacitive or resistive
touchscreen technology. We can adjust the glass thickness or shape
of the touchscreen to ensure a perfect fit for your design. |
Interface Customization: Choose from various interface options or consult with our experts
to select the options that best suit your project. We can integrate
HI,USB, SPI, VGA, and other interfaces into your display to achieve
your design goals. |
Cover Glass: Equip your display with custom-cut cover glass to improve
durability. Choose from various thicknesses of cover glass and
undergo optical bonding to prevent moisture and debris. |
| project | Parameter Description | unit |
| TFT series | TFT SPI module | |
| Diagonal size | 4.0” | Inch |
| Resolution | 320 × RGB × 480 (TFT) | dots |
| Dimensions | 60.88(H)x94.57(V)x2.50 | mm |
| Effective area (AA) | 55.68(H)x 83.52(V) | mm |
| LCD type | Vertical screen TFT serial port module | |
| Display perspective | (U70/D60/L70/R70) | |
| Aspect ratio | 2:3 | |
| Backlight type | LED, white | |
| TFT driver IC | T.B.D | |
| Touch panel | Capacitive touch screen | |
| Surface | Glossy | |
| Brightness | 330 | cd/㎡ |
| Operating temperature | -20~+70 | °C |
| Storage temperature | -30~+80 | °C |
