▶ Model: TFT-H024B23QVIST4N12

▶ Type: TFT LCD

▶ Display content: 240x320

▶ Display inches: 2.4"

▶ Dimensions (mm): 42.72x58.56

▶ AA size (mm): 36.72x48.96

▶ Product application: handheld devices, small household appliances

▶ Viewing angle: IPS full viewing angle

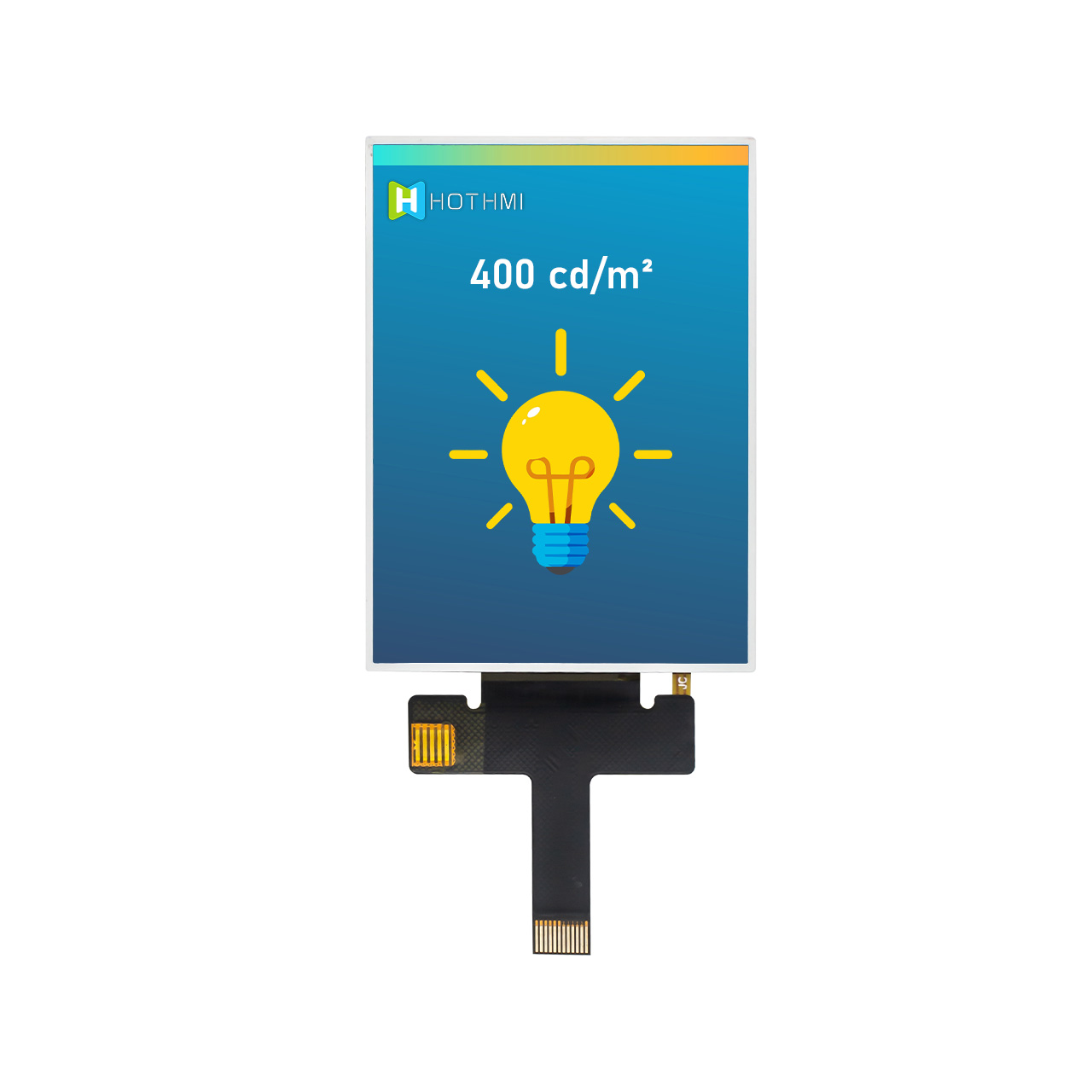

▶ Backlight type or brightness: white backlight 400cd/M2

▶ Connection method PIN number: FPC-12pin

▶ Interface method: SPI 4L

▶ Special instructions: Anti-static ESD 8KV

▶ Operating temperature: -30~+80℃

▶ Supply voltage: VCI=3.0～3.3V

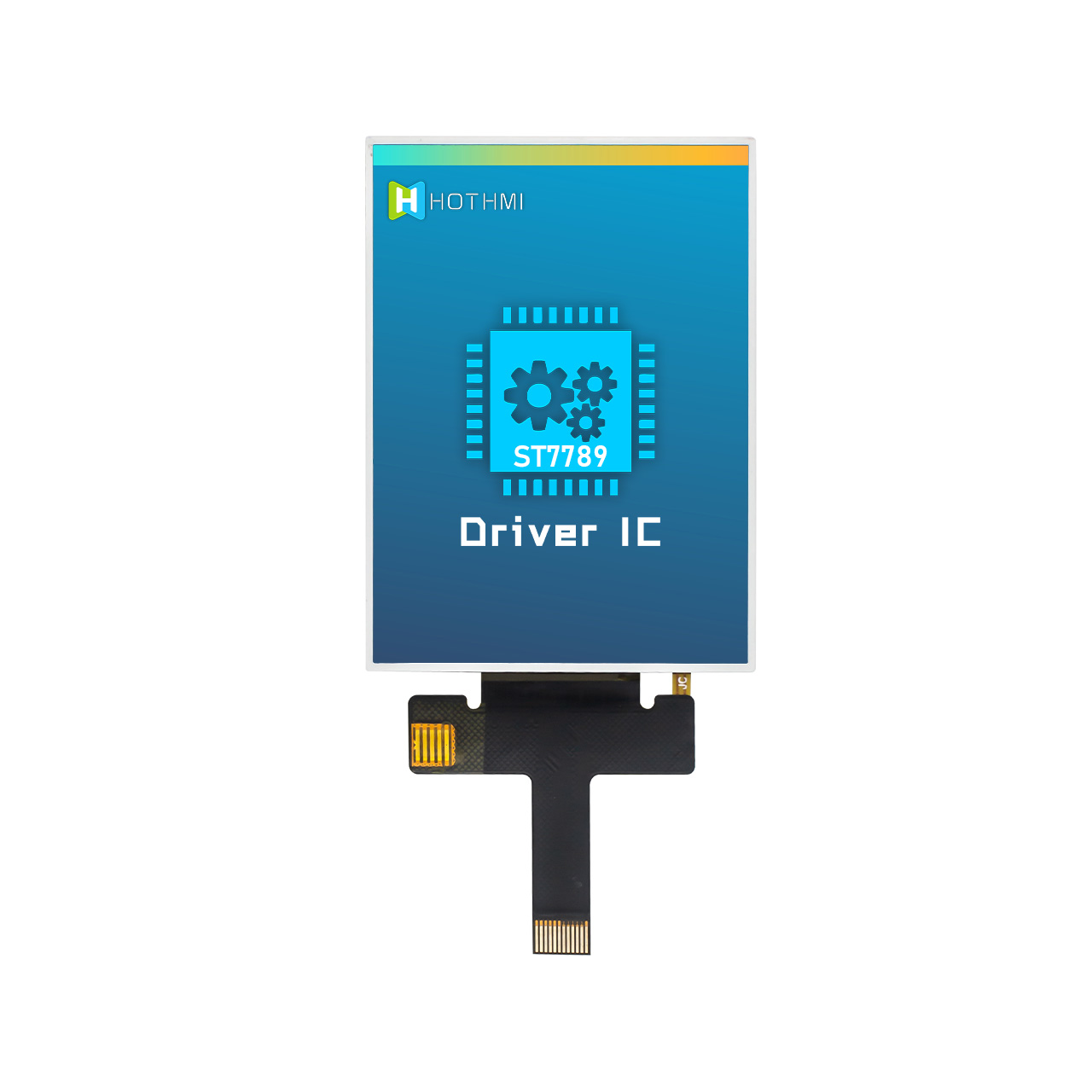

▶ Driver chip: ST7789<TFT>

Typical Applications:

Industrial Instruments: Used in devices requiring high-resolution displays.

Smart Devices: Ideal for wearable devices, handheld gadgets, and IoT devices.

Embedded Systems: Compatible with a wide range of microcontrollers and development boards.

Advantages:

High Picture Quality: Sharp and clear display with a resolution of 320x320.

Wide Viewing Angle: Ensures good visibility from different angles.

Flexible Interface Options: Supports both parallel and serial interfaces, making it versatile for different applications.

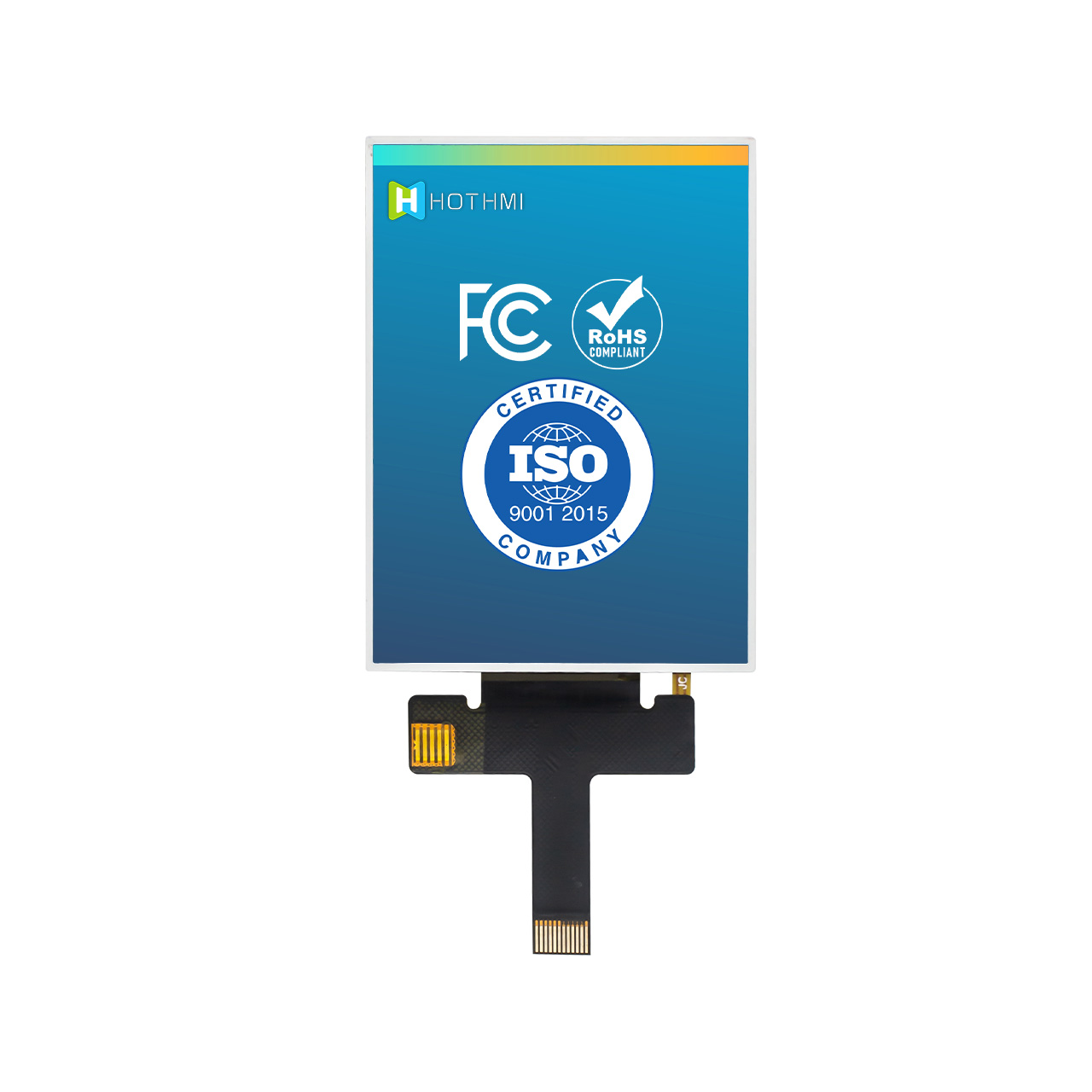

Environmental Compliance: Meets RoHS standards, ensuring it is environmentally friendly.

Pin Configuration and Interface:

The module supports multiple interface options, allowing it to be easily integrated into various systems. The specific pin configuration will depend on the interface mode selected (parallel or serial).

Development Support:

The module is compatible with a wide range of MCU platforms, making it easy to integrate into existing projects. It is particularly well-suited for use with popular development boards like Arduino, Raspberry Pi, and STM32.

Conclusion:

The TFT-H027A01HQINV4N40 is a versatile and high-quality TFT LCD module suitable for a wide range of applications. Its support for multiple interfaces and compatibility with various MCU platforms make it an excellent choice for developers looking for a reliable display solution.

If you need further assistance, tutorials, or customization options, feel free to contact the supplier for detailed support.

2.4-inch wide temperature color display / 240x320 resolution / 2.4-inch TFT LCD / 4-wire SPI interface / ST7789 controller

TFT-H024B23QVIST4N12 / 2.4-inch color display / 240x320 resolution / 2.4-inch TFT LCD / 4-wire SPI interface / ST7789 controller is a 2.4-inch TFT with a resolution of 240x320, normal brightness, and an operating temperature range of -30 ℃ ~ +80 ℃. The connector FPC is a soft cable type and requires a connector. Plug the FPC directly into the connector on the PCB for easy insertion or removal.

The IPS (In-Plane Switching) technology used in this monitor provides wide viewing angles and excellent color reproduction, so there is no distortion when viewing from all angles. The monitor has a contrast ratio of up to 800:1, capable of deep blacks and vivid colors. It also has a brightness of up to 400cd/m2
