Key Features:
▶ Model: TFT-H050A1SVIST4R40
▶ Type: TFT standard display
▶ Display pixels: 800x480
▶ Display inches: 120.7x75.8x4.5
▶ AA size (mm): 108.0x64.8
▶ Application: Instruments, portable electronic devices
▶ Viewing angle: full viewing angle (U80/D80/R80/L80)
▶ Backlight/brightness: 1000cd/m2
▶ Pin: FPC-40 pin
▶ Interface mode: RGB
▶ Special instructions: Anti-static ESD 8KV
▶ Operating temperature: -30~80℃
▶ Supply voltage: 3.3V
▶ Driver chip: ST7262
5.0-inch color high brightness resistive touch IPS TFT LCD/RGB
interface/800x480 full-viewing angle resistive TFT display/STM32/RK
series/ST7262
This standard 5.0 display TFT-H050A1SVIST4R40 has a resolution of
800x480 pixels, an IPS full-viewing angle display, and has a
high-quality effect no matter from which direction it is viewed,
with a brightness of 1000cd/m2. The compact size, 3.3V low voltage
power supply and impressive display quality make this display an
excellent choice for projects with resistive touch functions.
This 5.0-inch LCD display uses a 40PIN FPC soft cable connection to
provide a safe and reliable electrical connection. The connection
method of the FPC soft cable makes disassembly easier and easier to
operate. This TFT LCD display is powered by the SC7262 controller.
The controller optimizes the function of the display to ensure
smooth operation and accurate presentation of images and graphics.
Popular industries for this TFT size include the Internet of
Things, industrial automation, consumer electronics, test and
measurement, and handheld devices. Due to their compatibility with
STM32/RK, they are also very suitable for DIY or prototype
projects. The RGB interface enables fast and efficient
communication between the STM32/rk series, ensuring smooth data
transmission and real-time updates. Our displays are all RoHS
compliant and adhere to strict environmental and safety standards
Typical Applications:
Industrial Instruments: Used in devices requiring high-resolution
displays.
Smart Devices: Ideal for wearable devices, handheld gadgets, and
IoT devices.
Embedded Systems: Compatible with a wide range of microcontrollers
and development boards.
Advantages:
High Picture Quality: Sharp and clear display with a resolution of
320x320.
Wide Viewing Angle: Ensures good visibility from different angles.
Flexible Interface Options: Supports both parallel and serial
interfaces, making it versatile for different applications.
Environmental Compliance: Meets RoHS standards, ensuring it is
environmentally friendly.
Pin Configuration and Interface:
The module supports multiple interface options, allowing it to be
easily integrated into various systems. The specific pin
configuration will depend on the interface mode selected (parallel
or serial).
Development Support:
The module is compatible with a wide range of MCU platforms, making
it easy to integrate into existing projects. It is particularly
well-suited for use with popular development boards like Arduino,
Raspberry Pi, and STM32.
Conclusion:
The TFT-H027A01HQINV4N40 is a versatile and high-quality TFT LCD
module suitable for a wide range of applications. Its support for
multiple interfaces and compatibility with various MCU platforms
make it an excellent choice for developers looking for a reliable
display solution.

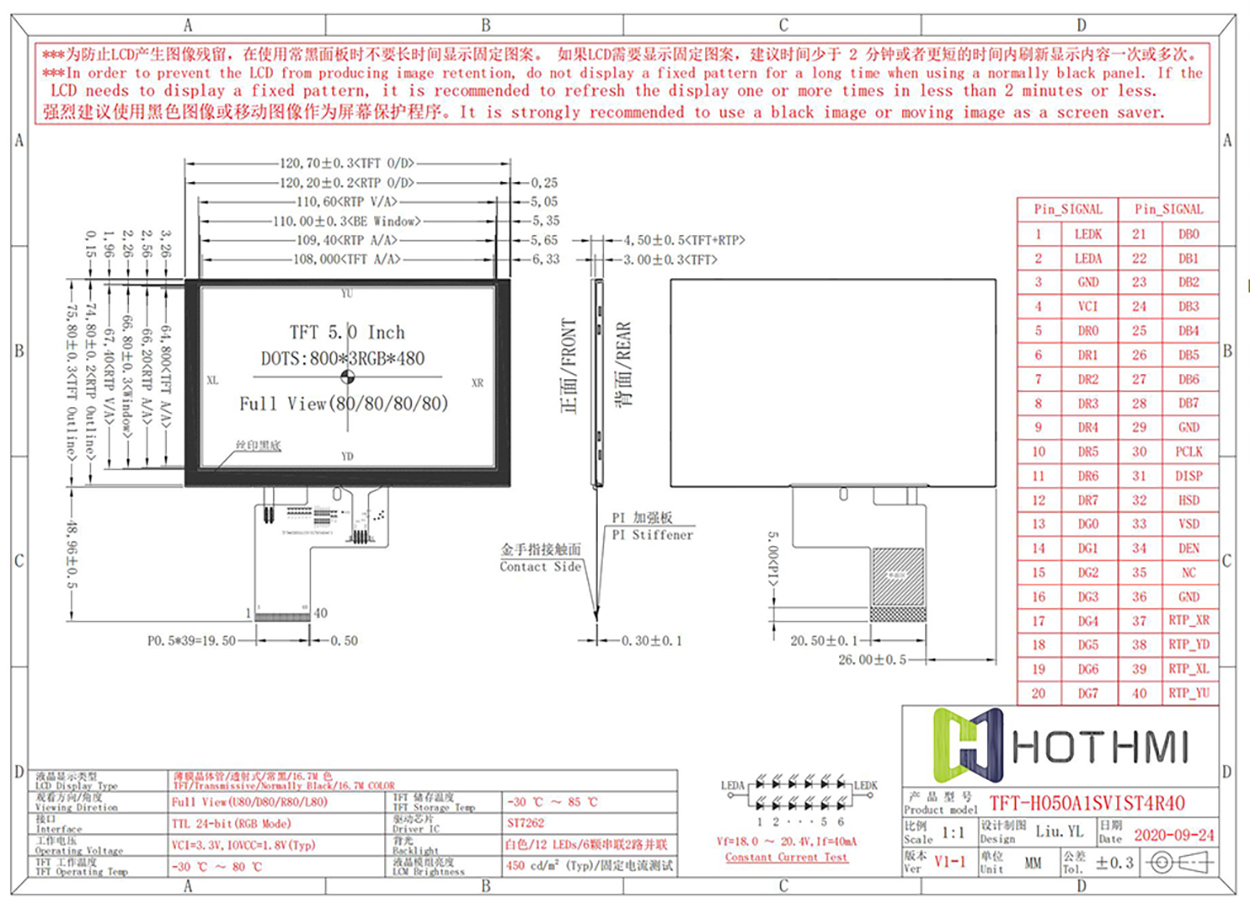

| ITEM | PARAMETER DESCRIPTION | UNIT |
| TFT series | TFT-H050A1SVIST4R40 | |
| Diagonal size | 5.0” | Inch |
| Resolution | 800x480 | Dot |
| Dimensions | 120.7x75.8x4.75 | mm |
| Active area (AA) | 108.0x64.8 | mm |
| LCD type | TFT LCD Display | mm |
| Display viewing angle | Full View(U80/D80/R80/L80) | |
| Aspect ratio | 3:2 | |
| Backlight type | LED white | |
| TFT driver IC | ST7262 | |
| Brightness | 1000 | cd/m2 |
| Operating temperature | -30~80℃ | ℃ |
| Storage temperature | -30~85℃ | ℃ |
