    1.6 inch round TFT LCD display/MIPI interface/400x400 IPS full viewing angle/wide temperature/optional touch screen

    Ask Lasest Price
    Brand Name : HOTHMI
    Model Number : TFT-H016A01ZGIST4N20
    Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram
    Supply Ability : 99999
    Delivery Time : 25 days
    • Product Details
    • Company Profile

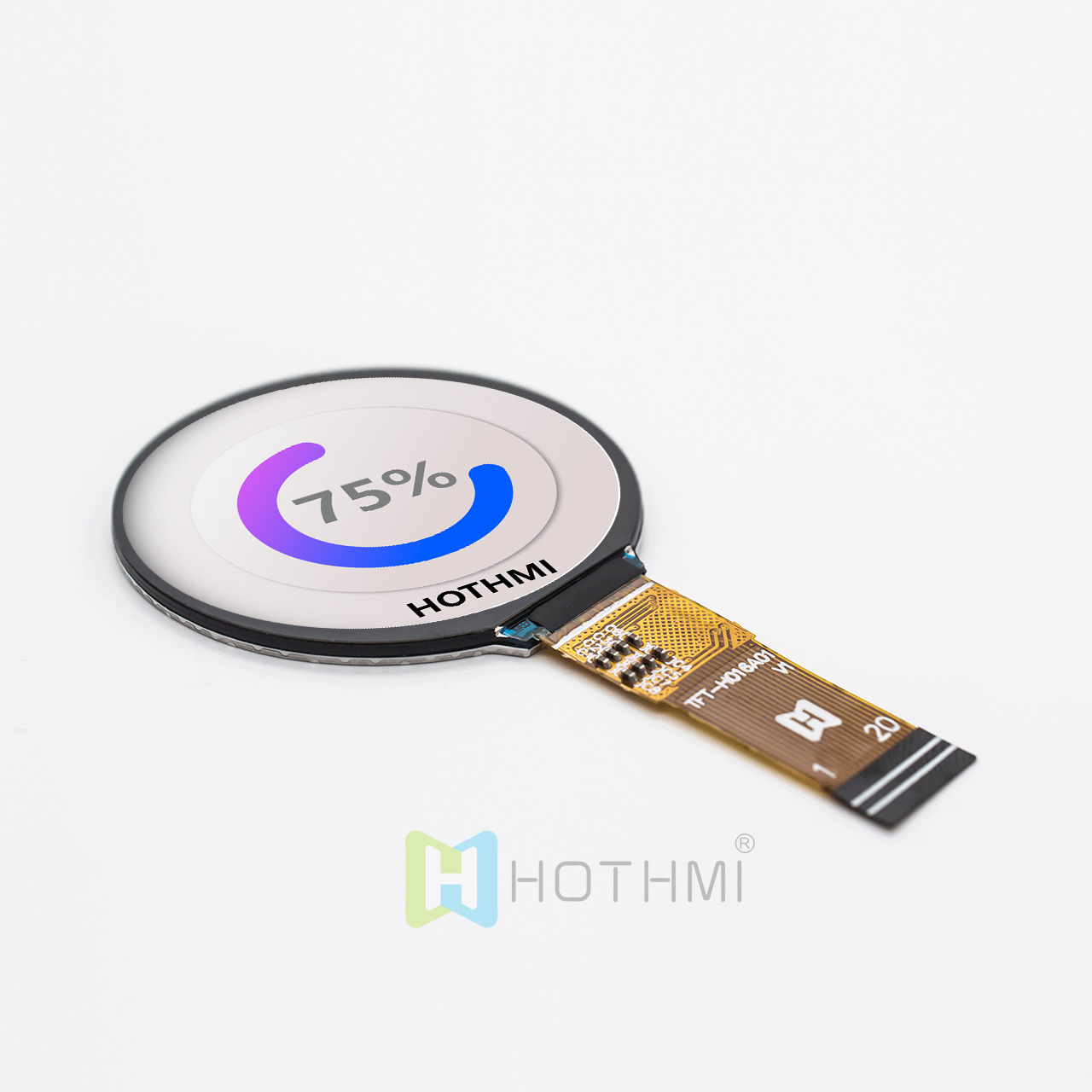

    1.6 inch round TFT LCD display/MIPI interface/400x400 IPS full viewing angle/wide temperature/optional touch screen

    Discover the Impressive TFT-H016A01ZGIST4N20 Display!

    Are you in search of a high - performance display solution? Look no further than the TFT - H016A01! Here are its outstanding features:

    Compact and Precise Design

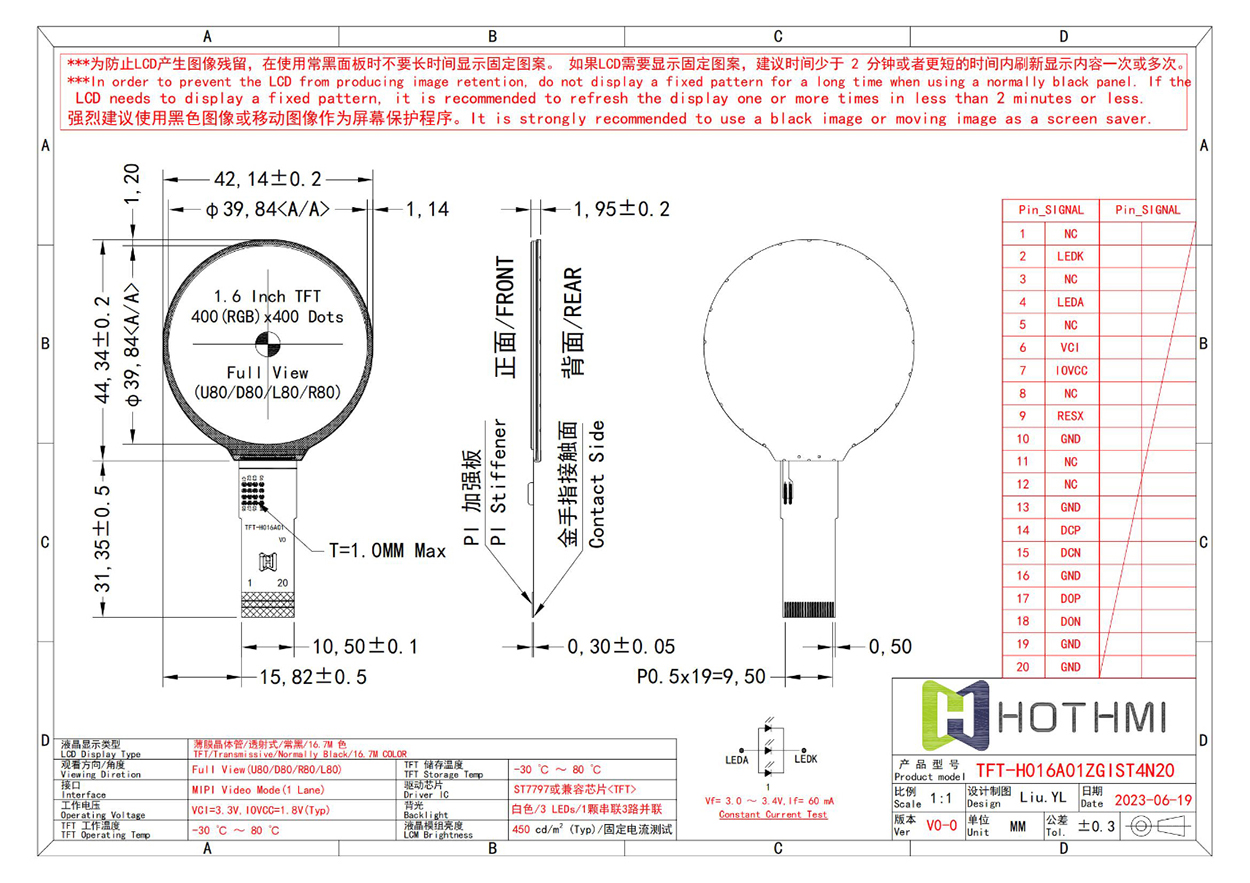

    With a maximum thickness of just T = 1.0MM, this 1.6 - Inch TFT display is incredibly thin, making it ideal for space - constrained applications. Its dimensions are carefully measured, for example, 44.34±0.2 in one aspect, ensuring a perfect fit in your devices. The φ39.84<A/A> on both the front and rear sides indicates a well - defined and consistent structure.

    Superb Visual Quality

    Boasting a resolution of 400(RGB)x400 Dots, it offers sharp and detailed visuals. Whether you're using it for industrial monitoring or other applications, the clarity is top - notch. The full - view design (U80/D80/L80/R80) provides a wide viewing angle, allowing you to view the screen clearly from various positions.

    Reliable Build

    The PI Stiffener adds strength and durability to the display. The gold - finger contact side, with dimensions like 31.35±0.5, ensures a stable and reliable connection. And with a tolerance of ±0.3 in most measurements, you can count on its precision manufacturing.

    Versatile Performance

    It has a wide operating temperature range, making it suitable for different environments. The storage temperature range is also well - defined, ensuring long - term usability. The backlight provides a brightness of 2 cd/m² (Typ) in fixed - current testing, offering good visibility even in low - light conditions.

    The TFT - H016A01 is truly a remarkable display option. Its combination of design, performance, and reliability makes it a great choice for a variety of applications. Don't miss out on this excellent display solution!


    parameterParameter Descriptionunit
    TFT LCDStandard TFT
    Diagonal inches1.6 "Inch
    resolution400 x RGB x 400 (TFT)dots
    Dimensions42.14x44.34x1.95mm
    Size (AA) area39.84x39.84mm
    LCD specificationsTFT, White, transparent
    Display perspective80/80/80/80 (IPS)
    aspect ratio1: 1
    Backlight specificationsLED, white
    TFT driver chipST7797
    Touch glass typenothing
    surfaceAnti-Glare
    Display brightnessfour hundred and fiftycd/
    Operating temperature-30~+80°C
    Storage temperature-30~+80°C
