Discover the Marvel of TFT - H013A2QQIST3N10 TFT LCD Module!
Are you on the hunt for a top - notch TFT LCD module that combines
high - performance, reliability, and versatility? Look no further
than the TFT - H013A2QQIST3N10 from Shenzhen Hot Display Technology
Co.,Ltd! Here are its amazing selling points:

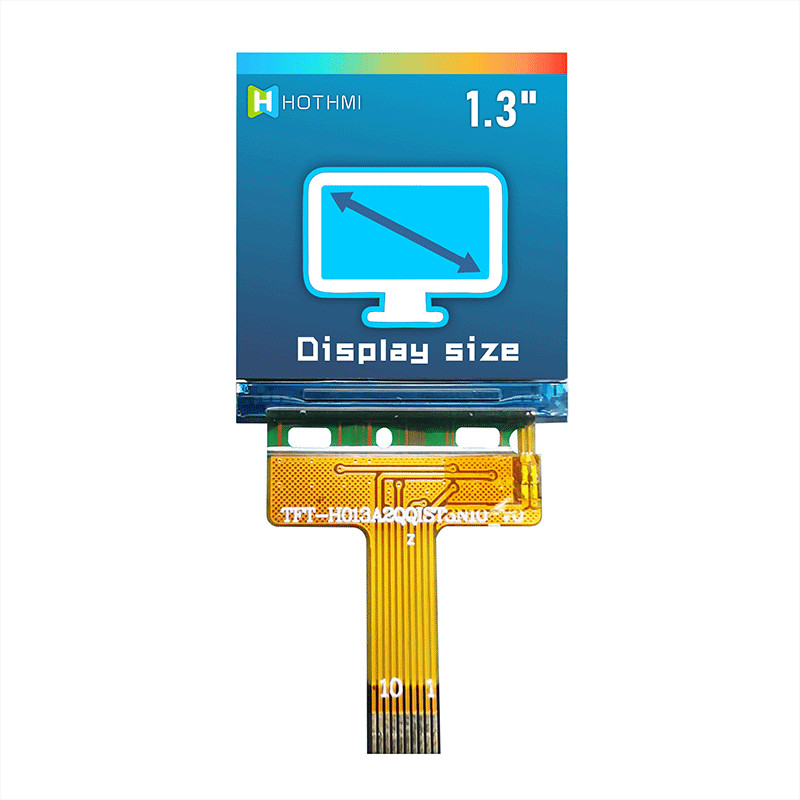

1.Compact and Precise Design: With a display size of 1.3", it has a pixel resolution of
240(H)x3(RGB)*240(V), offering and vivid visuals. The active area
measures 23.40(H)×23.40(V) mm, and the overall outline dimension is
26.00(H)×29.15×1.95(V) mm, making it perfect for space -
constrained applications.
2.Flexible Viewing Angle: The viewing direction is Free O'clock, allowing users to view the
screen from various angles without compromising on image quality.
Whether you're looking at it from the side, top, or bottom, you'll
enjoy a clear and consistent visual experience.
3.Efficient Interface: Equipped with an SPI 4L interface, it ensures fast and stable
data transfer. This makes it easy to integrate with different
microcontrollers, enabling seamless communication and quick
response times.

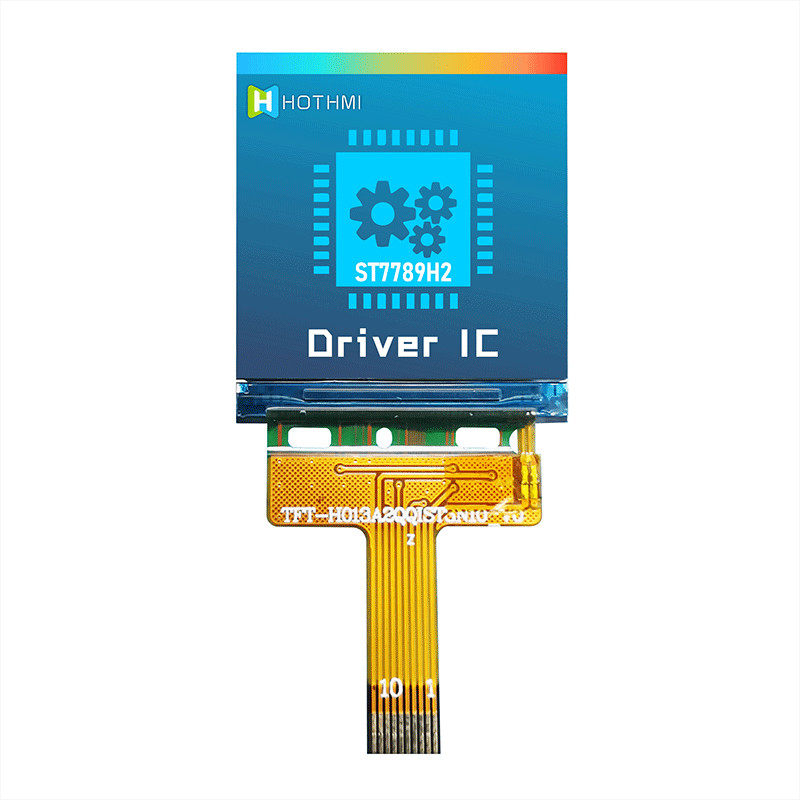

4.Reliable Driver IC: Powered by the ST7789H2 driver IC, the module operates at a
stable VCI of 2.8V. This combination guarantees smooth display
performance, accurate color representation, and efficient power
management.
5.Bright and Uniform Backlight: The white LED backlight provides a luminance of 350 cd/㎡ (Typ)
when the forward current is 40mA. It ensures excellent visibility
even in low - light environments, and the uniform lighting across
the screen enhances the overall viewing experience.
6.Wide Operating Temperature Range: It can operate flawlessly in the temperature range of - 20~70℃
and be stored in - 30~80℃. This wide temperature tolerance makes it
suitable for a variety of applications, from outdoor devices to
industrial equipment.
7.Impressive Optical Performance:
◦High contrast ratio of 800 (Typ) at Θ = 0°, ensuring clear
differentiation between light and dark areas for vivid images.
◦A color gamut of 50% (Typ) offers a rich and vibrant color palette,
making colors look more realistic.
◦Fast response time of 30 ms (Typ) (Tr + Tf) ensures smooth
transitions and reduces motion blur, ideal for applications with
dynamic content.
8.Rigorous Reliability Testing:
◦Passed multiple reliability tests such as high - temperature
operation (60 ℃; 120hrs), high - temperature storage (70 ℃;
120hrs), and thermal shock (-30 ℃ (0.5hr) ~ 80 ℃ (0.5hr); 100
Cycles). You can trust its long - term performance and durability.
◦Withstood electrostatic discharge (ESD) tests (Contact ± 4KV, Air:
± 8KV), ensuring protection against static electricity during
handling and operation.
9.User - friendly Initialization and Modes: Comes with easy - to - use initialization code. It also has sleep
- in and sleep - out modes, which not only save power but also
extend the lifespan of the module.
10.Simple Handling Precautions: Although it requires careful handling due to its glass
construction, the provided handling precautions are easy to follow.
For example, avoiding strong mechanical impact and static charge,
which helps users ensure the module's longevity.
General Feature:
| Item | Standard Value | Unit |
| Display Size | 1.3” | -- |
| Number of Pixels | 240(H)x3(RGB)*240(V) | -- |
| Active Area | 23.40(H) *23.40(V) | mm |
| Outline Dimension | 26.00(H) ×29.15× 1.95(V) | mm |
| Viewing Direction | Free O'clock | - |
| Interface | SPI 4L | - |
| Driver IC | ST7789H2 | - |
| Driver Condition | VCI=2.8V | V |
| Backlight | White LED | - |
| Touch Panel | No Touch Panel | - |
| Operation Temperature | -20~70 | ℃ |
| Storage Temperature | -30~80 | ℃ |
Pin Description
| Pin NO. | Symbol | Description |
| 1 | LED-A | LED Anode(+3.2V/100mA) |
| 2 | VCI | Analog Power(2.65 ~ 3.3 V) |
| 3 | CS | Chip select input pin (“Low” enable). |
| 4 | RESX | Reset Pin |
| 5 | SCK | Serial interface clock. |
| 6 | SDA | SPI interface input pin. |
| 7 | D/CX | Display data/command selection pin. |
8
|
TE | Tearing effect signal is used to synchronize MCU to frame
memorywriting.
If not used, please let this pin open |
| 9 | LED-K | LED Cathode |
| 10 | GND | Ground |
TFT-H013A2QQIST3N10.pdf
