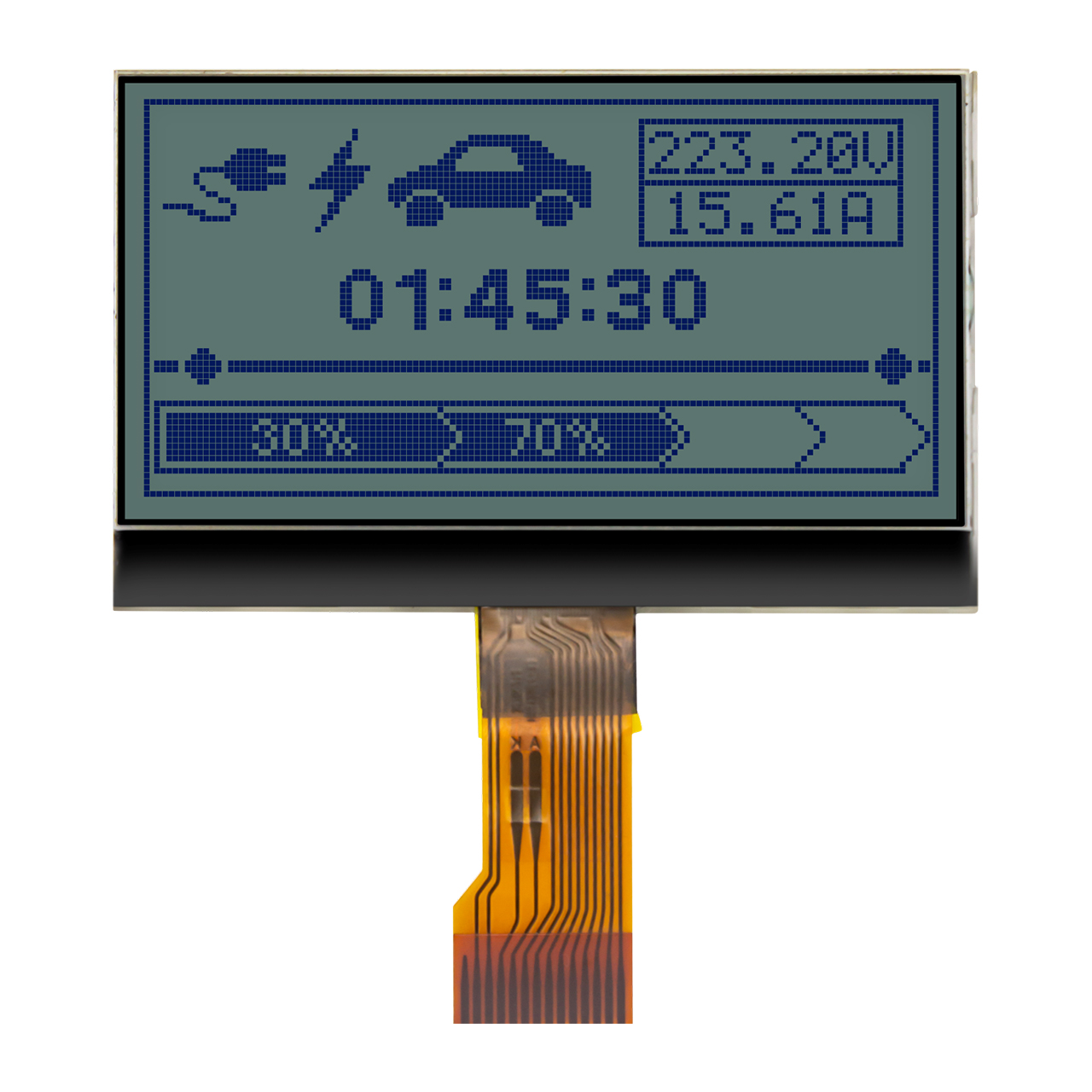

COG LCD Display | 128x64 STN+YG LCD Panel
Premium Monochrome COG LCD Module - HTG12864-82 by HOTLCD
Looking for a reliable, high-performance display solution? Discover
our HTG12864-82 monochrome COG LCD module – designed to elevate
your projects with precision and durability!
Key Features & Benefits
Sharp Visual Performance
128x64 pixel resolution for crisp text and graphics.
FSTN, positive, transflective display mode ensures clear visibility
in both bright and low-light environments.
12H viewing angle for versatile installation flexibility.
Efficient & Versatile Design
Compact size: 40.8x33.1x4.15mm – perfect for space-constrained
applications.
White LED backlight for enhanced readability, even in dim
conditions.
1/64 duty, 1/9 bias driving method ensures low power consumption
and stable operation.
Robust Mechanical & Electrical Specs
Wide operating temperature range: -20°C to 70°C, ideal for
industrial and consumer use.
Durable COG (Chip-on-Glass) construction for reliable performance
and long lifespan.
Multiple interface options: Supports parallel (8080/6800 modes) and
4-line SPI for easy integration.
User-Friendly & Safe Handling
Simple reset mechanism via /RES pin for quick initialization.
Static charge protection and clear mounting guidelines for
hassle-free assembly.
Strict inspection standards ensure minimal defects (e.g., ≤3 minor
spots/line defects).
Applications
Perfect for:
Industrial control panels
Medical devices
Consumer electronics (e.g., smart meters, POS systems)
Automotive displays
Why Choose HOTLCD?
Professional expertise: Decades of experience in display solutions.
Quality assurance: RoHS compliant and built to withstand harsh
environments.
Custom support: Tailored solutions for unique project requirements.
This COG LCD Display is white pixels on a blue background LCD.This
transflective LCD display is designed to provide optimal visibility
in a variety of lighting conditions in many different environments.
In bright sunlight, the display uses its reflective properties to
reflect the image back to the viewer, and in dark environments, the
backlight of the product increases the brightness of the display
and makes the screen easy to read, providing high contrast and
showing clear graphics to the viewer. This advanced display
technology ensures that the display is always easy to read
regardless of the lighting conditions.
This COG LCD display module is created with a built-in negative
voltage and comes with a built-in ST7567 controller. It is also
fully compatible with Arduino/C8051 and can be seamlessly connected
with other electronic systems for a variety of applications. This
model is designed to withstand harsh operating conditions and will
not function properly when used in a temperature range of -20 to 70
degrees Celsius. COG LCD Display has an optimal viewing angle of
12:00, an operating voltage of 3.3V, and is RoHS compliant.
| parameter | Specification content | unit |
| Name | HTG12864-82-11W-14C10-V02 | |
| Graphic display | 128 × 64 | dots |
| Dimensions | 71.4x44.7x6.2 | mm |
| VA size | 66.7x35 | mm |
| AA size | 63.98x31.98 | mm |
| Pixel pitch | 0.5x0.5 | mm |
| Driver chip | ST7567 | |
| Applied voltage | 5.0V | V |
| Backlight illumination | white | |
| Display mode | STN(+) | |
| Drive mode | 1/64 duty cycle | |
| Product type | COG LCD Display module | |
| Polarizer type | Transflective | |
