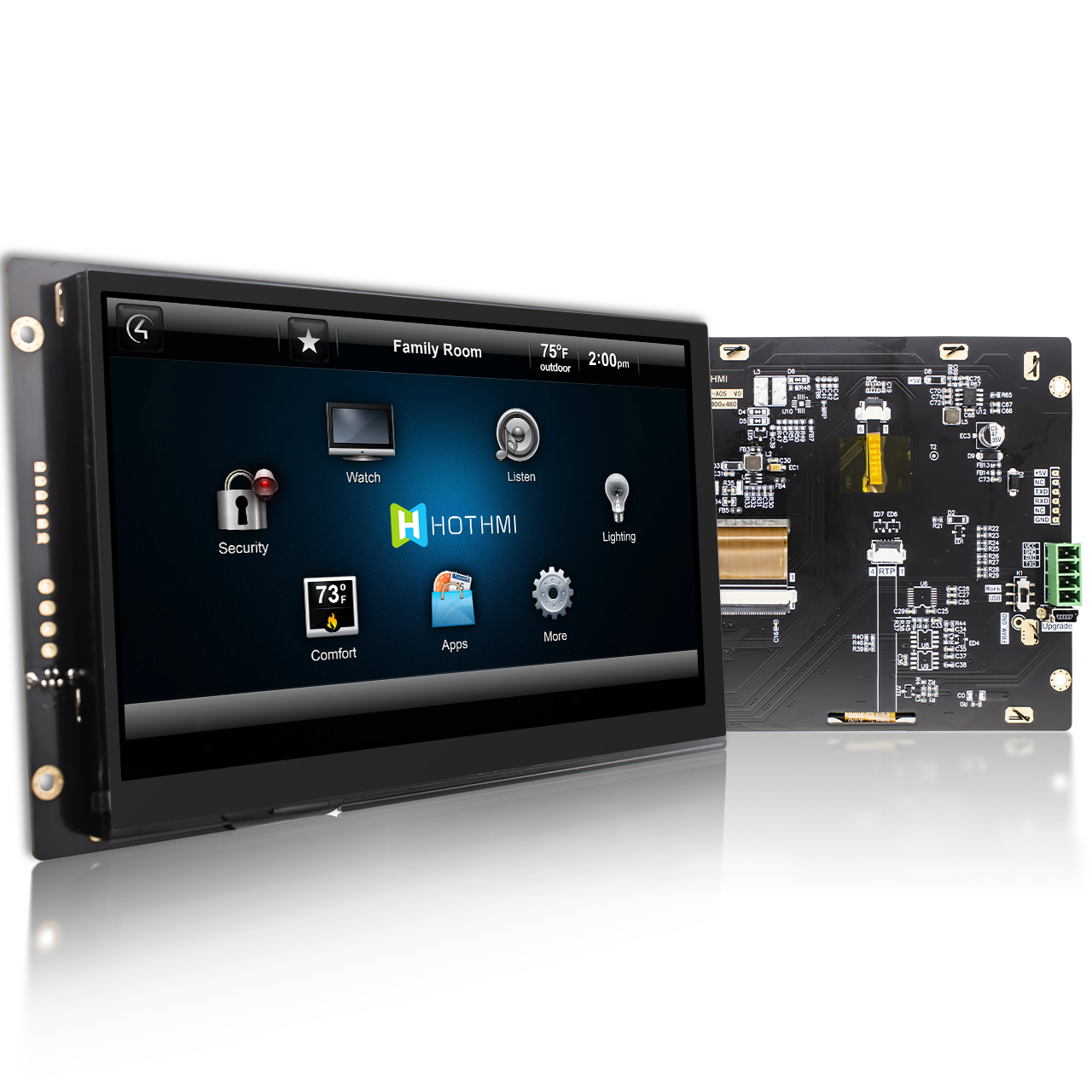

Unveil the HTM - H070A16 - UART - A05 Display Module: Your Ultimate
Visual Solution!
Key Features That Wow:

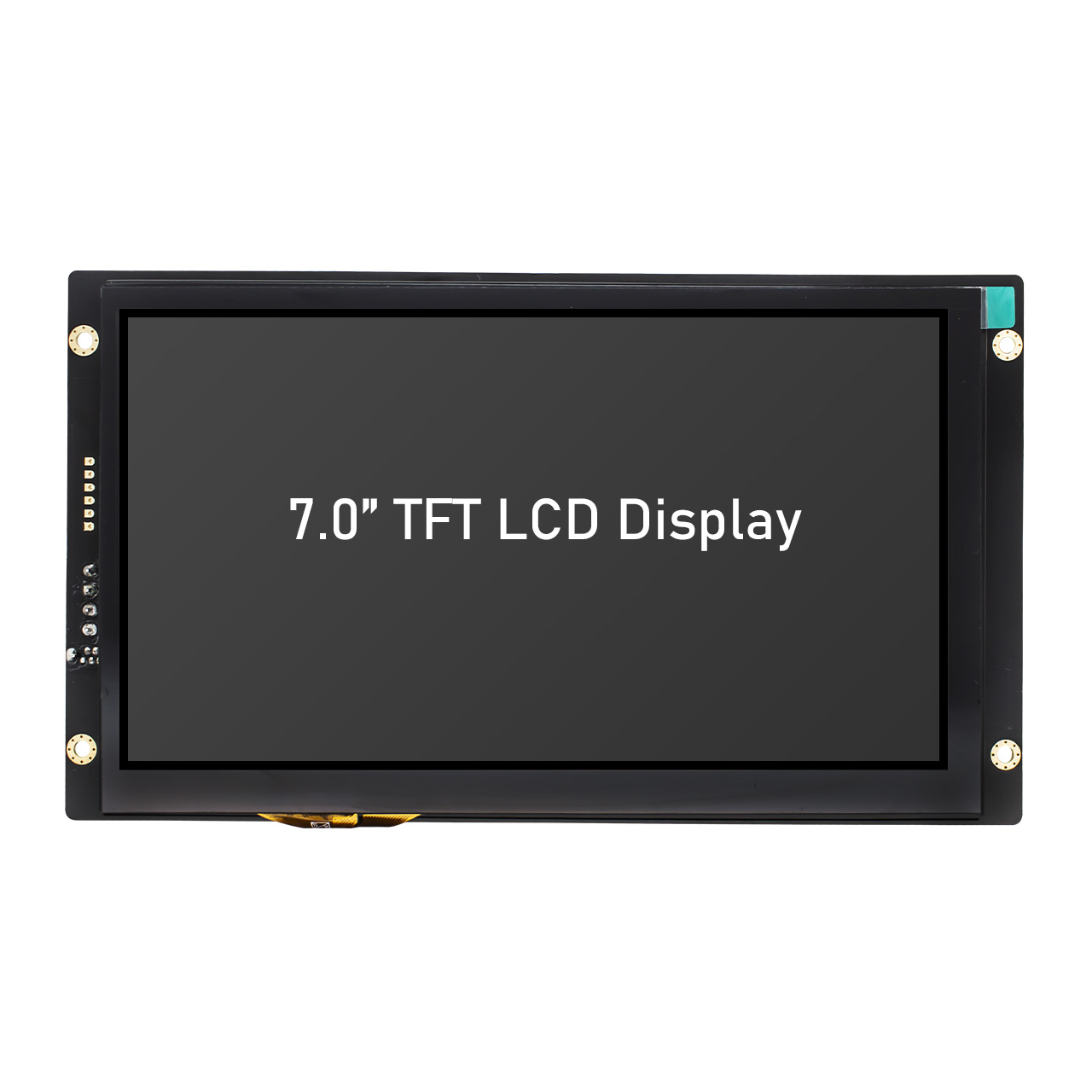

Crisp 7.0 - Inch TFT Display
- Stunning 800(RGB)×480 resolution delivers vivid visuals and
details for any application.
Precision Engineering & Durability
- Compact design with meticulous dimensions (e.g., 18.11mm height,
180.05±0.2mm length) for seamless integration.
- Robust build with tight tolerances (±0.3mm) ensures reliability
in diverse environments.
Flexible Connectivity Options
- Dual Interface Ports:
- 3.81mm Pitch (4 - pin): Supports VDD, GND, RXD, TXD for standard
communication.
- 2.54mm Pitch (6 - pin): Includes +5V, TXD, RXD, and GND for
versatile power/data setups.
- Mini - B USB port for easy plug - and - play functionality.
Optimal Performance Specs
- Wide TFT operating temperature range (details available in specs)
for reliable use in harsh conditions.
- High - quality components (e.g., SCK, SDO, LED indicators) ensure
stable performance and quick diagnostics.
Versatile Applications
- Ideal for industrial control panels, medical devices, IoT
interfaces, and more.
- Front/back labeling and 6 O'Clock orientation design simplify
installation and user experience.
Why Choose HTM - H070A16 - UART - A05?
Engineered for precision, durability, and ease of use, this module
combines high - resolution display with flexible connectivity,
making it the perfect choice for developers and engineers seeking
reliable visual solutions.
Ready to Elevate Your Project?
Contact us today for datasheets and customization options!
| ITEM | PARAMETER DESCRIPTION | UNIT |
| TFT series | HTM-H070A16-UART-A05 | |
| Diagonal size | 7.0” | Inch |
| Resolution | 800x480 | Dot |
| Dimensions | 166.50x108.05 | mm |
| Active area (AA) | 153.84x85.63 | mm |
| LCD type | 7.0” TFT Module | mm |
| Display viewing angle | TN | |
| Aspect ratio | 2:3 | |
| Backlight type | LED white | |
| TFT driver IC | RS232 | |
| Brightness | 500 | cd/m2 |
| Operating temperature | -20~70℃ | ℃ |
| Storage temperature | -30~80℃ | ℃ |
